JDAQCHSM Class Reference

DAQ state machine interface. More...

#include <JDAQCHSM.hh>

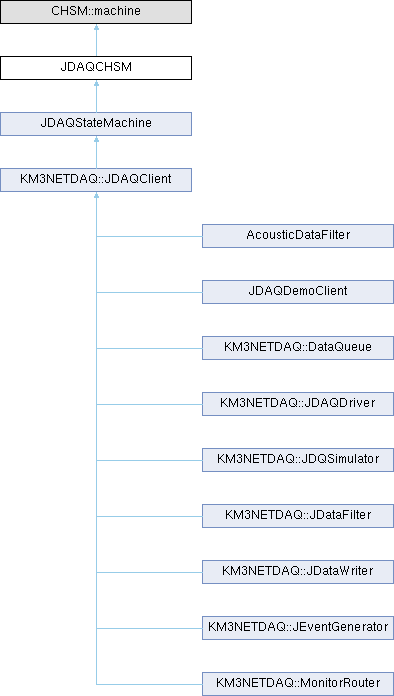

Inheritance diagram for JDAQCHSM:

Classes
class	JDAQState
	DAQ state class. More...

Public Member Functions
	JDAQCHSM (CHSM_MACHINE_ARGS, const std::string &__name)
	Constructor.
const std::string &	getName () const
	Get name of state machine.
int	getDetectorID () const
	Get detector identifier.
int	getRunNumber () const
	Get run number.
virtual void	actionEnter ()
	Interface methods for actions corresponding to state transitions.
virtual void	actionExit ()
virtual void	actionInit (int, const char *)
virtual void	actionConfigure (int, const char *)
virtual void	actionStart (int, const char *)
virtual void	actionPause (int, const char *)
virtual void	actionContinue (int, const char *)
virtual void	actionStop (int, const char *)
virtual void	actionReset (int, const char *)
virtual void	actionQuit (int, const char *)
virtual void	actionCheck (int, const char *)
virtual void	actionInput (int, const char *)
virtual void	actionError ()
virtual void	actionRecover (int, const char *)

Protected Types
typedef void(JDAQCHSM::*)	action(int, const char *)
	Type definition of action method.

Protected Member Functions
virtual void	enterState (const CHSM::state &state, const CHSM::event &event)=0
	Action when entering state.
virtual void	execute (action __action, const CHSM::event &__event)=0
	The method to execute the action.

Protected Attributes
std::string	name
int	detector_id
int	run_number

Detailed Description

DAQ state machine interface.

Definition at line 23 of file JDAQCHSM.hh.

Member Typedef Documentation

action

void(JDAQCHSM::*) JDAQCHSM::action(int, const char *)

protected

Type definition of action method.

Definition at line 152 of file JDAQCHSM.hh.

Constructor & Destructor Documentation

JDAQCHSM()

JDAQCHSM::JDAQCHSM ( CHSM_MACHINE_ARGS , const std::string & __name )

inline

Constructor.

Parameters

__name

name of state machine

Definition at line 76 of file JDAQCHSM.hh.

                                                       :
    CHSM::machine(CHSM_MACHINE_INIT),
    name       (__name),
    detector_id(-1),
    run_number (-1)
  {}

Member Function Documentation

getName()

const std::string & JDAQCHSM::getName ( ) const

inline

Get name of state machine.

Returns

name

Definition at line 89 of file JDAQCHSM.hh.

  {
    return name;
  }

getDetectorID()

int JDAQCHSM::getDetectorID ( ) const

inline

Get detector identifier.

Returns

detector identifier.

Definition at line 100 of file JDAQCHSM.hh.

  {
    return detector_id;
  }

getRunNumber()

int JDAQCHSM::getRunNumber ( ) const

inline

Get run number.

Returns

run number

Definition at line 111 of file JDAQCHSM.hh.

  {
    return run_number;
  }

actionEnter()

virtual void JDAQCHSM::actionEnter ( )

inlinevirtual

Interface methods for actions corresponding to state transitions.

Reimplemented in AcousticDataFilter, JDAQDemoClient, KM3NETDAQ::DataQueue, KM3NETDAQ::JDataFilter, and KM3NETDAQ::MonitorRouter.

Definition at line 120 of file JDAQCHSM.hh.

{}

actionExit()

virtual void JDAQCHSM::actionExit ( )

inlinevirtual

Reimplemented in AcousticDataFilter, JDAQDemoClient, KM3NETDAQ::DataQueue, KM3NETDAQ::JDAQDriver, KM3NETDAQ::JDataFilter, and KM3NETDAQ::MonitorRouter.

Definition at line 121 of file JDAQCHSM.hh.

{}

actionInit()

virtual void JDAQCHSM::actionInit ( int , const char *  )

inlinevirtual

Reimplemented in AcousticDataFilter, JDAQDemoClient, KM3NETDAQ::DataQueue, KM3NETDAQ::JDataFilter, KM3NETDAQ::JDataWriter, and KM3NETDAQ::MonitorRouter.

Definition at line 123 of file JDAQCHSM.hh.

{}

actionConfigure()

virtual void JDAQCHSM::actionConfigure ( int , const char *  )

inlinevirtual

Reimplemented in AcousticDataFilter, JDAQDemoClient, KM3NETDAQ::DataQueue, KM3NETDAQ::JDataFilter, KM3NETDAQ::JDataWriter, KM3NETDAQ::JDQSimulator, KM3NETDAQ::JEventGenerator, and KM3NETDAQ::MonitorRouter.

Definition at line 124 of file JDAQCHSM.hh.

{}

actionStart()

virtual void JDAQCHSM::actionStart ( int , const char *  )

inlinevirtual

Reimplemented in AcousticDataFilter, JDAQDemoClient, KM3NETDAQ::DataQueue, KM3NETDAQ::JDAQDriver, KM3NETDAQ::JDataFilter, KM3NETDAQ::JDataWriter, KM3NETDAQ::JDQSimulator, KM3NETDAQ::JEventGenerator, and KM3NETDAQ::MonitorRouter.

Definition at line 125 of file JDAQCHSM.hh.

{}

actionPause()

virtual void JDAQCHSM::actionPause ( int , const char *  )

inlinevirtual

Reimplemented in AcousticDataFilter, JDAQDemoClient, KM3NETDAQ::DataQueue, KM3NETDAQ::JDataFilter, and KM3NETDAQ::MonitorRouter.

Definition at line 126 of file JDAQCHSM.hh.

{}

actionContinue()

virtual void JDAQCHSM::actionContinue ( int , const char *  )

inlinevirtual

Reimplemented in AcousticDataFilter, JDAQDemoClient, KM3NETDAQ::DataQueue, KM3NETDAQ::JDataFilter, and KM3NETDAQ::MonitorRouter.

Definition at line 127 of file JDAQCHSM.hh.

{}

actionStop()

virtual void JDAQCHSM::actionStop ( int , const char *  )

inlinevirtual

Reimplemented in AcousticDataFilter, JDAQDemoClient, KM3NETDAQ::DataQueue, KM3NETDAQ::JDAQDriver, KM3NETDAQ::JDataFilter, KM3NETDAQ::JDataWriter, KM3NETDAQ::JDQSimulator, KM3NETDAQ::JEventGenerator, and KM3NETDAQ::MonitorRouter.

Definition at line 128 of file JDAQCHSM.hh.

{}

actionReset()

virtual void JDAQCHSM::actionReset ( int , const char *  )

inlinevirtual

Reimplemented in AcousticDataFilter, JDAQDemoClient, KM3NETDAQ::DataQueue, KM3NETDAQ::JDataFilter, KM3NETDAQ::JDataWriter, KM3NETDAQ::JDQSimulator, KM3NETDAQ::JEventGenerator, and KM3NETDAQ::MonitorRouter.

Definition at line 129 of file JDAQCHSM.hh.

{}

actionQuit()

virtual void JDAQCHSM::actionQuit ( int , const char *  )

inlinevirtual

Reimplemented in AcousticDataFilter, JDAQDemoClient, KM3NETDAQ::DataQueue, KM3NETDAQ::JDataFilter, KM3NETDAQ::JDataWriter, KM3NETDAQ::JDQSimulator, KM3NETDAQ::JEventGenerator, and KM3NETDAQ::MonitorRouter.

Definition at line 130 of file JDAQCHSM.hh.

{}

actionCheck()

virtual void JDAQCHSM::actionCheck ( int , const char *  )

inlinevirtual

Reimplemented in KM3NETDAQ::JDAQClient.

Definition at line 132 of file JDAQCHSM.hh.

{}

actionInput()

virtual void JDAQCHSM::actionInput ( int , const char *  )

inlinevirtual

Reimplemented in KM3NETDAQ::DataQueue, and KM3NETDAQ::JDAQClient.

Definition at line 133 of file JDAQCHSM.hh.

{}

actionError()

virtual void JDAQCHSM::actionError ( )

inlinevirtual

Definition at line 135 of file JDAQCHSM.hh.

{}

actionRecover()

virtual void JDAQCHSM::actionRecover ( int , const char *  )

inlinevirtual

Definition at line 136 of file JDAQCHSM.hh.

{}

enterState()

virtual void JDAQCHSM::enterState ( const CHSM::state & state, const CHSM::event & event )

protectedpure virtual

Action when entering state.

Parameters

state	entered state
event	event that triggered transition

Implemented in KM3NETDAQ::JDAQClient, and KM3NETDAQ::JDAQDriver.

execute()

virtual void JDAQCHSM::execute ( action __action, const CHSM::event & __event )

protectedpure virtual

The method to execute the action.

This method shall be implemented in the derived class.

Parameters

__action	pointer to action method
__event	event that triggered the action

Implemented in KM3NETDAQ::JDAQClient.

Member Data Documentation

name

std::string JDAQCHSM::name

protected

Definition at line 165 of file JDAQCHSM.hh.

detector_id

int JDAQCHSM::detector_id

protected

Definition at line 166 of file JDAQCHSM.hh.

run_number

int JDAQCHSM::run_number

protected

Definition at line 167 of file JDAQCHSM.hh.

---

The documentation for this class was generated from the following file:

• JDAQCHSM.hh
