JAANET::JEvtWeightFactorTriggerEfficiencyRatio Struct Reference

Implementation of reweighting factor for trigger efficiency ratios. More...

#include <JEvtWeightFactorTriggerEfficiencyRatio.hh>

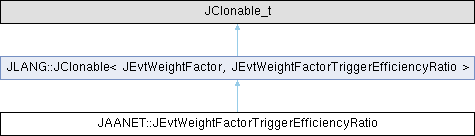

Inheritance diagram for JAANET::JEvtWeightFactorTriggerEfficiencyRatio:

Classes
struct	JEvtWeightFactorTriggerEfficiencyRatioHelper
	Auxiliary class for I/O of trigger efficiency ratio factor. More...

Public Types
enum	JTriggerEfficiencyRatioOption {   ENERGY_INITIAL_STATE , ENERGY_NEUTRINO , EVIS , EVIS_LEADING_LEPTON_CONTR ,   EVIS_HADRONIC_CONTR , NUMBER_OF_OPTIONS }
	Indices of options for calculating trigger efficiency ratios. More...
typedef JRange< double >	JRange_t
typedef JClonable< JClonable_t >::clone_type	clone_type

Public Member Functions
	JEvtWeightFactorTriggerEfficiencyRatio ()
	Default constructor.
	JEvtWeightFactorTriggerEfficiencyRatio (const JRootObjectID &objectID, const JTriggerEfficiencyRatioOption option, const double ratio, const JRange_t &range, const bool logE, const JCylinder3D &fiducialVolume)
	Constructor.
	JEvtWeightFactorTriggerEfficiencyRatio (const JEvtWeightFactorTriggerEfficiencyRatio &factor)
	Copy constructor.
void	configure ()
	Configure trigger efficiency ratio factor.
const TH1 &	getHistogram () const
	Retrieve trigger efficiency histogram.
JCylinder3D	getFiducialVolume () const
	Retrieve fiducial volume.
void	setFiducialVolume (const JCylinder3D &fiducialVolume)
	Set fiducial volume.
bool	is_valid () const override final
	Check if this trigger efficiency ratio weight factor is valid.
double	interpolate (const double x) const
	Perform linear inter- or extrapolation of trigger efficiency for given abscissa value.
double	getTriggerEfficiencyRatio (const double x1, const double x2) const
	Get trigger efficiency ratio based on a scaling of the initial state energy.
double	getTriggerEfficiencyRatio1 (const double E0) const
	Get trigger efficiency ratio based on a scaling of the initial state energy.
double	getTriggerEfficiencyRatio1 (const Evt &event) const
	Get trigger efficiency ratio based on a scaling of the initial state energy.
double	getTriggerEfficiencyRatio2 (const double Enu) const
	Get trigger efficiency ratio based on a scaling of the primary neutrino energy.
double	getTriggerEfficiencyRatio2 (const Evt &event) const
	Get trigger efficiency ratio based on a scaling of the primary neutrino energy.
double	getTriggerEfficiencyRatio3 (const double Evis) const
	Get trigger efficiency ratio based on a scaling of the total visible energy.
double	getTriggerEfficiencyRatio3 (const Evt &event) const
	Get trigger efficiency ratio based on a scaling of the total visible energy.
double	getTriggerEfficiencyRatio4 (const double Evis, const double EvisLL) const
	Get trigger efficiency ratio based on a scaling of the leading leptonic contribution to the total visible energy.
double	getTriggerEfficiencyRatio4 (const Evt &event) const
	Get trigger efficiency ratio based on a scaling of the leading leptonic contribution to the total visible energy.
double	getTriggerEfficiencyRatio5 (const double Evis, const double EvisLL) const
	Get trigger efficiency ratio based on a scaling of the hadronic contribution to the total visible energy.
double	getTriggerEfficiencyRatio5 (const Evt &event) const
	Get trigger efficiency ratio based on a scaling of the hadronic contribution to the total visible energy.
double	getFactor (const Evt &evt) const override final
	Get weighting factor for given event.
JProperties	getProperties (const JEquationParameters &eqpars=JEvtWeightFactor::getEquationParameters()) override final
	Get properties of this class.
JProperties	getProperties (const JEquationParameters &eqpars=JEvtWeightFactor::getEquationParameters()) const override final
	Get properties of this class.
std::istream &	read (std::istream &in) override final
	Read event-weight factor from input.
virtual clone_type	clone () const override
	Get clone of this object.

Private Types
typedef double(JEvtWeightFactorTriggerEfficiencyRatio::*)	pFunction(const Evt &) const
	Type definition of pointer to member function for calculating trigger efficiency ratios.

Private Attributes
pFunction	mfp
	Pointer to member method for calculating trigger efficiency ratios.
std::unique_ptr< TH1 >	pTE
	Unique pointer to trigger efficiency ratio histogram.
JRootObjectID	hTE
	Trigger efficiency histogram OID.
int	option
	Trigger efficiency ratio option.
double	ratio
	Abscissa ratio.
JRange_t	range
	Applicable range.
JCylinder3D	fiducialVolume
	Fiducial volume (for visible energy computation)
bool	logE
	Toggle logarithmic abscissa.

Detailed Description

Implementation of reweighting factor for trigger efficiency ratios.

Definition at line 69 of file JEvtWeightFactorTriggerEfficiencyRatio.hh.

Member Typedef Documentation

JRange_t

JRange<double> JAANET::JEvtWeightFactorTriggerEfficiencyRatio::JRange_t

Definition at line 72 of file JEvtWeightFactorTriggerEfficiencyRatio.hh.

pFunction

double(JEvtWeightFactorTriggerEfficiencyRatio::*) JAANET::JEvtWeightFactorTriggerEfficiencyRatio::pFunction(const Evt &) const

private

Type definition of pointer to member function for calculating trigger efficiency ratios.

Definition at line 542 of file JEvtWeightFactorTriggerEfficiencyRatio.hh.

clone_type

template<class JClonable_t , class JDerived_t >

JClonable<JClonable_t>::clone_type JLANG::JClonable< JClonable_t, JDerived_t >::clone_type

inherited

Definition at line 61 of file JClonable.hh.

Member Enumeration Documentation

JTriggerEfficiencyRatioOption

enum JAANET::JEvtWeightFactorTriggerEfficiencyRatio::JTriggerEfficiencyRatioOption

Indices of options for calculating trigger efficiency ratios.

The option names correspond to the variable which is used to compute the trigger efficiency ratio.

Enumerator
ENERGY_INITIAL_STATE	Compute trigger efficiency ratio based on scaling of the initial state energy.
ENERGY_NEUTRINO	Compute trigger efficiency ratio based on scaling of theprimary neutrino energy.
EVIS	Compute trigger efficiency ratio based on scaling of the total visible energy.
EVIS_LEADING_LEPTON_CONTR	Compute trigger efficiency ratio based on scaling of the visible energy contribution of the leading lepton.
EVIS_HADRONIC_CONTR	Compute trigger efficiency ratio based on scaling of the visible energy contribution of the hadronic shower.
NUMBER_OF_OPTIONS	N.B.: This enum value needs to be specified last!

Definition at line 78 of file JEvtWeightFactorTriggerEfficiencyRatio.hh.

                                       {
      ENERGY_INITIAL_STATE,      //!< Compute trigger efficiency ratio based on scaling of the initial state energy
      ENERGY_NEUTRINO,           //!< Compute trigger efficiency ratio based on scaling of theprimary neutrino energy
      EVIS,                      //!< Compute trigger efficiency ratio based on scaling of the total visible energy
      EVIS_LEADING_LEPTON_CONTR, //!< Compute trigger efficiency ratio based on scaling of the visible energy contribution of the leading lepton
      EVIS_HADRONIC_CONTR,       //!< Compute trigger efficiency ratio based on scaling of the visible energy contribution of the hadronic shower
      NUMBER_OF_OPTIONS          //!< N.B.: This enum value needs to be specified last!
    };

Constructor & Destructor Documentation

JEvtWeightFactorTriggerEfficiencyRatio() [1/3]

JAANET::JEvtWeightFactorTriggerEfficiencyRatio::JEvtWeightFactorTriggerEfficiencyRatio ( )

inline

Default constructor.

Definition at line 91 of file JEvtWeightFactorTriggerEfficiencyRatio.hh.

                                             :
      pTE           (),
      hTE           ("", "default"),
      option        (ENERGY_NEUTRINO),
      ratio         (0.0),
      range         (0.0, 4.0),
      fiducialVolume(getMaximumContainmentVolume()),
      logE          (true)
    {
      pTE = std::make_unique<TH1D>(hTE.getObjectName(), "", 10, range.getLowerLimit(), range.getUpperLimit());

      for (Int_t i = 1; i <= pTE->GetNbinsX(); ++i) {
        pTE->SetBinContent(i, 1.0);
      }

      pTE->SetDirectory(0);

      check_validity();
      configure();
    }

JEvtWeightFactorTriggerEfficiencyRatio() [2/3]

JAANET::JEvtWeightFactorTriggerEfficiencyRatio::JEvtWeightFactorTriggerEfficiencyRatio ( const JRootObjectID & objectID, const JTriggerEfficiencyRatioOption option, const double ratio, const JRange_t & range, const bool logE, const JCylinder3D & fiducialVolume )

inline

Constructor.

Parameters

objectID	trigger efficiency histogram OID
option	option
ratio	abscissa ratio
range	applicable (logarithmic) energy range [GeV]
logE	toggle logarithmic energies
fiducialVolume	fiducial volume

Definition at line 123 of file JEvtWeightFactorTriggerEfficiencyRatio.hh.

                                                                                               :
      pTE           (),
      hTE           (objectID),
      option        (option),
      ratio         (ratio),
      range         (range),
      fiducialVolume(fiducialVolume),
      logE          (logE)
    {
      check_validity();
      configure();
    }

JEvtWeightFactorTriggerEfficiencyRatio() [3/3]

JAANET::JEvtWeightFactorTriggerEfficiencyRatio::JEvtWeightFactorTriggerEfficiencyRatio ( const JEvtWeightFactorTriggerEfficiencyRatio & factor )

inline

Copy constructor.

Parameters

factor

trigger efficiency ratio factor

Definition at line 147 of file JEvtWeightFactorTriggerEfficiencyRatio.hh.

                                                                                                 :
      pTE           (),
      hTE           (factor.hTE),
      option        (factor.option),
      ratio         (factor.ratio),
      range         (factor.range),
      fiducialVolume(factor.fiducialVolume),
      logE          (factor.logE)
    {
      pTE.reset((TH1*) factor.pTE->Clone());

      pTE->SetDirectory(0);

      check_validity();
      configure();
    }

Member Function Documentation

configure()

void JAANET::JEvtWeightFactorTriggerEfficiencyRatio::configure ( )

inline

Configure trigger efficiency ratio factor.

Definition at line 168 of file JEvtWeightFactorTriggerEfficiencyRatio.hh.

    {
      using namespace std;
      using namespace JPP;

      if (hTE.is_valid() && (!pTE || hTE.getObjectName() != string(pTE->GetName()))) {

        if (!getFileStatus(hTE.getFilename().c_str())) {
          THROW(JFileOpenException,    "JEvtWeightFactorTriggerEfficiencyRatio::configure(): Could not open file " << hTE.getFilename());
        }

        TFile f(hTE.getFilename().c_str(), "read");

        TH1* h = (TH1*) f.Get(hTE.getObjectName());

        if (h != NULL) {
          pTE.reset(h);
          pTE->SetDirectory(0);
        } else {
          THROW(JNullPointerException, "JEvtWeightFactorTriggerEfficiencyRatio::configure(): Could not extract histogram " << hTE);
        }

        f.Close();
      }

      switch (option) {
      case (int) ENERGY_INITIAL_STATE :
        mfp = &JEvtWeightFactorTriggerEfficiencyRatio::getTriggerEfficiencyRatio1;
        break;
      case (int) ENERGY_NEUTRINO:
        mfp = &JEvtWeightFactorTriggerEfficiencyRatio::getTriggerEfficiencyRatio2;
        break;
      case (int) EVIS:
        mfp = &JEvtWeightFactorTriggerEfficiencyRatio::getTriggerEfficiencyRatio3;
        break;
      case (int) EVIS_LEADING_LEPTON_CONTR:
        mfp = &JEvtWeightFactorTriggerEfficiencyRatio::getTriggerEfficiencyRatio4;
        break;
      case (int) EVIS_HADRONIC_CONTR:
        mfp = &JEvtWeightFactorTriggerEfficiencyRatio::getTriggerEfficiencyRatio5;
        break;
      default:
        THROW(JValueOutOfRange, "JEvtWeightFactorRatio::configure(): Invalid option " << option);
      }
    }

getHistogram()

const TH1 & JAANET::JEvtWeightFactorTriggerEfficiencyRatio::getHistogram ( ) const

inline

Retrieve trigger efficiency histogram.

Returns

trigger efficiency histogram

Definition at line 220 of file JEvtWeightFactorTriggerEfficiencyRatio.hh.

    {
      if (pTE) {
        return *pTE;
      } else {
        THROW(JLANG::JNullPointerException, "JEvtWeightFactorTriggerEfficiencyRatio::getHistogram(): Trigger efficiency histogram is not set.");
      }
    }

getFiducialVolume()

JCylinder3D JAANET::JEvtWeightFactorTriggerEfficiencyRatio::getFiducialVolume ( ) const

inline

Retrieve fiducial volume.

Returns

fiducial volume

Definition at line 235 of file JEvtWeightFactorTriggerEfficiencyRatio.hh.

    {
      return fiducialVolume;
    }

setFiducialVolume()

void JAANET::JEvtWeightFactorTriggerEfficiencyRatio::setFiducialVolume ( const JCylinder3D & fiducialVolume )

inline

Set fiducial volume.

Parameters

fiducialVolume

fiducial volume

Definition at line 246 of file JEvtWeightFactorTriggerEfficiencyRatio.hh.

    {
      this->fiducialVolume = fiducialVolume;

      check_validity();
    }

is_valid()

bool JAANET::JEvtWeightFactorTriggerEfficiencyRatio::is_valid ( ) const

inlinefinaloverride

Check if this trigger efficiency ratio weight factor is valid.

Returns

true if valid; else false

Definition at line 259 of file JEvtWeightFactorTriggerEfficiencyRatio.hh.

    {
      return (pTE                                 &&
              option >= ENERGY_INITIAL_STATE      &&
              option <  NUMBER_OF_OPTIONS         &&
              ratio  >= 0.0                       &&
              range.is_valid()                    &&
              fiducialVolume.getVolume() >= 0.0);
    }

interpolate()

double JAANET::JEvtWeightFactorTriggerEfficiencyRatio::interpolate ( const double x ) const

inline

Perform linear inter- or extrapolation of trigger efficiency for given abscissa value.

Parameters

x	abscissa value

Returns

trigger efficiency

< Ensure that only given user-range is used for interpolation

Definition at line 276 of file JEvtWeightFactorTriggerEfficiencyRatio.hh.

    {
      using namespace std;

      const Int_t    Nbins = pTE->GetNbinsX();

      //!< Ensure that only given user-range is used for interpolation
      const Double_t X  = range.constrain(x);

      const Int_t    i0 = max(1, min(Nbins, pTE->FindBin(X)));

      const Double_t x0 = pTE->GetBinCenter (i0);
      const Double_t y0 = pTE->GetBinContent(i0);

      const Int_t    i1 = max(2, min(Nbins-1, (x > x0 ? i0+1 : i0-1)));

      const Double_t x1 = pTE->GetBinCenter (i1);
      const Double_t y1 = pTE->GetBinContent(i1);

      return max(0.0, y0 + (x-x0) * (y1-y0)/(x1-x0));
    }

getTriggerEfficiencyRatio()

double JAANET::JEvtWeightFactorTriggerEfficiencyRatio::getTriggerEfficiencyRatio ( const double x1, const double x2 ) const

inline

Get trigger efficiency ratio based on a scaling of the initial state energy.

Parameters

x1	first abscissa value
x2	second abscissa value

Returns

trigger efficiency ratio

< Minimum logarithmic energy (= 1 MeV)

Definition at line 306 of file JEvtWeightFactorTriggerEfficiencyRatio.hh.

    {
      static const double Xmin = -3.0; //!< Minimum logarithmic energy (= 1 MeV)

      double X1 = x1;
      double X2 = x2;

      if (logE) {
        X1 = x1 > 0.0 ? log10(x1) : Xmin;
        X2 = x2 > 0.0 ? log10(x2) : Xmin;
      }

      const double M1 = interpolate(X1);
      const double M2 = interpolate(X2);

      return M2 > 0.0 ? M1/M2 : 1.0;
    }

getTriggerEfficiencyRatio1() [1/2]

double JAANET::JEvtWeightFactorTriggerEfficiencyRatio::getTriggerEfficiencyRatio1 ( const double E0 ) const

inline

Get trigger efficiency ratio based on a scaling of the initial state energy.

Parameters

E0	initial state energy [GeV]

Returns

trigger efficiency ratio

Definition at line 332 of file JEvtWeightFactorTriggerEfficiencyRatio.hh.

    {
      return getTriggerEfficiencyRatio(ratio * E0, E0);
    }

getTriggerEfficiencyRatio1() [2/2]

double JAANET::JEvtWeightFactorTriggerEfficiencyRatio::getTriggerEfficiencyRatio1 ( const Evt & event ) const

inline

Get trigger efficiency ratio based on a scaling of the initial state energy.

Parameters

event

event

Returns

trigger efficiency ratio

Definition at line 344 of file JEvtWeightFactorTriggerEfficiencyRatio.hh.

    {
      const double E0 = getE0(event);

      return getTriggerEfficiencyRatio1(E0);
    }

getTriggerEfficiencyRatio2() [1/2]

double JAANET::JEvtWeightFactorTriggerEfficiencyRatio::getTriggerEfficiencyRatio2 ( const double Enu ) const

inline

Get trigger efficiency ratio based on a scaling of the primary neutrino energy.

Parameters

Enu	primary neutrino energy [GeV]

Returns

trigger efficiency ratio

Definition at line 358 of file JEvtWeightFactorTriggerEfficiencyRatio.hh.

    {
      return getTriggerEfficiencyRatio(ratio * Enu, Enu);
    }

getTriggerEfficiencyRatio2() [2/2]

double JAANET::JEvtWeightFactorTriggerEfficiencyRatio::getTriggerEfficiencyRatio2 ( const Evt & event ) const

inline

Get trigger efficiency ratio based on a scaling of the primary neutrino energy.

Parameters

event

event

Returns

trigger efficiency ratio

Definition at line 370 of file JEvtWeightFactorTriggerEfficiencyRatio.hh.

    {
      const Trk& primary = get_neutrino(event);

      const double Enu = primary.E;

      return getTriggerEfficiencyRatio2(Enu);
    }

getTriggerEfficiencyRatio3() [1/2]

double JAANET::JEvtWeightFactorTriggerEfficiencyRatio::getTriggerEfficiencyRatio3 ( const double Evis ) const

inline

Get trigger efficiency ratio based on a scaling of the total visible energy.

Parameters

Evis	total visible energy [GeV]

Returns

trigger efficiency ratio

Definition at line 386 of file JEvtWeightFactorTriggerEfficiencyRatio.hh.

    {
      return getTriggerEfficiencyRatio(ratio * Evis, Evis);
    }

getTriggerEfficiencyRatio3() [2/2]

double JAANET::JEvtWeightFactorTriggerEfficiencyRatio::getTriggerEfficiencyRatio3 ( const Evt & event ) const

inline

Get trigger efficiency ratio based on a scaling of the total visible energy.

Parameters

event

event

Returns

trigger efficiency ratio

Definition at line 398 of file JEvtWeightFactorTriggerEfficiencyRatio.hh.

    {
      const double Evis = JSIRENE::getVisibleEnergy(event, fiducialVolume);

      return getTriggerEfficiencyRatio3(Evis);
    }

getTriggerEfficiencyRatio4() [1/2]

double JAANET::JEvtWeightFactorTriggerEfficiencyRatio::getTriggerEfficiencyRatio4 ( const double Evis, const double EvisLL ) const

inline

Get trigger efficiency ratio based on a scaling of the leading leptonic contribution to the total visible energy.

This function assumes that the hadronic component in the visible energy corresponds to the total visible energy
minus the leading leptonic contribution.

Parameters

Evis	total visible energy [GeV]
EvisLL	leading lepton visible energy [GeV]

Returns

trigger efficiency ratio

Definition at line 416 of file JEvtWeightFactorTriggerEfficiencyRatio.hh.

    {
      return getTriggerEfficiencyRatio(Evis - (1-ratio)*EvisLL, Evis);
    }

getTriggerEfficiencyRatio4() [2/2]

double JAANET::JEvtWeightFactorTriggerEfficiencyRatio::getTriggerEfficiencyRatio4 ( const Evt & event ) const

inline

Get trigger efficiency ratio based on a scaling of the leading leptonic contribution to the total visible energy.

This function assumes that the hadronic component in the visible energy corresponds to the total visible energy
minus the leading leptonic contribution.

Parameters

event

event

Returns

trigger efficiency ratio

Definition at line 432 of file JEvtWeightFactorTriggerEfficiencyRatio.hh.

    {
      const double Evis   = JSIRENE::getVisibleEnergy             (event, fiducialVolume);
      const double EvisLL = JSIRENE::getVisibleEnergyLeadingLepton(event, fiducialVolume);

      return getTriggerEfficiencyRatio4(Evis, EvisLL);
    }

getTriggerEfficiencyRatio5() [1/2]

double JAANET::JEvtWeightFactorTriggerEfficiencyRatio::getTriggerEfficiencyRatio5 ( const double Evis, const double EvisLL ) const

inline

Get trigger efficiency ratio based on a scaling of the hadronic contribution to the total visible energy.

This function assumes that the hadronic component in the visible energy corresponds to the total visible energy
minus the leading leptonic contribution.

Parameters

Evis	total visible energy [GeV]
EvisLL	leading lepton visible energy [GeV]

Returns

trigger efficiency ratio

Definition at line 451 of file JEvtWeightFactorTriggerEfficiencyRatio.hh.

    {
      return getTriggerEfficiencyRatio(ratio*Evis + (1-ratio)*EvisLL, Evis);
    }

getTriggerEfficiencyRatio5() [2/2]

double JAANET::JEvtWeightFactorTriggerEfficiencyRatio::getTriggerEfficiencyRatio5 ( const Evt & event ) const

inline

Get trigger efficiency ratio based on a scaling of the hadronic contribution to the total visible energy.

This function assumes that the hadronic component in the visible energy corresponds to the total visible energy
minus the leading leptonic contribution.

Parameters

event

event

Returns

trigger efficiency ratio

Definition at line 467 of file JEvtWeightFactorTriggerEfficiencyRatio.hh.

    {
      const double Evis   = JSIRENE::getVisibleEnergy             (event, fiducialVolume);
      const double EvisLL = JSIRENE::getVisibleEnergyLeadingLepton(event, fiducialVolume);

      return getTriggerEfficiencyRatio5(Evis, EvisLL);
    }

getFactor()

double JAANET::JEvtWeightFactorTriggerEfficiencyRatio::getFactor ( const Evt & evt ) const

inlinefinaloverride

Get weighting factor for given event.

Parameters

evt

event

Returns

weighting factor

Definition at line 482 of file JEvtWeightFactorTriggerEfficiencyRatio.hh.

    {
      return (this->*mfp)(evt);
    }

getProperties() [1/2]

JProperties JAANET::JEvtWeightFactorTriggerEfficiencyRatio::getProperties ( const JEquationParameters & eqpars = JEvtWeightFactor::getEquationParameters() )

inlinefinaloverride

Get properties of this class.

Parameters

eqpars

equation parameters

Definition at line 493 of file JEvtWeightFactorTriggerEfficiencyRatio.hh.

    {
      return JEvtWeightFactorTriggerEfficiencyRatioHelper(*this, eqpars);
    }

getProperties() [2/2]

JProperties JAANET::JEvtWeightFactorTriggerEfficiencyRatio::getProperties ( const JEquationParameters & eqpars = JEvtWeightFactor::getEquationParameters() ) const

inlinefinaloverride

Get properties of this class.

Parameters

eqpars

equation parameters

Definition at line 504 of file JEvtWeightFactorTriggerEfficiencyRatio.hh.

    {
      return JEvtWeightFactorTriggerEfficiencyRatioHelper(*this, eqpars);
    }

read()

std::istream & JAANET::JEvtWeightFactorTriggerEfficiencyRatio::read ( std::istream & in )

inlinefinaloverride

Read event-weight factor from input.

Parameters

in	input stream

Returns

input stream

Definition at line 516 of file JEvtWeightFactorTriggerEfficiencyRatio.hh.

    {
      using namespace std;
      using namespace JPP;

      JStringStream is(in);

      if (getFileStatus(is.str().c_str())) {
        is.load();
      }

      JProperties properties = getProperties();
      is >> properties;

      check_validity();

      configure();

      return in;
    }

clone()

template<class JClonable_t , class JDerived_t >

virtual clone_type JLANG::JClonable< JClonable_t, JDerived_t >::clone ( ) const

inlineoverridevirtualinherited

Get clone of this object.

Returns

pointer to newly created object

Reimplemented in JPHYSICS::JPD0Transformer_t< JArgument_t >, JPHYSICS::JPDFTransformer< 2, JArgument_t >, JPHYSICS::JPDFTransformer< 3, JArgument_t >, JPHYSICS::JPDFTransformer< 4, JArgument_t >, JPHYSICS::JPDFTransformer< 5, JArgument_t >, JPHYSICS::JPDFTransformer_t< JArgument_t >, JPHYSICS::JPDGTransformer_t< JArgument_t >, and JTOOLS::JMultiMapTransformer< N, JArgument_t >::JMultiMapDefaultTransformer.

Definition at line 69 of file JClonable.hh.

    {
      return new JDerived_t(static_cast<const JDerived_t&>(*this));
    }

Member Data Documentation

mfp

pFunction JAANET::JEvtWeightFactorTriggerEfficiencyRatio::mfp

private

Pointer to member method for calculating trigger efficiency ratios.

Definition at line 574 of file JEvtWeightFactorTriggerEfficiencyRatio.hh.

pTE

std::unique_ptr<TH1> JAANET::JEvtWeightFactorTriggerEfficiencyRatio::pTE

private

Unique pointer to trigger efficiency ratio histogram.

Definition at line 576 of file JEvtWeightFactorTriggerEfficiencyRatio.hh.

hTE

JRootObjectID JAANET::JEvtWeightFactorTriggerEfficiencyRatio::hTE

private

Trigger efficiency histogram OID.

Definition at line 578 of file JEvtWeightFactorTriggerEfficiencyRatio.hh.

option

int JAANET::JEvtWeightFactorTriggerEfficiencyRatio::option

private

Trigger efficiency ratio option.

Definition at line 579 of file JEvtWeightFactorTriggerEfficiencyRatio.hh.

ratio

double JAANET::JEvtWeightFactorTriggerEfficiencyRatio::ratio

private

Abscissa ratio.

Definition at line 580 of file JEvtWeightFactorTriggerEfficiencyRatio.hh.

range

JRange_t JAANET::JEvtWeightFactorTriggerEfficiencyRatio::range

private

Applicable range.

Definition at line 581 of file JEvtWeightFactorTriggerEfficiencyRatio.hh.

fiducialVolume

JCylinder3D JAANET::JEvtWeightFactorTriggerEfficiencyRatio::fiducialVolume

private

Fiducial volume (for visible energy computation)

Definition at line 582 of file JEvtWeightFactorTriggerEfficiencyRatio.hh.

logE

bool JAANET::JEvtWeightFactorTriggerEfficiencyRatio::logE

private

Toggle logarithmic abscissa.

Definition at line 583 of file JEvtWeightFactorTriggerEfficiencyRatio.hh.

---

The documentation for this struct was generated from the following file:

• JEvtWeightFactorTriggerEfficiencyRatio.hh
