KM3NETDAQ::JDAQKeyHit Class Reference

DAQ key hit. More...

#include <JDAQKeyHit.hh>

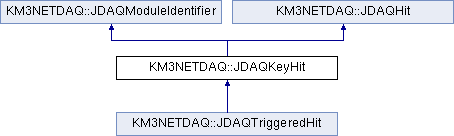

Inheritance diagram for KM3NETDAQ::JDAQKeyHit:

Public Types
typedef unsigned char	JPMT_t
	PMT channel in FPGA. More...
typedef unsigned int	JTDC_t
	leading edge [ns] More...
typedef unsigned char	JTOT_t
	time over threshold [ns] More...

Public Member Functions
	JDAQKeyHit ()
	Default constructor. More...
	JDAQKeyHit (const JDAQModuleIdentifier &id, const JDAQHit &hit)
	Constructor. More...
virtual	~JDAQKeyHit ()
	Virtual destructor. More...
	operator JDAQPMTIdentifier () const
	Type conversion operator. More...
	ClassDef (JDAQKeyHit, 1)
const JDAQModuleIdentifier &	getModuleIdentifier () const
	Get Module identifier. More...
void	setModuleIdentifier (const JDAQModuleIdentifier &module)
	Set Module identifier. More...
int	getModuleID () const
	Get module identifier. More...
	ClassDefNV (JDAQModuleIdentifier, 1)
JPMT_t	getPMT () const
	Get PMT. More...
JTDC_t	getT () const
	Get time. More...
JTOT_t	getToT () const
	Get time-over-threshold. More...
	ClassDefNV (JDAQHit, 1)

Static Public Member Functions
static int	sizeOf ()
	Get size of object. More...
static JTOT_t	getMaximalToT ()
	Get maximal time-over-threshold. More...

Protected Attributes
int	id
JPMT_t	pmt
	PMT readout channel in FPGA. More...
JTDC_t	tdc
	leading edge [ns] More...
JTOT_t	tot
	time over threshold [ns] More...

Friends
JReader &	operator>> (JReader &in, JDAQKeyHit &hit)
	Read JDAQKeyHit from input. More...
JWriter &	operator<< (JWriter &out, const JDAQKeyHit &hit)
	Write JDAQKeyHit to output. More...

Detailed Description

DAQ key hit.

Definition at line 24 of file JDAQKeyHit.hh.

Member Typedef Documentation

JPMT_t

typedef unsigned char KM3NETDAQ::JDAQHit::JPMT_t

inherited

PMT channel in FPGA.

Definition at line 44 of file JDAQHit.hh.

JTDC_t

typedef unsigned int KM3NETDAQ::JDAQHit::JTDC_t

inherited

leading edge [ns]

Definition at line 45 of file JDAQHit.hh.

JTOT_t

typedef unsigned char KM3NETDAQ::JDAQHit::JTOT_t

inherited

time over threshold [ns]

Definition at line 46 of file JDAQHit.hh.

Constructor & Destructor Documentation

JDAQKeyHit() [1/2]

KM3NETDAQ::JDAQKeyHit::JDAQKeyHit ( )

inline

Default constructor.

Definition at line 34 of file JDAQKeyHit.hh.

                 :
      JDAQModuleIdentifier(),
      JDAQHit()
    {}

JDAQKeyHit() [2/2]

KM3NETDAQ::JDAQKeyHit::JDAQKeyHit ( const JDAQModuleIdentifier &  id, const JDAQHit &  hit  )

inline

Constructor.

Parameters

id	module identifier
hit	PMT hit

Definition at line 46 of file JDAQKeyHit.hh.

                                                :
      JDAQModuleIdentifier(id),
      JDAQHit(hit)
    {}

~JDAQKeyHit()

virtual KM3NETDAQ::JDAQKeyHit::~JDAQKeyHit ( )

inlinevirtual

Virtual destructor.

Definition at line 56 of file JDAQKeyHit.hh.

    {}

Member Function Documentation

operator JDAQPMTIdentifier()

KM3NETDAQ::JDAQKeyHit::operator JDAQPMTIdentifier ( ) const

inline

Type conversion operator.

Returns

axis

Definition at line 65 of file JDAQKeyHit.hh.

    {
      return JDAQPMTIdentifier(this->getModuleID(), this->getPMT());
    }

sizeOf()

static int KM3NETDAQ::JDAQKeyHit::sizeOf ( )

inlinestatic

Get size of object.

Returns

number of bytes

Definition at line 108 of file JDAQKeyHit.hh.

    {
      return (JDAQModuleIdentifier::sizeOf() +
              JDAQHit             ::sizeOf());
    }

ClassDef()

KM3NETDAQ::JDAQKeyHit::ClassDef	(	JDAQKeyHit	,
		1
	)

getModuleIdentifier()

const JDAQModuleIdentifier& KM3NETDAQ::JDAQModuleIdentifier::getModuleIdentifier ( ) const

inlineinherited

Get Module identifier.

Returns

Module identifier

Definition at line 50 of file JDAQModuleIdentifier.hh.

    {
      return *this;
    }

setModuleIdentifier()

void KM3NETDAQ::JDAQModuleIdentifier::setModuleIdentifier ( const JDAQModuleIdentifier &  module )

inlineinherited

Set Module identifier.

Parameters

module

Module identifier

Definition at line 61 of file JDAQModuleIdentifier.hh.

    {
      *this = module;
    }

getModuleID()

int KM3NETDAQ::JDAQModuleIdentifier::getModuleID ( ) const

inlineinherited

Get module identifier.

Returns

module identifier

Definition at line 72 of file JDAQModuleIdentifier.hh.

    {
      return id;
    }

ClassDefNV() [1/2]

KM3NETDAQ::JDAQModuleIdentifier::ClassDefNV ( JDAQModuleIdentifier  , 1    )

inherited

getPMT()

JPMT_t KM3NETDAQ::JDAQHit::getPMT ( ) const

inlineinherited

Get PMT.

Returns

PMT

Definition at line 78 of file JDAQHit.hh.

    {
      return pmt;
    }

getT()

JTDC_t KM3NETDAQ::JDAQHit::getT ( ) const

inlineinherited

Get time.

Returns

time [ns]

Definition at line 89 of file JDAQHit.hh.

    {
      return ntohl(tdc);
    }

getToT()

JTOT_t KM3NETDAQ::JDAQHit::getToT ( ) const

inlineinherited

Get time-over-threshold.

Returns

time-over-threshold [ns]

Definition at line 100 of file JDAQHit.hh.

    {
      return tot;
    }

getMaximalToT()

static JTOT_t KM3NETDAQ::JDAQHit::getMaximalToT ( )

inlinestaticinherited

Get maximal time-over-threshold.

Returns

time-over-threshold [ns]

Definition at line 111 of file JDAQHit.hh.

    {
      return 0xFF;
    }

ClassDefNV() [2/2]

KM3NETDAQ::JDAQHit::ClassDefNV ( JDAQHit  , 1    )

inherited

Friends And Related Function Documentation

operator>>

JReader& operator>> ( JReader &  in, JDAQKeyHit &  hit  )

friend

Read JDAQKeyHit from input.

Parameters

in	JReader
hit	JDAQKeyHit

Returns

JReader

Definition at line 78 of file JDAQKeyHit.hh.

    {
      in >> static_cast<JDAQModuleIdentifier&>(hit);
      in >> static_cast<JDAQHit&>             (hit);

      return in;
    }

operator<<

JWriter& operator<< ( JWriter &  out, const JDAQKeyHit &  hit  )

friend

Write JDAQKeyHit to output.

Parameters

out	JWriter
hit	JDAQKeyHit

Returns

JWriter

Definition at line 94 of file JDAQKeyHit.hh.

    {
      out << static_cast<const JDAQModuleIdentifier&>(hit);
      out << static_cast<const JDAQHit&>             (hit);

      return out;
    }

Member Data Documentation

id

int KM3NETDAQ::JDAQModuleIdentifier::id

protectedinherited

Definition at line 153 of file JDAQModuleIdentifier.hh.

pmt

JPMT_t KM3NETDAQ::JDAQHit::pmt

protectedinherited

PMT readout channel in FPGA.

Definition at line 206 of file JDAQHit.hh.

tdc

JTDC_t KM3NETDAQ::JDAQHit::tdc

protectedinherited

leading edge [ns]

Definition at line 207 of file JDAQHit.hh.

tot

JTOT_t KM3NETDAQ::JDAQHit::tot

protectedinherited

time over threshold [ns]

Definition at line 208 of file JDAQHit.hh.

---

The documentation for this class was generated from the following file:

• JDAQKeyHit.hh
