Data summary slice. More...

#include <JDAQSummaryslice.hh>

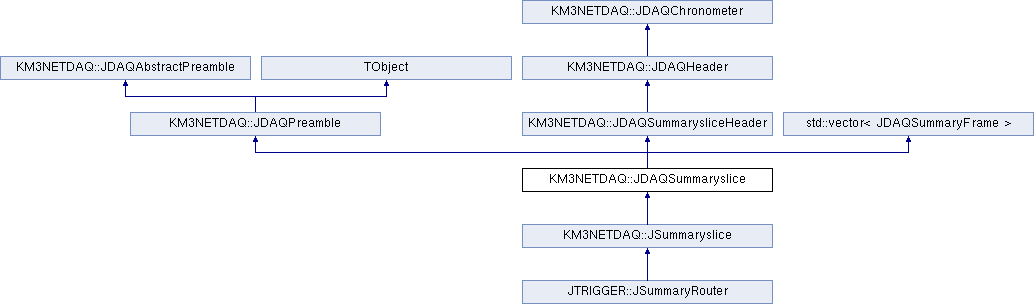

Inheritance diagram for KM3NETDAQ::JDAQSummaryslice:

Public Member Functions
	JDAQSummaryslice ()
	Default constructor. More...

	JDAQSummaryslice (const JDAQChronometer &chronometer)
	Constructor. More...

	JDAQSummaryslice (const JDAQTimeslice &timeslice)
	Constructor. More...

virtual	~JDAQSummaryslice ()
	Virtual destructor. More...

std::ostream &	print (std::ostream &out, const bool lpr=false) const
	Print DAQ summary. More...

virtual int	getSize () const
	Get size of object. More...

	ClassDef (JDAQSummaryslice, 6)

	ClassDef (JDAQPreamble, 1)

int	getLength () const
	Get length. More...

int	getDataType () const
	Get data type. More...

	ClassDefNV (JDAQAbstractPreamble, 1)

const JDAQSummarysliceHeader &	getDAQSummarysliceHeader () const
	Get DAQ summary slice header. More...

	ClassDef (JDAQSummarysliceHeader, 2)

	ClassDef (JDAQHeader, 2)

	ClassDef (JDAQChronometer, 3)

const JDAQHeader &	getDAQHeader () const
	Get DAQ header. More...

void	setDAQHeader (const JDAQHeader &header)
	Set DAQ header. More...

const JDAQChronometer &	getDAQChronometer () const
	Get DAQ chronometer. More...

void	setDAQChronometer (const JDAQChronometer &chronometer)
	Set DAQ chronometer. More...

int	getDetectorID () const
	Get detector identifier. More...

int	getRunNumber () const
	Get run number. More...

int	getFrameIndex () const
	Get frame index. More...

JDAQUTCExtended	getTimesliceStart () const
	Get start of timeslice. More...

void	setRunNumber (const int run)
	Set run number. More...

void	setFrameIndex (const int frame_index)
	Set frame index. More...

void	setTimesliceStart (const JDAQUTCExtended &timeslice_start)
	Set timeslice start time. More...

Static Public Member Functions
static void	actionAtFileOpen (int version)
	Action method at file open. More...

static int	sizeOf ()
	Get size of object. More...

static int	sizeOf ()
	Get size of object. More...

Protected Member Functions
void	setLength ()
	Set length. More...

Protected Attributes
int	length

int	type

int	detector_id

int	run

int	frame_index

JDAQUTCExtended	timeslice_start

Friends
JReader &	operator>> (JReader &in, JDAQSummaryslice &summaryslice)
	Read DAQ summaryslice from input. More...

JWriter &	operator<< (JWriter &out, const JDAQSummaryslice &summaryslice)
	Write DAQ summaryslice to output. More...

Detailed Description

Data summary slice.

Definition at line 31 of file JDAQSummaryslice.hh.

Constructor & Destructor Documentation

◆ JDAQSummaryslice() [1/3]

KM3NETDAQ::JDAQSummaryslice::JDAQSummaryslice ( )

inline

Default constructor.

Definition at line 40 of file JDAQSummaryslice.hh.

                        :
       JDAQPreamble(JDAQType<JDAQSummaryslice>()),
       JDAQSummarysliceHeader(),
       std::vector<JDAQSummaryFrame>()
     {}

◆ JDAQSummaryslice() [2/3]

KM3NETDAQ::JDAQSummaryslice::JDAQSummaryslice ( const JDAQChronometer & chronometer )

inline

Constructor.

Parameters

chronometer DAQ chronometer

Definition at line 52 of file JDAQSummaryslice.hh.

                                                          :
       JDAQPreamble(JDAQType<JDAQSummaryslice>()),
       JDAQSummarysliceHeader(chronometer),
       std::vector<JDAQSummaryFrame>()
     {}

◆ JDAQSummaryslice() [3/3]

KM3NETDAQ::JDAQSummaryslice::JDAQSummaryslice ( const JDAQTimeslice & timeslice )

inline

Constructor.

Parameters

timeslice time slice

Definition at line 64 of file JDAQSummaryslice.hh.

                                                      :
       JDAQPreamble(JDAQType<JDAQSummaryslice>()),
       JDAQSummarysliceHeader(timeslice),
       std::vector<JDAQSummaryFrame>()
     {
       for (JDAQTimeslice::const_iterator i = timeslice.begin(); i != timeslice.end(); ++i) {
         this->push_back(JDAQSummaryFrame(*i));
       }
     }

◆ ~JDAQSummaryslice()

virtual KM3NETDAQ::JDAQSummaryslice::~JDAQSummaryslice ( )

inlinevirtual

Virtual destructor.

Definition at line 78 of file JDAQSummaryslice.hh.

79 {}

Member Function Documentation

◆ print()

std::ostream& KM3NETDAQ::JDAQSummaryslice::print	(	std::ostream &	out,
		const bool	lpr = `false`
	)		const

inline

Print DAQ summary.

Parameters

out	output stream
lpr	long print

Returns: output stream

Definition at line 125 of file JDAQSummaryslice.hh.

     {
       using namespace std;

       out << this->ClassName() << endl;
       out << dynamic_cast<const JDAQPreamble&>   (*this) << endl;
       out << dynamic_cast<const JDAQChronometer&>(*this) << endl;

       for (JDAQSummaryslice::const_iterator module = this->begin(); module != this->end(); ++module) {

         out << ' ' << setw(10) << module->getModuleID();
         out << ' ' << setw(8)  << setfill('0') << hex << module->getStatus()     << dec << setfill(' ');
         out << '|' << setw(8)  << setfill('0') << hex << module->getFIFOStatus() << dec << setfill(' ');
         out << ' ' << setw(2)  << module->getUDPNumberOfReceivedPackets();
         out << ' ' << setw(2)  << module->getUDPMaximalSequenceNumber();

         if (lpr) {
           for (int pmt = 0; pmt != NUMBER_OF_PMTS; ++pmt) {
             out << ' ' << fixed << showpoint << setw(4) << setprecision(1) << module->getRate(pmt) * 1.0e-3;
           }
         }

         out << endl;
       }

       return out;
     }

◆ getSize()

virtual int KM3NETDAQ::JDAQSummaryslice::getSize ( ) const

inlinevirtual

Get size of object.

Returns: number of bytes

Reimplemented from KM3NETDAQ::JDAQPreamble.

Definition at line 159 of file JDAQSummaryslice.hh.

     {
       int len = 0;

       len += JDAQPreamble          ::sizeOf();
       len += JDAQSummarysliceHeader::sizeOf();

       len += sizeof(int);
       len += this->size() * JDAQSummaryFrame::sizeOf();

       return len;
     }

◆ actionAtFileOpen()

static void KM3NETDAQ::JDAQSummaryslice::actionAtFileOpen ( int version )

inlinestatic

Action method at file open.

Parameters

version version

Definition at line 178 of file JDAQSummaryslice.hh.

     {
       JDAQSummaryFrame::ROOT_IO_VERSION = version;
     }

◆ ClassDef() [1/5]

KM3NETDAQ::JDAQSummaryslice::ClassDef	(	JDAQSummaryslice	,
		6
	)

◆ sizeOf() [1/2]

static int KM3NETDAQ::JDAQPreamble::sizeOf ( )

inlinestaticinherited

Get size of object.

Returns: number of bytes

Definition at line 110 of file JDAQPreamble.hh.

     {
       return JDAQAbstractPreamble::sizeOf();
     }

◆ ClassDef() [2/5]

KM3NETDAQ::JDAQPreamble::ClassDef	(	JDAQPreamble	,
		1
	)

inherited

◆ setLength()

void KM3NETDAQ::JDAQPreamble::setLength ( )

inlineprotectedinherited

Set length.

Definition at line 134 of file JDAQPreamble.hh.

     {
       length = getSize();
     }

◆ getLength()

int KM3NETDAQ::JDAQAbstractPreamble::getLength ( ) const

inlineinherited

Get length.

Returns: number of bytes

Definition at line 48 of file JDAQAbstractPreamble.hh.

     {
       return length;
     }

◆ getDataType()

int KM3NETDAQ::JDAQAbstractPreamble::getDataType ( ) const

inlineinherited

Get data type.

Returns: data type

Definition at line 59 of file JDAQAbstractPreamble.hh.

     {
       return type;
     }

◆ ClassDefNV()

KM3NETDAQ::JDAQAbstractPreamble::ClassDefNV	(	JDAQAbstractPreamble	,
		1
	)

inherited

◆ getDAQSummarysliceHeader()

const JDAQSummarysliceHeader& KM3NETDAQ::JDAQSummarysliceHeader::getDAQSummarysliceHeader ( ) const

inlineinherited

Get DAQ summary slice header.

Returns: DAQ summary slice header

Definition at line 49 of file JDAQSummarysliceHeader.hh.

     {
       return static_cast<const JDAQSummarysliceHeader&>(*this);
     }

◆ ClassDef() [3/5]

KM3NETDAQ::JDAQSummarysliceHeader::ClassDef	(	JDAQSummarysliceHeader	,
		2
	)

inherited

◆ ClassDef() [4/5]

KM3NETDAQ::JDAQHeader::ClassDef	(	JDAQHeader	,
		2
	)

inherited

◆ ClassDef() [5/5]

KM3NETDAQ::JDAQChronometer::ClassDef	(	JDAQChronometer	,
		3
	)

inherited

◆ getDAQHeader()

const JDAQHeader& KM3NETDAQ::JDAQHeader::getDAQHeader ( ) const

inlineinherited

Get DAQ header.

Returns: DAQ header

Definition at line 51 of file JDAQHeader.hh.

     {
       return static_cast<const JDAQHeader&>(*this);
     }

◆ setDAQHeader()

void KM3NETDAQ::JDAQHeader::setDAQHeader ( const JDAQHeader & header )

inlineinherited

Set DAQ header.

Parameters

header DAQ header

Definition at line 62 of file JDAQHeader.hh.

     {
       static_cast<JDAQHeader&>(*this) = header;
     }

◆ sizeOf() [2/2]

static int KM3NETDAQ::JDAQHeader::sizeOf ( )

inlinestaticinherited

Get size of object.

Returns: number of bytes

Definition at line 103 of file JDAQHeader.hh.

     {
       return (JDAQChronometer::sizeOf());
     }

◆ getDAQChronometer()

const JDAQChronometer& KM3NETDAQ::JDAQChronometer::getDAQChronometer ( ) const

inlineinherited

Get DAQ chronometer.

Returns: DAQ chronometer

Definition at line 88 of file JDAQChronometer.hh.

     {
       return static_cast<const JDAQChronometer&>(*this);
     }

◆ setDAQChronometer()

void KM3NETDAQ::JDAQChronometer::setDAQChronometer ( const JDAQChronometer & chronometer )

inlineinherited

Set DAQ chronometer.

Parameters

chronometer DAQ chronometer

Definition at line 99 of file JDAQChronometer.hh.

     {
       static_cast<JDAQChronometer&>(*this) = chronometer;
     }

◆ getDetectorID()

int KM3NETDAQ::JDAQChronometer::getDetectorID ( ) const

inlineinherited

Get detector identifier.

Returns: detector identifier

Definition at line 110 of file JDAQChronometer.hh.

     {
       return detector_id;
     }

◆ getRunNumber()

int KM3NETDAQ::JDAQChronometer::getRunNumber ( ) const

inlineinherited

Get run number.

Returns: run number

Definition at line 121 of file JDAQChronometer.hh.

     {
       return run;
     }

◆ getFrameIndex()

int KM3NETDAQ::JDAQChronometer::getFrameIndex ( ) const

inlineinherited

Get frame index.

Returns: frame index

Definition at line 132 of file JDAQChronometer.hh.

     {
       return frame_index;
     }

◆ getTimesliceStart()

JDAQUTCExtended KM3NETDAQ::JDAQChronometer::getTimesliceStart ( ) const

inlineinherited

Get start of timeslice.

Returns: timeslice start

Definition at line 144 of file JDAQChronometer.hh.

     {
       return timeslice_start;
     }

◆ setRunNumber()

void KM3NETDAQ::JDAQChronometer::setRunNumber ( const int run )

inlineinherited

Set run number.

Parameters

run	run number

Definition at line 155 of file JDAQChronometer.hh.

     {
       this->run = run;
     }

◆ setFrameIndex()

void KM3NETDAQ::JDAQChronometer::setFrameIndex ( const int frame_index )

inlineinherited

Set frame index.

Parameters

frame_index frame index

Definition at line 166 of file JDAQChronometer.hh.

     {
       this->frame_index = frame_index;
     }

◆ setTimesliceStart()

void KM3NETDAQ::JDAQChronometer::setTimesliceStart ( const JDAQUTCExtended & timeslice_start )

inlineinherited

Set timeslice start time.

Parameters

timeslice_start timeslice start time

Definition at line 177 of file JDAQChronometer.hh.

     {
       this->timeslice_start = timeslice_start;
     }

Friends And Related Function Documentation

◆ operator>>

JReader& operator>>	(	JReader &	in,
		JDAQSummaryslice &	summaryslice
	)

friend

Read DAQ summaryslice from input.

Parameters

in	JReader
summaryslice	JDAQSummaryslice

Returns: JReader

Definition at line 89 of file JDAQSummaryslice.hh.

     {
       summaryslice.clear();

       in >> static_cast<JDAQPreamble&>                 (summaryslice);
       in >> static_cast<JDAQSummarysliceHeader&>       (summaryslice);
       in >> static_cast<std::vector<JDAQSummaryFrame>&>(summaryslice);

       return in;
     }

◆ operator<<

JWriter& operator<<	(	JWriter &	out,
		const JDAQSummaryslice &	summaryslice
	)

friend

Write DAQ summaryslice to output.

Parameters

out	JWriter
summaryslice	JDAQSummaryslice

Returns: JWriter

Definition at line 108 of file JDAQSummaryslice.hh.

     {
       out << static_cast<const JDAQPreamble&>                 (summaryslice);
       out << static_cast<const JDAQSummarysliceHeader&>       (summaryslice);
       out << static_cast<const std::vector<JDAQSummaryFrame>&>(summaryslice);

       return out;
     }

Member Data Documentation

◆ length

int KM3NETDAQ::JDAQAbstractPreamble::length

protectedinherited

Definition at line 79 of file JDAQAbstractPreamble.hh.

◆ type

int KM3NETDAQ::JDAQAbstractPreamble::type

protectedinherited

Definition at line 80 of file JDAQAbstractPreamble.hh.

◆ detector_id

int KM3NETDAQ::JDAQChronometer::detector_id

protectedinherited

Definition at line 237 of file JDAQChronometer.hh.

◆ run

int KM3NETDAQ::JDAQChronometer::run

protectedinherited

Definition at line 238 of file JDAQChronometer.hh.

◆ frame_index

int KM3NETDAQ::JDAQChronometer::frame_index

protectedinherited

Definition at line 239 of file JDAQChronometer.hh.

◆ timeslice_start

JDAQUTCExtended KM3NETDAQ::JDAQChronometer::timeslice_start

protectedinherited

Definition at line 240 of file JDAQChronometer.hh.

The documentation for this class was generated from the following file:

JDAQSummaryslice.hh

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ JDAQSummaryslice() [1/3]

◆ JDAQSummaryslice() [2/3]

◆ JDAQSummaryslice() [3/3]

◆ ~JDAQSummaryslice()

Member Function Documentation

◆ print()

◆ getSize()

◆ actionAtFileOpen()

◆ ClassDef() [1/5]

◆ sizeOf() [1/2]

◆ ClassDef() [2/5]

◆ setLength()

◆ getLength()

◆ getDataType()

◆ ClassDefNV()

◆ getDAQSummarysliceHeader()

◆ ClassDef() [3/5]

◆ ClassDef() [4/5]

◆ ClassDef() [5/5]

◆ getDAQHeader()

◆ setDAQHeader()

◆ sizeOf() [2/2]

◆ getDAQChronometer()

◆ setDAQChronometer()

◆ getDetectorID()

◆ getRunNumber()

◆ getFrameIndex()

◆ getTimesliceStart()

◆ setRunNumber()

◆ setFrameIndex()

◆ setTimesliceStart()

Friends And Related Function Documentation

◆ operator>>

◆ operator<<

Member Data Documentation

◆ length

◆ type

◆ detector_id

◆ run

◆ frame_index

◆ timeslice_start
