JGEOMETRY3D::JQuaternion3D Class Reference

Data structure for quaternion in three dimensions. More...

#include <JQuaternion3D.hh>

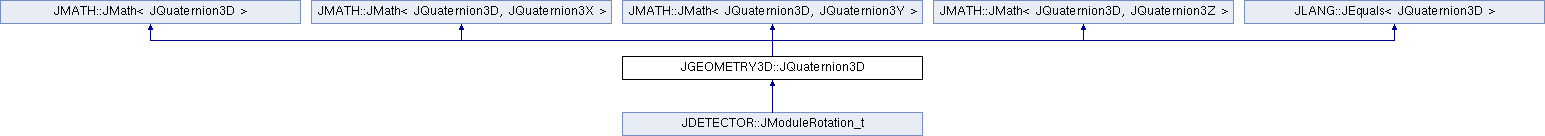

Inheritance diagram for JGEOMETRY3D::JQuaternion3D:
JMATH::JMath< JFirst_t, JSecond_t > JMATH::JMath< JFirst_t, JSecond_t > JMATH::JMath< JFirst_t, JSecond_t > JMATH::JMath< JFirst_t, JSecond_t > JLANG::JEquals< JFirst_t, JSecond_t > JDETECTOR::JModuleRotation_t

Public Member Functions

 JQuaternion3D ()
 Default constructor. More...

 JQuaternion3D (const double a, const double b, const double c, const double d)
 Constructor. More...

 JQuaternion3D (const double theta, const JVersor3D &dir)
 Constructor. More...

 JQuaternion3D (const JQuaternion3X &qx, const JQuaternion3Y &qy, const JQuaternion3Z &qz)
 Constructor. More...

const JQuaternion3D & getQuaternion () const
 Get quaternion. More...

JQuaternion3D & getQuaternion ()
 Get quaternion. More...

void setQuaternion (const JQuaternion3D &quaternion)
 Set quaternion. More...

 operator JVector3D () const
 Type conversion operator. More...

 operator JVersor3D () const
 Type conversion operator. More...

double getA () const
 Get a value. More...

double getB () const
 Get b value. More...

double getC () const
 Get c value. More...

double getD () const
 Get d value. More...

JQuaternion3D & setIdentity ()
 Set to identity matrix. More...

JQuaternion3D & conjugate ()
 Conjugate quaternion. More...

JQuaternion3D & negate ()
 Negate quaternion. More...

JQuaternion3D & add (const JQuaternion3D &quaternion)
 Add quaternion. More...

JQuaternion3D & sub (const JQuaternion3D &quaternion)
 Subtract quaternion. More...

JQuaternion3D & mul (const double factor)
 Scale quaternion. More...

JQuaternion3D & div (const double factor)
 Scale quaternion. More...

JQuaternion3D & mul (const JQuaternion3D &first, const JQuaternion3X &second)
 Quaternion multiplicaion. More...

JQuaternion3D & mul (const JQuaternion3D &first, const JQuaternion3Y &second)
 Quaternion multiplicaion. More...

JQuaternion3D & mul (const JQuaternion3D &first, const JQuaternion3Z &second)
 Quaternion multiplicaion. More...

JQuaternion3D & mul (const JQuaternion3D &first, const JQuaternion3D &second)
 Quaternion multiplicaion. More...

JQuaternion3D & mul (const JQuaternion3X &qx, const JQuaternion3Y &qy, const JQuaternion3Z &qz)
 Quaternion multiplicaion. More...

void rotate (double &__x, double &__y, double &__z) const
 Rotate. More...

void rotate_back (double &__x, double &__y, double &__z) const
 Rotate back. More...

bool equals (const JQuaternion3D &quaternion, const double precision=std::numeric_limits< double >::min()) const
 Check equality. More...

double getLengthSquared () const
 Get length squared. More...

double getLength () const
 Get length. More...

double getDistanceSquared (const JQuaternion3D &quaternion) const
 Get squared of distance to quaternion. More...

double getDistance (const JQuaternion3D &quaternion) const
 Get distance to quaternion. More...

double getDot (const JQuaternion3D &quaternion) const
 Get dot product. More...

JFirst_t & mul (const JSecond_t &object)
 Multiply with object. More...


Protected Attributes

double __a

double __b

double __c

double __d


Friends

std::istream & operator>> (std::istream &in, JQuaternion3D &quaternion)
 Write quaternion from input. More...

std::ostream & operator<< (std::ostream &out, const JQuaternion3D &quaternion)
 Write quaternion to output. More...

JReader & operator>> (JReader &in, JQuaternion3D &quaternion)
 Read quaternion from input. More...

JWriter & operator<< (JWriter &out, const JQuaternion3D &quaternion)
 Write quaternion to output. More...


Detailed Description

Data structure for quaternion in three dimensions.

This class implements the JMATH::JMath and JLANG::JEquals interfaces.

Definition at line 240 of file JQuaternion3D.hh.

Constructor & Destructor Documentation

◆ JQuaternion3D() [1/4]

JGEOMETRY3D::JQuaternion3D::JQuaternion3D ( )
inline

Default constructor.

Definition at line 258 of file JQuaternion3D.hh.

258  :
259  __a(0.0),
260  __b(0.0),
261  __c(0.0),
262  __d(0.0)
263  {}

◆ JQuaternion3D() [2/4]

JGEOMETRY3D::JQuaternion3D::JQuaternion3D ( const double  a,
const double  b,
const double  c,
const double  d
)
inline

Constructor.

Parameters
aa value
bb value
cc value
dd value

Definition at line 274 of file JQuaternion3D.hh.

277  :
278  __a(a),
279  __b(b),
280  __c(c),
281  __d(d)
282  {}

◆ JQuaternion3D() [3/4]

JGEOMETRY3D::JQuaternion3D::JQuaternion3D ( const double  theta,
const JVersor3D &  dir
)
inline

Constructor.

This constructor represents a rotation around the given axis by the given angle.

Parameters
thetarotation angle [rad]
dirrotation axis

Definition at line 293 of file JQuaternion3D.hh.

295  {
296  const double ct = cos(0.5*theta);
297  const double st = sin(0.5*theta);
298
299  __a = ct;
300  __b = st * dir.getDX();
301  __c = st * dir.getDY();
302  __d = st * dir.getDZ();
303  }

◆ JQuaternion3D() [4/4]

JGEOMETRY3D::JQuaternion3D::JQuaternion3D ( const JQuaternion3X &  qx,
const JQuaternion3Y &  qy,
const JQuaternion3Z &  qz
)
inline

Constructor.

Parameters
qxrotation around x-axis
qyrotation around y-axis
qzrotation around x-axis

Definition at line 313 of file JQuaternion3D.hh.

315  :
316  __a(1.0),
317  __b(0.0),
318  __c(0.0),
319  __d(0.0)
320  {
321  mul(qz).mul(qy).mul(qx);
322  }

Member Function Documentation

◆ getQuaternion() [1/2]

const JQuaternion3D& JGEOMETRY3D::JQuaternion3D::getQuaternion ( ) const
inline

Get quaternion.

Returns
quaternion

Definition at line 330 of file JQuaternion3D.hh.

331  {
332  return static_cast<const JQuaternion3D&>(*this);
333  }

◆ getQuaternion() [2/2]

JQuaternion3D& JGEOMETRY3D::JQuaternion3D::getQuaternion ( )
inline

Get quaternion.

Returns
quaternion

Definition at line 341 of file JQuaternion3D.hh.

342  {
343  return static_cast<JQuaternion3D&>(*this);
344  }

◆ setQuaternion()

void JGEOMETRY3D::JQuaternion3D::setQuaternion ( const JQuaternion3D &  quaternion)
inline

Set quaternion.

Parameters
quaternionquaternion

Definition at line 352 of file JQuaternion3D.hh.

353  {
354  static_cast<JQuaternion3D&>(*this) = quaternion;
355  }

◆ operator JVector3D()

JGEOMETRY3D::JQuaternion3D::operator JVector3D ( ) const
inline

Type conversion operator.

Returns
position

Definition at line 363 of file JQuaternion3D.hh.

364  {
365  return JVector3D(this->getB(), this->getC(), this->getD());
366  }

◆ operator JVersor3D()

JGEOMETRY3D::JQuaternion3D::operator JVersor3D ( ) const
inline

Type conversion operator.

Returns
direction

Definition at line 374 of file JQuaternion3D.hh.

375  {
376  return JVersor3D(this->getB(), this->getC(), this->getD());
377  }

◆ getA()

double JGEOMETRY3D::JQuaternion3D::getA ( ) const
inline

Get a value.

Returns
a value

Definition at line 385 of file JQuaternion3D.hh.

386  {
387  return __a;
388  }

◆ getB()

double JGEOMETRY3D::JQuaternion3D::getB ( ) const
inline

Get b value.

Returns
b value

Definition at line 396 of file JQuaternion3D.hh.

397  {
398  return __b;
399  }

◆ getC()

double JGEOMETRY3D::JQuaternion3D::getC ( ) const
inline

Get c value.

Returns
c value

Definition at line 407 of file JQuaternion3D.hh.

408  {
409  return __c;
410  }

◆ getD()

double JGEOMETRY3D::JQuaternion3D::getD ( ) const
inline

Get d value.

Returns
d value

Definition at line 418 of file JQuaternion3D.hh.

419  {
420  return __d;
421  }

◆ setIdentity()

JQuaternion3D& JGEOMETRY3D::JQuaternion3D::setIdentity ( )
inline

Set to identity matrix.

Returns
this quaternion

Definition at line 429 of file JQuaternion3D.hh.

430  {
431  __a = 1.0;
432  __b = 0.0;
433  __c = 0.0;
434  __d = 0.0;
435
436  return *this;
437  }

◆ conjugate()

JQuaternion3D& JGEOMETRY3D::JQuaternion3D::conjugate ( )
inline

Conjugate quaternion.

Returns
this quaternion

Definition at line 445 of file JQuaternion3D.hh.

446  {
447  __b = -__b;
448  __c = -__c;
449  __d = -__d;
450
451  return *this;
452  }

◆ negate()

JQuaternion3D& JGEOMETRY3D::JQuaternion3D::negate ( )
inline

Negate quaternion.

Returns
this quaternion

Definition at line 460 of file JQuaternion3D.hh.

461  {
462  __a = -__a;
463  __b = -__b;
464  __c = -__c;
465  __d = -__d;
466
467  return *this;
468  }

◆ add()

JQuaternion3D& JGEOMETRY3D::JQuaternion3D::add ( const JQuaternion3D &  quaternion)
inline

Add quaternion.

Parameters
quaternionquaternion
Returns
this quaternion

Definition at line 477 of file JQuaternion3D.hh.

478  {
479  __a += quaternion.getA();
480  __b += quaternion.getB();
481  __c += quaternion.getC();
482  __d += quaternion.getD();
483
484  return *this;
485  }

◆ sub()

JQuaternion3D& JGEOMETRY3D::JQuaternion3D::sub ( const JQuaternion3D &  quaternion)
inline

Subtract quaternion.

Parameters
quaternionquaternion
Returns
this quaternion

Definition at line 494 of file JQuaternion3D.hh.

495  {
496  __a -= quaternion.getA();
497  __b -= quaternion.getB();
498  __c -= quaternion.getC();
499  __d -= quaternion.getD();
500
501  return *this;
502  }

◆ mul() [1/7]

JQuaternion3D& JGEOMETRY3D::JQuaternion3D::mul ( const double  factor)
inline

Scale quaternion.

Parameters
factormultiplication factor
Returns
this quaternion

Definition at line 511 of file JQuaternion3D.hh.

512  {
513  __a *= factor;
514  __b *= factor;
515  __c *= factor;
516  __d *= factor;
517
518  return *this;
519  }

◆ div()

JQuaternion3D& JGEOMETRY3D::JQuaternion3D::div ( const double  factor)
inline

Scale quaternion.

Parameters
factordivision factor
Returns
this quaternion

Definition at line 528 of file JQuaternion3D.hh.

529  {
530  __a /= factor;
531  __b /= factor;
532  __c /= factor;
533  __d /= factor;
534
535  return *this;
536  }

◆ mul() [2/7]

JQuaternion3D& JGEOMETRY3D::JQuaternion3D::mul ( const JQuaternion3D &  first,
const JQuaternion3X &  second
)
inline

Quaternion multiplicaion.

This method evaluates the Hamilton product (also called cross product).

Parameters
firstfirst quaternion
secondsecond quaternion
Returns
this quaternion

Definition at line 548 of file JQuaternion3D.hh.

549  {
550  __a = first.getA() * second.getA() - first.getB() * second.getB();
551  __b = first.getA() * second.getB() + first.getB() * second.getA();
552  __c = first.getC() * second.getA() + first.getD() * second.getB();
553  __d = -first.getC() * second.getB() + first.getD() * second.getA();
554
555  return *this;
556  }

◆ mul() [3/7]

JQuaternion3D& JGEOMETRY3D::JQuaternion3D::mul ( const JQuaternion3D &  first,
const JQuaternion3Y &  second
)
inline

Quaternion multiplicaion.

This method evaluates the Hamilton product (or cross product).

Parameters
firstfirst quaternion
secondsecond quaternion
Returns
this quaternion

Definition at line 568 of file JQuaternion3D.hh.

570  {
571  __a = first.getA() * second.getA() - first.getC() * second.getC();
572  __b = first.getB() * second.getA() - first.getD() * second.getC();
573  __c = first.getA() * second.getC() + first.getC() * second.getA();
574  __d = first.getB() * second.getC() + first.getD() * second.getA();
575
576  return *this;
577  }

◆ mul() [4/7]

JQuaternion3D& JGEOMETRY3D::JQuaternion3D::mul ( const JQuaternion3D &  first,
const JQuaternion3Z &  second
)
inline

Quaternion multiplicaion.

This method evaluates the Hamilton product (or cross product).

Parameters
firstfirst quaternion
secondsecond quaternion
Returns
this quaternion

Definition at line 589 of file JQuaternion3D.hh.

591  {
592  __a = first.getA() * second.getA() - first.getD() * second.getD();
593  __b = first.getB() * second.getA() + first.getC() * second.getD();
594  __c = -first.getB() * second.getD() + first.getC() * second.getA();
595  __d = first.getA() * second.getD() + first.getD() * second.getA();
596
597  return *this;
598  }

◆ mul() [5/7]

JQuaternion3D& JGEOMETRY3D::JQuaternion3D::mul ( const JQuaternion3D &  first,
const JQuaternion3D &  second
)
inline

Quaternion multiplicaion.

This method evaluates the Hamilton product (or cross product).

Parameters
firstfirst quaternion
secondsecond quaternion
Returns
this quaternion

Definition at line 610 of file JQuaternion3D.hh.

612  {
613  __a = first.getA() * second.getA() - first.getB() * second.getB() - first.getC() * second.getC() - first.getD() * second.getD();
614  __b = first.getA() * second.getB() + first.getB() * second.getA() + first.getC() * second.getD() - first.getD() * second.getC();
615  __c = first.getA() * second.getC() - first.getB() * second.getD() + first.getC() * second.getA() + first.getD() * second.getB();
616  __d = first.getA() * second.getD() + first.getB() * second.getC() - first.getC() * second.getB() + first.getD() * second.getA();
617
618  return *this;
619  }

◆ mul() [6/7]

JQuaternion3D& JGEOMETRY3D::JQuaternion3D::mul ( const JQuaternion3X &  qx,
const JQuaternion3Y &  qy,
const JQuaternion3Z &  qz
)
inline

Quaternion multiplicaion.

Parameters
qxrotation around x-axis
qyrotation around y-axis
qzrotation around x-axis
Returns
this quaternion

Definition at line 630 of file JQuaternion3D.hh.

633  {
634  return *this = JQuaternion3D().setIdentity().mul(qz).mul(qy).mul(qx);
635  }

◆ rotate()

void JGEOMETRY3D::JQuaternion3D::rotate ( double &  __x,
double &  __y,
double &  __z
) const
inline

Rotate.

Parameters
__xx value
__yy value
__zz value

Definition at line 645 of file JQuaternion3D.hh.

646  {
647  const double qx = 2.0 * (__c*__z - __d*__y);
648  const double qy = 2.0 * (__d*__x - __b*__z);
649  const double qz = 2.0 * (__b*__y - __c*__x);
650
651  const double x = __x + __c*qz - __d*qy + __a*qx;
652  const double y = __y - __b*qz + __a*qy + __d*qx;
653  const double z = __z + __a*qz + __b*qy - __c*qx;
654
655  __x = x;
656  __y = y;
657  __z = z;
658  }

◆ rotate_back()

void JGEOMETRY3D::JQuaternion3D::rotate_back ( double &  __x,
double &  __y,
double &  __z
) const
inline

Rotate back.

Parameters
__xx value
__yy value
__zz value

Definition at line 668 of file JQuaternion3D.hh.

669  {
670  const double qx = 2.0 * (__d*__y - __c*__z);
671  const double qy = 2.0 * (__b*__z - __d*__x);
672  const double qz = 2.0 * (__c*__x - __b*__y);
673
674  const double x = __x - __c*qz + __d*qy + __a*qx;
675  const double y = __y + __b*qz + __a*qy - __d*qx;
676  const double z = __z + __a*qz - __b*qy + __c*qx;
677
678  __x = x;
679  __y = y;
680  __z = z;
681  }

◆ equals()

bool JGEOMETRY3D::JQuaternion3D::equals ( const JQuaternion3D &  quaternion,
const double  precision = std::numeric_limits<double>::min()
) const
inline

Check equality.

Parameters
quaternionquaternion
precisionnumerical precision
Returns
true if quaternions are equal; else false

Definition at line 691 of file JQuaternion3D.hh.

693  {
694  return (fabs(getA() - quaternion.getA()) <= precision &&
695  fabs(getB() - quaternion.getB()) <= precision &&
696  fabs(getC() - quaternion.getC()) <= precision &&
697  fabs(getD() - quaternion.getD()) <= precision);
698  }

◆ getLengthSquared()

double JGEOMETRY3D::JQuaternion3D::getLengthSquared ( ) const
inline

Get length squared.

Returns
square of length

Definition at line 706 of file JQuaternion3D.hh.

707  {
708  return getA()*getA() + getB()*getB() + getC()*getC() + getD()*getD();
709  }

◆ getLength()

double JGEOMETRY3D::JQuaternion3D::getLength ( ) const
inline

Get length.

Returns
length

Definition at line 717 of file JQuaternion3D.hh.

718  {
719  return sqrt(getLengthSquared());
720  }

◆ getDistanceSquared()

double JGEOMETRY3D::JQuaternion3D::getDistanceSquared ( const JQuaternion3D &  quaternion) const
inline

Get squared of distance to quaternion.

Parameters
quaternionquaternion
Returns
square of distance

Definition at line 729 of file JQuaternion3D.hh.

730  {
731  return JQuaternion3D(quaternion).sub(*this).getLengthSquared();
732  }

◆ getDistance()

double JGEOMETRY3D::JQuaternion3D::getDistance ( const JQuaternion3D &  quaternion) const
inline

Get distance to quaternion.

Parameters
quaternionquaternion
Returns
distance

Definition at line 741 of file JQuaternion3D.hh.

742  {
743  return sqrt(getDistanceSquared(quaternion));
744  }

◆ getDot()

double JGEOMETRY3D::JQuaternion3D::getDot ( const JQuaternion3D &  quaternion) const
inline

Get dot product.

Parameters
quaternionquaternion
Returns
dot product

Definition at line 753 of file JQuaternion3D.hh.

754  {
755  return
756  getA() * quaternion.getA() -
757  getB() * quaternion.getB() -
758  getC() * quaternion.getC() -
759  getD() * quaternion.getD();
760  }

◆ mul() [7/7]

template<class JFirst_t, class JSecond_t>
JFirst_t& JMATH::JMath< JFirst_t, JSecond_t >::mul ( const JSecond_t &  object)
inlineinherited

Multiply with object.

Parameters
objectobject
Returns
result object

Definition at line 273 of file JMath.hh.

274  {
275  return static_cast<JFirst_t&>(*this) = JCalculator<JFirst_t>::calculator.mul(static_cast<const JFirst_t&>(*this), object);
276  }

Friends And Related Function Documentation

◆ operator>> [1/2]

std::istream& operator>> ( std::istream &  in,
JQuaternion3D &  quaternion
)
friend

Write quaternion from input.

Parameters
ininput stream
quaternionquaternion
Returns
input stream

Definition at line 770 of file JQuaternion3D.hh.

771  {
772  in >> quaternion.__a;
773  in >> quaternion.__b;
774  in >> quaternion.__c;
775  in >> quaternion.__d;
776
777  return in;
778  }

◆ operator<< [1/2]

std::ostream& operator<< ( std::ostream &  out,
const JQuaternion3D &  quaternion
)
friend

Write quaternion to output.

Parameters
outoutput stream
quaternionquaternion
Returns
output stream

Definition at line 788 of file JQuaternion3D.hh.

789  {
790  out << quaternion.getA() << ' '
791  << quaternion.getB() << ' '
792  << quaternion.getC() << ' '
793  << quaternion.getD();
794
795  return out;
796  }

◆ operator>> [2/2]

JReader& operator>> ( JReader &  in,
JQuaternion3D &  quaternion
)
friend

Read quaternion from input.

Parameters
inreader
quaternionquaternion
Returns
reader

Definition at line 806 of file JQuaternion3D.hh.

807  {
808  in >> quaternion.__a;
809  in >> quaternion.__b;
810  in >> quaternion.__c;
811  in >> quaternion.__d;
812
813  return in;
814  }

◆ operator<< [2/2]

JWriter& operator<< ( JWriter &  out,
const JQuaternion3D &  quaternion
)
friend

Write quaternion to output.

Parameters
outwriter
quaternionquaternion
Returns
writer

Definition at line 824 of file JQuaternion3D.hh.

825  {
826  out << quaternion.getA();
827  out << quaternion.getB();
828  out << quaternion.getC();
829  out << quaternion.getD();
830
831  return out;
832  }

Member Data Documentation

◆ __a

double JGEOMETRY3D::JQuaternion3D::__a
protected

Definition at line 835 of file JQuaternion3D.hh.

◆ __b

double JGEOMETRY3D::JQuaternion3D::__b
protected

Definition at line 836 of file JQuaternion3D.hh.

◆ __c

double JGEOMETRY3D::JQuaternion3D::__c
protected

Definition at line 837 of file JQuaternion3D.hh.

◆ __d

double JGEOMETRY3D::JQuaternion3D::__d
protected

Definition at line 838 of file JQuaternion3D.hh.

The documentation for this class was generated from the following file:
JGEOMETRY3D::JVersor3D::getDZ
double getDZ() const
Get z direction.
Definition: JVersor3D.hh:114
JGEOMETRY3D::JQuaternion3D::getLengthSquared
double getLengthSquared() const
Get length squared.
Definition: JQuaternion3D.hh:706
JGEOMETRY3D::JQuaternion3D::getDistanceSquared
double getDistanceSquared(const JQuaternion3D &quaternion) const
Get squared of distance to quaternion.
Definition: JQuaternion3D.hh:729
JGEOMETRY3D::JQuaternion3Z::getD
double getD() const
Get d value.
Definition: JQuaternion3D.hh:228
JGEOMETRY3D::JVersor3D
Data structure for normalised vector in three dimensions.
Definition: JVersor3D.hh:23
JGEOMETRY3D::JQuaternion3D::__a
double __a
Definition: JQuaternion3D.hh:835
JGEOMETRY3D::JQuaternion2D::getA
double getA() const
Get a value.
Definition: JQuaternion3D.hh:63
JGEOMETRY3D::JVector3D
Data structure for vector in three dimensions.
Definition: JVector3D.hh:33
JGEOMETRY3D::JQuaternion3D::JQuaternion3D
JQuaternion3D()
Default constructor.
Definition: JQuaternion3D.hh:258
JGEOMETRY3D::JVersor3D::getDX
double getDX() const
Get x direction.
Definition: JVersor3D.hh:92
JGEOMETRY3D::JVersor3D::getDY
double getDY() const
Get y direction.
Definition: JVersor3D.hh:103
JGEOMETRY3D::JQuaternion3D::getB
double getB() const
Get b value.
Definition: JQuaternion3D.hh:396
JGEOMETRY3D::JQuaternion3D::getD
double getD() const
Get d value.
Definition: JQuaternion3D.hh:418
JGEOMETRY3D::JQuaternion3D::__d
double __d
Definition: JQuaternion3D.hh:838
JGEOMETRY3D::JQuaternion3D::getC
double getC() const
Get c value.
Definition: JQuaternion3D.hh:407
JGEOMETRY3D::JQuaternion3X::getB
double getB() const
Get b value.
Definition: JQuaternion3D.hh:156
JMATH::JCalculator
Auxiliary class for arithmetic operations on objects.
Definition: JCalculator.hh:18
JGEOMETRY3D::JQuaternion3Y::getC
double getC() const
Get c value.
Definition: JQuaternion3D.hh:192
JGEOMETRY3D::JQuaternion3D::__c
double __c
Definition: JQuaternion3D.hh:837
JGEOMETRY3D::JQuaternion3D::getA
double getA() const
Get a value.
Definition: JQuaternion3D.hh:385
JGEOMETRY3D::JQuaternion3D::mul
JQuaternion3D & mul(const double factor)
Scale quaternion.
Definition: JQuaternion3D.hh:511
JGEOMETRY3D::JQuaternion3D::__b
double __b
Definition: JQuaternion3D.hh:836
Generated by   doxygen 1.8.16
