KM3NETDAQ::JEventTimeslice Struct Reference

Timeslice with Monte Carlo event. More...

#include <JEventTimeslice.hh>

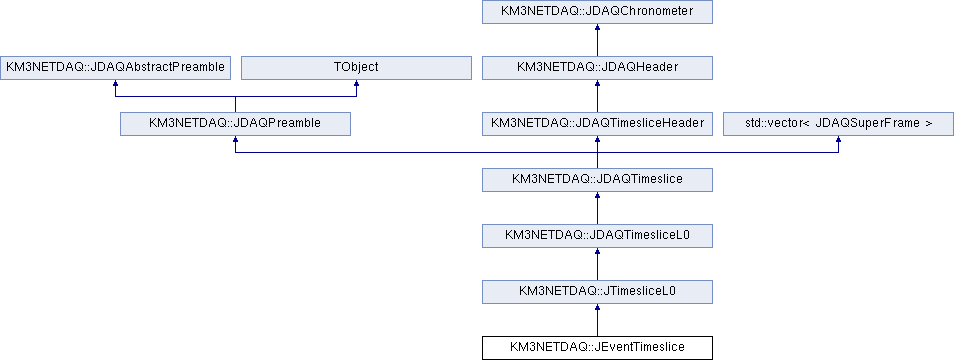

Inheritance diagram for KM3NETDAQ::JEventTimeslice:
KM3NETDAQ::JTimesliceL0 KM3NETDAQ::JDAQTimesliceL0 KM3NETDAQ::JDAQTimeslice KM3NETDAQ::JDAQPreamble KM3NETDAQ::JDAQTimesliceHeader std::vector< JDAQSuperFrame > KM3NETDAQ::JDAQAbstractPreamble TObject KM3NETDAQ::JDAQHeader KM3NETDAQ::JDAQChronometer

Public Member Functions

 JEventTimeslice (const JDAQChronometer &chronometer, const JDetectorSimulator &simbad, const Evt &event, const JTimeRange &period=JTimeRange::DEFAULT_RANGE)
 Constructor. More...

void applyHighRateVeto (const JPMTDefaultSimulatorInterface &pmtSimulator)
 Apply high-rate veto. More...

 ClassDef (JDAQTimesliceL0, 1)

 ClassDef (JDAQTimeslice, 4)

 ClassDef (JDAQPreamble, 1)

 ClassDef (JDAQTimesliceHeader, 2)

 ClassDef (JDAQHeader, 2)

 ClassDef (JDAQChronometer, 3)

void clear ()
 Clear data. More...

JDAQTimeslice & add (const JDAQTimeslice &timeslice)
 Add another timeslice. More...

std::ostream & print (std::ostream &out, const bool lpr=false) const
 Print DAQ Timeslice. More...

int getLength () const
 Get length. More...

int getDataType () const
 Get data type. More...

 ClassDefNV (JDAQAbstractPreamble, 1)

const JDAQTimesliceHeader & getDAQTimesliceHeader () const
 Get DAQ time slice header. More...

const JDAQHeader & getDAQHeader () const
 Get DAQ header. More...

void setDAQHeader (const JDAQHeader &header)
 Set DAQ header. More...

const JDAQChronometer & getDAQChronometer () const
 Get DAQ chronometer. More...

void setDAQChronometer (const JDAQChronometer &chronometer)
 Set DAQ chronometer. More...

int getDetectorID () const
 Get detector identifier. More...

int getRunNumber () const
 Get run number. More...

int getFrameIndex () const
 Get frame index. More...

JDAQUTCExtended getTimesliceStart () const
 Get start of timeslice. More...

void setRunNumber (const int run)
 Set run number. More...

void setFrameIndex (const int frame_index)
 Set frame index. More...

void setTimesliceStart (const JDAQUTCExtended &timeslice_start)
 Set timeslice start time. More...


Static Public Member Functions

template<class T >
static JDAQPreamble getDAQPreamble (const T &object)
 Get DAQ preamble. More...


Protected Attributes

int length

int type

int detector_id

int run

int frame_index

JDAQUTCExtended timeslice_start


Detailed Description

Timeslice with Monte Carlo event.

Definition at line 33 of file JEventTimeslice.hh.

Constructor & Destructor Documentation

◆ JEventTimeslice()

KM3NETDAQ::JEventTimeslice::JEventTimeslice ( const JDAQChronometer &  chronometer,
const JDetectorSimulator &  simbad,
const Evt &  event,
const JTimeRange &  period = JTimeRange::DEFAULT_RANGE
)
inline

Constructor.

This constructor converts the Monte Carlo event to a DAQ timeslice. In this, both the PMT and CLB simulations are applied. If the K40 simulator is available and the given time window is valid, the K40 background is generated and added to the time slice data. N.B. The given time window extends the time range of hits in the event, if any.

Parameters
chronometerchronometer
simbaddetector simulator
eventMonte Carlo event
periodtime window [ns]

Definition at line 51 of file JEventTimeslice.hh.

55  {
56  using namespace std;
57  using namespace JPP;
58
59  setDAQChronometer(chronometer);
60
61
62  if (simbad.hasPMTSimulator() &&
63  simbad.hasCLBSimulator()) {
64
65  const JTimeConverter converter(event, chronometer);
66
67  const JTimeRange timeRange = (period.is_valid() ? getTimeRange(event, period) : getTimeRange(event));
68
69  typedef map<int, JModuleData> JMap_t; // map module index to data
70
71  JMap_t data;
72
73  for (vector<Hit>::const_iterator hit = event.mc_hits.begin(); hit != event.mc_hits.end(); ++hit) {
74
75  if (simbad.hasPMT(hit->pmt_id)) {
76
77  const JPMTAddress& address = simbad.getAddress(hit->pmt_id);
78
79  if (!period.is_valid() || timeRange(getTime(*hit))) {
80
81  data[address.first].resize(NUMBER_OF_PMTS);
82
83  data[address.first][address.second].push_back(JPMTSignal(converter.putTime(getTime(*hit)), (int) getNPE(*hit)));
84  }
85  }
86  }
87
88
89  if (simbad.hasK40Simulator() && period.is_valid()) {
90
91
92  JTimeRange time_range(JTimeRange::DEFAULT_RANGE);
93
94  for (JMap_t::const_iterator i = data.begin(); i != data.end(); ++i) {
95  time_range.combine(getTimeRange(i->second));
96  }
97
98  time_range.add(period);
99
100
101  JModuleData buffer;
102
103  for (JDetector::const_iterator module = simbad->begin(); module != simbad->end(); ++module) {
104
105
106  // signal
107
108  JMap_t::iterator i = data.find(distance(simbad->begin(),module));
109
110  if (i != data.end())
111  buffer.swap(i->second);
112  else
113  buffer.reset(module->size());
114
115
116  // background
117
118  simbad.generateHits(*module, time_range, buffer);
119
120  this->push_back(JDAQSuperFrame(JDAQSuperFrameHeader(chronometer, module->getID())));
121
122  simbad(*module, buffer, *(this->rbegin()));
123  }
124
125  } else {
126
127  for (JMap_t::iterator i = data.begin(); i != data.end(); ++i) {
128
129  const JModule& module = simbad.getModule(JModuleAddress(i->first));
130
131  this->push_back(JDAQSuperFrame(JDAQSuperFrameHeader(chronometer, module.getID())));
132
133  simbad(module, i->second, *(this->rbegin()));
134  }
135  }
136  }
137
138  try {
139  applyHighRateVeto(dynamic_cast<const JPMTDefaultSimulatorInterface&>(simbad.getPMTSimulator()));
140  }
141  catch(const std::exception& error) {};
142  }

Member Function Documentation

◆ applyHighRateVeto()

void KM3NETDAQ::JTimesliceL0::applyHighRateVeto ( const JPMTDefaultSimulatorInterface &  pmtSimulator)
inlineinherited

Apply high-rate veto.

Parameters
pmtSimulatorPMT simulator

Definition at line 40 of file JTimesliceL0.hh.

41  {
42  using namespace JPP;
43
44  for (iterator frame = this->begin(); frame != this->end(); ++frame) {
45
46  for (int pmt = 0; pmt != NUMBER_OF_PMTS; ++pmt) {
47
48  const JPMTIdentifier id(frame->getModuleID(), pmt);
49
50  const bool status = pmtSimulator.getPMTstatus(id);
51
52  frame->setHighRateVeto(pmt, !status);
53  }
54  }
55  }

◆ ClassDef() [1/6]

KM3NETDAQ::JDAQTimesliceL0::ClassDef ( JDAQTimesliceL0  ,
1
)
inherited

◆ ClassDef() [2/6]

KM3NETDAQ::JDAQTimeslice::ClassDef ( JDAQTimeslice  ,
4
)
inherited

◆ ClassDef() [3/6]

KM3NETDAQ::JDAQPreamble::ClassDef ( JDAQPreamble  ,
1
)
inherited

◆ ClassDef() [4/6]

KM3NETDAQ::JDAQTimesliceHeader::ClassDef ( JDAQTimesliceHeader  ,
2
)
inherited

◆ ClassDef() [5/6]

KM3NETDAQ::JDAQHeader::ClassDef ( JDAQHeader  ,
2
)
inherited

◆ ClassDef() [6/6]

KM3NETDAQ::JDAQChronometer::ClassDef ( JDAQChronometer  ,
3
)
inherited

◆ clear()

void KM3NETDAQ::JDAQTimeslice::clear ( )
inlineinherited

Clear data.

Definition at line 97 of file JDAQTimeslice.hh.

98  {
99  for (iterator i = this->begin(); i != this->end(); ++i) {
100  i->clear();
101  }
102
103  std::vector<JDAQSuperFrame>::clear();
104  }

◆ add()

JDAQTimeslice& KM3NETDAQ::JDAQTimeslice::add ( const JDAQTimeslice &  timeslice)
inlineinherited

Add another timeslice.

Parameters
timeslicetimeslice
Returns
this timeslice

Definition at line 133 of file JDAQTimeslice.hh.

134  {
135  using namespace std;
136
137  map<JDAQModuleIdentifier, int> buffer;
138
139  for (const_iterator i = this->begin(); i != this->end(); ++i) {
140  buffer[i->getModuleIdentifier()] = distance(static_cast<const JDAQTimeslice&>(*this).begin(),i);
141  }
142
143  for (JDAQTimeslice::const_iterator i = timeslice.begin(); i != timeslice.end(); ++i) {
144
145  map<JDAQModuleIdentifier, int>::const_iterator p = buffer.find(i->getModuleIdentifier());
146
147  if (p != buffer.end()) {
148
149  JDAQSuperFrame& frame = this->at(p->second);
150
151  frame.add(*i);
152
153  sort(frame.begin(), frame.end());
154
155  } else {
156
157  this->push_back(*i);
158  }
159  }
160
161  return *this;
162  }

◆ print()

std::ostream& KM3NETDAQ::JDAQTimeslice::print ( std::ostream &  out,
const bool  lpr = false
) const
inlineinherited

Print DAQ Timeslice.

Parameters
outoutput stream
lprlong print
Returns
output stream

Definition at line 172 of file JDAQTimeslice.hh.

173  {
174  using namespace std;
175
176  out << this->ClassName() << endl;
177  out << dynamic_cast<const JDAQPreamble&> (*this) << endl;
178  out << dynamic_cast<const JDAQChronometer&>(*this) << endl;
179
180  for (JDAQTimeslice::const_iterator frame = this->begin(); frame != this->end(); ++frame) {
181
182  out << ' ' << setw(10) << frame->getModuleID();
183  out << ' ' << setw(6) << frame->getLength();
184  out << ' ' << setw(6) << frame->getDataType();
185  out << ' ' << setw(6) << frame->getTimesliceStart();
186  out << ' ' << setw(8) << setfill('0') << hex << frame->getStatus() << dec << setfill(' ');
187  out << '|' << setw(8) << setfill('0') << hex << frame->getFIFOStatus() << dec << setfill(' ');
188  out << ' ' << setw(6) << frame->size();
189
190  if (!lpr) {
191
192  if (!frame->empty()) {
193
194  out << ' ' << setw(10) << frame-> begin()->getT();
195  out << " ... ";
196  out << ' ' << setw(10) << frame->rbegin()->getT();
197  }
198
199  out << endl;
200
201  } else {
202
203  out << endl;
204
205  int n = 1;
206
207  for (JDAQFrame::const_iterator hit = frame->begin(); hit != frame->end(); ++hit, ++n) {
208  out << setw(2) << (int) hit->getPMT() << ' ' << setw(8) << hit->getT() << (n%10 == 0 ? '\n' : ' ');
209  }
210
211  out << endl;
212  }
213  }
214
215  return out;
216  }

◆ getDAQPreamble()

template<class T >
static JDAQPreamble KM3NETDAQ::JDAQPreamble::getDAQPreamble ( const T &  object)
inlinestaticinherited

Get DAQ preamble.

This method should be used for binary I/O to get the actual data for the given object.
To this end, the following method should be overloaded for the corresponding data type.

   size_t  getSizeof(const T&);
Parameters
objectobject
Returns
preamble

Definition at line 76 of file JDAQPreamble.hh.

77  {
78  static JDAQPreamble preamble;
79
80  preamble.length = getSizeof(object);
81  preamble.type = KM3NETDAQ::getDataType<T>();
82
83  return preamble;
84  }

◆ getLength()

int KM3NETDAQ::JDAQAbstractPreamble::getLength ( ) const
inlineinherited

Get length.

Returns
number of bytes

Definition at line 49 of file JDAQAbstractPreamble.hh.

50  {
51  return length;
52  }

◆ getDataType()

int KM3NETDAQ::JDAQAbstractPreamble::getDataType ( ) const
inlineinherited

Get data type.

Returns
data type

Definition at line 60 of file JDAQAbstractPreamble.hh.

61  {
62  return type;
63  }

◆ ClassDefNV()

KM3NETDAQ::JDAQAbstractPreamble::ClassDefNV ( JDAQAbstractPreamble  ,
1
)
inherited

◆ getDAQTimesliceHeader()

const JDAQTimesliceHeader& KM3NETDAQ::JDAQTimesliceHeader::getDAQTimesliceHeader ( ) const
inlineinherited

Get DAQ time slice header.

Returns
DAQ time slice header

Definition at line 43 of file JDAQTimesliceHeader.hh.

44  {
45  return static_cast<const JDAQTimesliceHeader&>(*this);
46  }

◆ getDAQHeader()

const JDAQHeader& KM3NETDAQ::JDAQHeader::getDAQHeader ( ) const
inlineinherited

Get DAQ header.

Returns
DAQ header

Definition at line 49 of file JDAQHeader.hh.

50  {
51  return static_cast<const JDAQHeader&>(*this);
52  }

◆ setDAQHeader()

void KM3NETDAQ::JDAQHeader::setDAQHeader ( const JDAQHeader &  header)
inlineinherited

Set DAQ header.

Parameters
headerDAQ header

Definition at line 60 of file JDAQHeader.hh.

61  {
62  static_cast<JDAQHeader&>(*this) = header;
63  }

◆ getDAQChronometer()

const JDAQChronometer& KM3NETDAQ::JDAQChronometer::getDAQChronometer ( ) const
inlineinherited

Get DAQ chronometer.

Returns
DAQ chronometer

Definition at line 88 of file JDAQChronometer.hh.

89  {
90  return static_cast<const JDAQChronometer&>(*this);
91  }

◆ setDAQChronometer()

void KM3NETDAQ::JDAQChronometer::setDAQChronometer ( const JDAQChronometer &  chronometer)
inlineinherited

Set DAQ chronometer.

Parameters
chronometerDAQ chronometer

Definition at line 99 of file JDAQChronometer.hh.

100  {
101  static_cast<JDAQChronometer&>(*this) = chronometer;
102  }

◆ getDetectorID()

int KM3NETDAQ::JDAQChronometer::getDetectorID ( ) const
inlineinherited

Get detector identifier.

Returns
detector identifier

Definition at line 110 of file JDAQChronometer.hh.

111  {
112  return detector_id;
113  }

◆ getRunNumber()

int KM3NETDAQ::JDAQChronometer::getRunNumber ( ) const
inlineinherited

Get run number.

Returns
run number

Definition at line 121 of file JDAQChronometer.hh.

122  {
123  return run;
124  }

◆ getFrameIndex()

int KM3NETDAQ::JDAQChronometer::getFrameIndex ( ) const
inlineinherited

Get frame index.

Returns
frame index

Definition at line 132 of file JDAQChronometer.hh.

133  {
134  return frame_index;
135  }

◆ getTimesliceStart()

JDAQUTCExtended KM3NETDAQ::JDAQChronometer::getTimesliceStart ( ) const
inlineinherited

Get start of timeslice.

Returns
timeslice start

Definition at line 144 of file JDAQChronometer.hh.

145  {
146  return timeslice_start;
147  }

◆ setRunNumber()

void KM3NETDAQ::JDAQChronometer::setRunNumber ( const int  run)
inlineinherited

Set run number.

Parameters
runrun number

Definition at line 155 of file JDAQChronometer.hh.

156  {
157  this->run = run;
158  }

◆ setFrameIndex()

void KM3NETDAQ::JDAQChronometer::setFrameIndex ( const int  frame_index)
inlineinherited

Set frame index.

Parameters
frame_indexframe index

Definition at line 166 of file JDAQChronometer.hh.

167  {
168  this->frame_index = frame_index;
169  }

◆ setTimesliceStart()

void KM3NETDAQ::JDAQChronometer::setTimesliceStart ( const JDAQUTCExtended &  timeslice_start)
inlineinherited

Set timeslice start time.

Parameters
timeslice_starttimeslice start time

Definition at line 177 of file JDAQChronometer.hh.

178  {
179  this->timeslice_start = timeslice_start;
180  }

Member Data Documentation

◆ length

int KM3NETDAQ::JDAQAbstractPreamble::length
protectedinherited

Definition at line 69 of file JDAQAbstractPreamble.hh.

◆ type

int KM3NETDAQ::JDAQAbstractPreamble::type
protectedinherited

Definition at line 70 of file JDAQAbstractPreamble.hh.

◆ detector_id

int KM3NETDAQ::JDAQChronometer::detector_id
protectedinherited

Definition at line 187 of file JDAQChronometer.hh.

◆ run

int KM3NETDAQ::JDAQChronometer::run
protectedinherited

Definition at line 188 of file JDAQChronometer.hh.

◆ frame_index

int KM3NETDAQ::JDAQChronometer::frame_index
protectedinherited

Definition at line 189 of file JDAQChronometer.hh.

◆ timeslice_start

JDAQUTCExtended KM3NETDAQ::JDAQChronometer::timeslice_start
protectedinherited

Definition at line 190 of file JDAQChronometer.hh.

The documentation for this struct was generated from the following file:
KM3NETDAQ::JDAQChronometer::setDAQChronometer
void setDAQChronometer(const JDAQChronometer &chronometer)
Set DAQ chronometer.
Definition: JDAQChronometer.hh:99
std::iterator
Definition: JSTDTypes.hh:18
JDETECTOR::JModuleAddress::first
int first
index of module in detector data structure
Definition: JModuleAddress.hh:90
JAANET::getTimeRange
JTimeRange getTimeRange(const Evt &event)
Get time range (i.e.
Definition: JAAnetToolkit.hh:134
KM3NETDAQ::JDAQChronometer::timeslice_start
JDAQUTCExtended timeslice_start
Definition: JDAQChronometer.hh:190
JDETECTOR::JModuleData
Data structure for PMT data corresponding to a detector module.
Definition: JPMTSimulator.hh:211
KM3NETDAQ::JDAQAbstractPreamble::length
int length
Definition: JDAQAbstractPreamble.hh:69
JTOOLS::n
const int n
Definition: JPolint.hh:628
std::vector
Definition: JSTDTypes.hh:12
JTOOLS::JRange< double >
JAANET::getNPE
double getNPE(const Hit &hit)
Get true charge of hit.
Definition: JAAnetToolkit.hh:104
JDETECTOR::JPMTRouter::hasPMT
bool hasPMT(const JObjectID &id) const
Has PMT.
Definition: JPMTRouter.hh:114
JTRIGGER::JTimeConverter
Auxiliary class to convert DAQ/trigger hit time to/from Monte Carlo hit time.
Definition: JTimeConverter.hh:36
JTOOLS::JRange< double >::DEFAULT_RANGE
static const JRange< double, std::less< double > > DEFAULT_RANGE
Default range.
Definition: JRange.hh:558
KM3NETDAQ::NUMBER_OF_PMTS
static const int NUMBER_OF_PMTS
Total number of PMTs in module.
Definition: JDAQ.hh:26
distance
std::vector< T >::difference_type distance(typename std::vector< T >::const_iterator first, typename PhysicsEvent::const_iterator< T > second)
Specialisation of STL distance.
Definition: PhysicsEvent.hh:434
JPP
This name space includes all other name spaces (except KM3NETDAQ, KM3NET and ANTARES).
Definition: JAAnetToolkit.hh:37
JDETECTOR::JDetectorSimulator::hasPMTSimulator
bool hasPMTSimulator() const
Check availability of PMT simulator.
Definition: JDetectorSimulator.hh:80
JLANG::JObjectID::getID
int getID() const
Get identifier.
Definition: JObjectID.hh:55
JDETECTOR::JModuleAddress
Address of module in detector data structure.
Definition: JModuleAddress.hh:30
JAANET::getTime
double getTime(const Hit &hit)
Get true time of hit.
Definition: JAAnetToolkit.hh:87
JDETECTOR::JModule
Data structure for a composite optical module.
Definition: JModule.hh:49
JDETECTOR::JPMTRouter::getAddress
const JPMTAddress & getAddress(const JObjectID &id) const
Get address of PMT.
Definition: JPMTRouter.hh:78
KM3NETDAQ::JDAQChronometer::frame_index
int frame_index
Definition: JDAQChronometer.hh:189
KM3NETDAQ::JDAQSuperFrameHeader
DAQ super frame header.
Definition: JDAQSuperFrameHeader.hh:19
std::map
Definition: JSTDTypes.hh:16
JTOOLS::JRange::is_valid
bool is_valid() const
Check validity of range.
Definition: JRange.hh:313
JDETECTOR::JPMTAddress
Address of PMT in detector data structure.
Definition: JPMTAddress.hh:32
JDETECTOR::JPMTIdentifier
PMT identifier.
Definition: JPMTIdentifier.hh:30
KM3NETDAQ::JDAQSuperFrame::add
JDAQSuperFrame & add(const JDAQSuperFrame &super_frame)
Add data from same optical module.
Definition: JDAQSuperFrame.hh:78
std
Definition: jaanetDictionary.h:36
KM3NETDAQ::JTimesliceL0::applyHighRateVeto
void applyHighRateVeto(const JPMTDefaultSimulatorInterface &pmtSimulator)
Apply high-rate veto.
Definition: JTimesliceL0.hh:40
KM3NETDAQ::JDAQChronometer::run
int run
Definition: JDAQChronometer.hh:188
KM3NETDAQ::JDAQSuperFrame
Data frame of one optical module.
Definition: JDAQSuperFrame.hh:22
JDETECTOR::JDetectorSimulator::hasK40Simulator
bool hasK40Simulator() const
Check availability of K40 simulator.
Definition: JDetectorSimulator.hh:68
KM3NETDAQ::JDAQAbstractPreamble::type
int type
Definition: JDAQAbstractPreamble.hh:70
JDETECTOR::JDetectorSimulator::getPMTSimulator
const JPMTSimulator & getPMTSimulator() const
Get PMT simulator.
Definition: JDetectorSimulator.hh:116
JDETECTOR::JPMTSignal
Data structure for PMT analogue signal.
Definition: JPMTSimulator.hh:76
JDETECTOR::JDetectorSimulator::generateHits
virtual void generateHits(const JModule &module, const JTimeRange &period, JModuleData &output) const
Generate hits.
Definition: JDetectorSimulator.hh:180
JDETECTOR::JModuleData::reset
void reset(size_t size)
Reset buffers.
Definition: JPMTSimulator.hh:228
KM3NETDAQ::JDAQFrame::const_iterator
const typedef JDAQHit * const_iterator
Definition: JDAQFrame.hh:68
Evt::mc_hits
std::vector< Hit > mc_hits
MC: list of MC truth hits.
Definition: Evt.hh:44
KM3NETDAQ::JDAQFrame::begin
const_iterator begin() const
Definition: JDAQFrame.hh:136
JDETECTOR::JPMTDefaultSimulatorInterface::getPMTstatus
virtual bool getPMTstatus(const JPMTIdentifier &id) const
Get PMT status.
Definition: JPMTDefaultSimulatorInterface.hh:57
KM3NETDAQ::JDAQPreamble::getSizeof
friend size_t getSizeof()
Definition of method to get size of data type.
JDETECTOR::JDetectorSimulator::hasCLBSimulator
bool hasCLBSimulator() const
Check availability of CLB simulator.
Definition: JDetectorSimulator.hh:91
JDETECTOR::JPMTRouter::getModule
const JModule & getModule(const JModuleAddress &address) const
Get module.
Definition: JPMTRouter.hh:150
KM3NETDAQ::JDAQFrame::end
const_iterator end() const
Definition: JDAQFrame.hh:137
JDETECTOR::JPMTAddress::second
int second
index of PMT in module data structure.
Definition: JPMTAddress.hh:100
KM3NETDAQ::JDAQPreamble
DAQ preamble.
Definition: JDAQPreamble.hh:26
KM3NETDAQ::JDAQChronometer::detector_id
int detector_id
Definition: JDAQChronometer.hh:187
Generated by   doxygen 1.8.16
