JACOUSTICS::JKatoomba_t::H_t Struct Reference

H-equation as per hit. More...

#include <JKatoomba.hh>

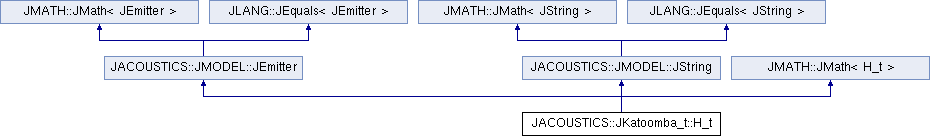

Inheritance diagram for JACOUSTICS::JKatoomba_t::H_t:
JACOUSTICS::JMODEL::JEmitter JACOUSTICS::JMODEL::JString JMATH::JMath< JFirst_t, JSecond_t > JMATH::JMath< JFirst_t, JSecond_t > JLANG::JEquals< JFirst_t, JSecond_t > JMATH::JMath< JFirst_t, JSecond_t > JLANG::JEquals< JFirst_t, JSecond_t >

Public Member Functions

 H_t ()
 Default constructor. More...

 H_t (const JMODEL::JEmitter &emitter, const JMODEL::JString &string)
 Constructor. More...

H_t & mul (const double factor)
 Scale H-equation. More...

JEmitter & negate ()
 Negate emitter. More...

JEmitter & add (const JEmitter &emitter)
 Add emitter. More...

JEmitter & sub (const JEmitter &emitter)
 Subtract emitter. More...

JFirst_t & mul (const JSecond_t &object)
 Multiply with object. More...

JEmitter & div (const double factor)
 Scale emitter. More...

bool equals (const JEmitter &emitter, const double precision=std::numeric_limits< double >::min()) const
 Check equality. More...

JString & negate ()
 Negate string. More...

JString & add (const JString &string)
 Add string. More...

JString & sub (const JString &string)
 Subtract string. More...

JFirst_t & mul (const JSecond_t &object)
 Multiply with object. More...

JString & div (const double factor)
 Scale string. More...

bool equals (const JString &string, const double precision=std::numeric_limits< double >::min()) const
 Check equality. More...

double getLengthSquared () const
 Get length squared. More...

double getLength () const
 Get length. More...

double getAngle () const
 Get angle. More...

double getDot (const JString &string) const
 Get dot product. More...

JFirst_t & mul (const JSecond_t &object)
 Multiply with object. More...


Public Attributes

double t1

double tx

double ty


Detailed Description

H-equation as per hit.

Definition at line 100 of file JKatoomba.hh.

Constructor & Destructor Documentation

JACOUSTICS::JKatoomba_t::H_t::H_t ( )
inline

Default constructor.

Definition at line 108 of file JKatoomba.hh.

108  :
109  JMODEL::JEmitter(),
110  JMODEL::JString ()
111  {}
JACOUSTICS::JKatoomba_t::H_t::H_t ( const JMODEL::JEmitter &  emitter,
const JMODEL::JString &  string
)
inline

Constructor.

Parameters
emitteremitter
stringstring

Definition at line 120 of file JKatoomba.hh.

121  :
122  JMODEL::JEmitter(emitter),
123  JMODEL::JString (string)
124  {}

Member Function Documentation

H_t& JACOUSTICS::JKatoomba_t::H_t::mul ( const double  factor)
inline

Scale H-equation.

Parameters
factormultiplication factor
Returns
this H-equation

Definition at line 133 of file JKatoomba.hh.

134  {
135  static_cast<JMODEL::JEmitter&>(*this).mul(factor);
136  static_cast<JMODEL::JString&> (*this).mul(factor);
137
138  return *this;
139  }
JACOUSTICS::JMODEL::JString::mul
JString & mul(const double factor)
Scale string.
Definition: JAcoustics/JModel.hh:123
JACOUSTICS::JMODEL::JEmitter::mul
JEmitter & mul(const double factor)
Scale emitter.
Definition: JAcoustics/JModel.hh:315
JEmitter& JACOUSTICS::JMODEL::JEmitter::negate ( )
inlineinherited

Negate emitter.

Returns
this emitter

Definition at line 273 of file JAcoustics/JModel.hh.

274  {
275  t1 = -t1;
276
277  return *this;
278  }
JEmitter& JACOUSTICS::JMODEL::JEmitter::add ( const JEmitter &  emitter)
inlineinherited

Add emitter.

Parameters
emitteremitter
Returns
this emitter

Definition at line 287 of file JAcoustics/JModel.hh.

288  {
289  t1 += emitter.t1;
290
291  return *this;
292  }
JEmitter& JACOUSTICS::JMODEL::JEmitter::sub ( const JEmitter &  emitter)
inlineinherited

Subtract emitter.

Parameters
emitteremitter
Returns
this emitter

Definition at line 301 of file JAcoustics/JModel.hh.

302  {
303  t1 -= emitter.t1;
304
305  return *this;
306  }
template<class JFirst_t, class JSecond_t = JNullType>
JFirst_t& JMATH::JMath< JFirst_t, JSecond_t >::mul ( const JSecond_t &  object)
inlineinherited

Multiply with object.

Parameters
objectobject
Returns
result object

Definition at line 357 of file JMath.hh.

358  {
359  return static_cast<JFirst_t&>(*this) = JCalculator<JFirst_t>::calculator.mul(static_cast<const JFirst_t&>(*this), object);
360  }
JMATH::JCalculator
Auxiliary class for arithmetic operations on objects.
Definition: JCalculator.hh:18
JEmitter& JACOUSTICS::JMODEL::JEmitter::div ( const double  factor)
inlineinherited

Scale emitter.

Parameters
factordivision factor
Returns
this emitter

Definition at line 329 of file JAcoustics/JModel.hh.

330  {
331  t1 /= factor;
332
333  return *this;
334  }
bool JACOUSTICS::JMODEL::JEmitter::equals ( const JEmitter &  emitter,
const double  precision = std::numeric_limits<double>::min()
) const
inlineinherited

Check equality.

Parameters
emitteremitter
precisionprecision
Returns
true if emitters are equal; else false

Definition at line 344 of file JAcoustics/JModel.hh.

346  {
347  return (fabs(t1 - emitter.t1) <= precision);
348  }
JString& JACOUSTICS::JMODEL::JString::negate ( )
inlineinherited

Negate string.

Returns
this string

Definition at line 78 of file JAcoustics/JModel.hh.

79  {
80  tx = -tx;
81  ty = -ty;
82
83  return *this;
84  }
JString& JACOUSTICS::JMODEL::JString::add ( const JString &  string)
inlineinherited

Add string.

Parameters
stringstring
Returns
this string

Definition at line 93 of file JAcoustics/JModel.hh.

94  {
95  tx += string.tx;
96  ty += string.ty;
97
98  return *this;
99  }
JString& JACOUSTICS::JMODEL::JString::sub ( const JString &  string)
inlineinherited

Subtract string.

Parameters
stringstring
Returns
this string

Definition at line 108 of file JAcoustics/JModel.hh.

109  {
110  tx -= string.tx;
111  ty -= string.ty;
112
113  return *this;
114  }
template<class JFirst_t, class JSecond_t = JNullType>
JFirst_t& JMATH::JMath< JFirst_t, JSecond_t >::mul ( const JSecond_t &  object)
inlineinherited

Multiply with object.

Parameters
objectobject
Returns
result object

Definition at line 357 of file JMath.hh.

358  {
359  return static_cast<JFirst_t&>(*this) = JCalculator<JFirst_t>::calculator.mul(static_cast<const JFirst_t&>(*this), object);
360  }
JMATH::JCalculator
Auxiliary class for arithmetic operations on objects.
Definition: JCalculator.hh:18
JString& JACOUSTICS::JMODEL::JString::div ( const double  factor)
inlineinherited

Scale string.

Parameters
factordivision factor
Returns
this string

Definition at line 138 of file JAcoustics/JModel.hh.

139  {
140  tx /= factor;
141  ty /= factor;
142
143  return *this;
144  }
bool JACOUSTICS::JMODEL::JString::equals ( const JString &  string,
const double  precision = std::numeric_limits<double>::min()
) const
inlineinherited

Check equality.

Parameters
stringstring
precisionprecision
Returns
true if strings are equal; else false

Definition at line 154 of file JAcoustics/JModel.hh.

156  {
157  return (fabs(tx - string.tx) <= precision &&
158  fabs(ty - string.ty) <= precision);
159  }
double JACOUSTICS::JMODEL::JString::getLengthSquared ( ) const
inlineinherited

Get length squared.

Returns
square of length

Definition at line 167 of file JAcoustics/JModel.hh.

168  {
169  return tx*tx + ty*ty;
170  }
double JACOUSTICS::JMODEL::JString::getLength ( ) const
inlineinherited

Get length.

Returns
length

Definition at line 178 of file JAcoustics/JModel.hh.

179  {
180  return sqrt(getLengthSquared());
181  }
JACOUSTICS::JMODEL::JString::getLengthSquared
double getLengthSquared() const
Get length squared.
Definition: JAcoustics/JModel.hh:167
double JACOUSTICS::JMODEL::JString::getAngle ( ) const
inlineinherited

Get angle.

Returns
angle [rad]

Definition at line 189 of file JAcoustics/JModel.hh.

190  {
191  return atan2(ty, tx);
192  }
double JACOUSTICS::JMODEL::JString::getDot ( const JString &  string) const
inlineinherited

Get dot product.

Parameters
stringstring
Returns
dot product

Definition at line 201 of file JAcoustics/JModel.hh.

202  {
203  return (tx * string.tx +
204  ty * string.ty);
205  }
template<class JFirst_t, class JSecond_t = JNullType>
JFirst_t& JMATH::JMath< JFirst_t, JSecond_t >::mul ( const JSecond_t &  object)
inlineinherited

Multiply with object.

Parameters
objectobject
Returns
result object

Definition at line 357 of file JMath.hh.

358  {
359  return static_cast<JFirst_t&>(*this) = JCalculator<JFirst_t>::calculator.mul(static_cast<const JFirst_t&>(*this), object);
360  }
JMATH::JCalculator
Auxiliary class for arithmetic operations on objects.
Definition: JCalculator.hh:18

Member Data Documentation

double JACOUSTICS::JMODEL::JEmitter::t1
inherited

Definition at line 367 of file JAcoustics/JModel.hh.

double JACOUSTICS::JMODEL::JString::tx
inherited

Definition at line 238 of file JAcoustics/JModel.hh.

double JACOUSTICS::JMODEL::JString::ty
inherited

Definition at line 239 of file JAcoustics/JModel.hh.

The documentation for this struct was generated from the following file:
