JACOUSTICS::JMatch3D Class Reference

3D match criterion for acoustic signals. More...

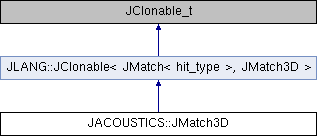

Inheritance diagram for JACOUSTICS::JMatch3D:

Public Types
typedef JClonable< JClonable_t > ::clone_type	clone_type

Public Member Functions
	JMatch3D (const JSoundVelocity &V, const double Tmax_s=0.0)
	Constructor. More...
virtual bool	operator() (const hit_type &first, const hit_type &second) const override
	Match operator. More...
virtual clone_type	clone () const override
	Get clone of this object. More...

Public Attributes
const JSoundVelocity	V
const double	Tmax_s

Detailed Description

3D match criterion for acoustic signals.

Definition at line 86 of file JAcousticsTriggerProcessor.cc.

Member Typedef Documentation

template<class JClonable_t, class JDerived_t = JNullType>

typedef JClonable<JClonable_t>::clone_type JLANG::JClonable< JClonable_t, JDerived_t >::clone_type

inherited

Definition at line 61 of file JClonable.hh.

Constructor & Destructor Documentation

JACOUSTICS::JMatch3D::JMatch3D ( const JSoundVelocity &  V, const double  Tmax_s = 0.0  )

inline

Constructor.

Parameters

V	sound velocity
Tmax_s	maximal extra time [s]

Definition at line 96 of file JAcousticsTriggerProcessor.cc.

                                                                 :
      V(V),
      Tmax_s(Tmax_s)
    {}

Member Function Documentation

virtual bool JACOUSTICS::JMatch3D::operator() ( const hit_type &  first, const hit_type &  second  ) const

inlineoverridevirtual

Match operator.

Parameters

first	hit
second	hit

Returns

match result

Definition at line 109 of file JAcousticsTriggerProcessor.cc.

    {
      using namespace JPP;

      const double t1 = V.getTime(getDistance(first.getPosition(), second.getPosition()),
                                  first .getZ(),
                                  second.getZ());

      const double dt = fabs(first.getToA() - second.getToA());

      return dt <= t1  +  Tmax_s;
    }

template<class JClonable_t, class JDerived_t = JNullType>

virtual clone_type JLANG::JClonable< JClonable_t, JDerived_t >::clone ( ) const

inlineoverridevirtualinherited

Get clone of this object.

Returns

pointer to newly created object

Reimplemented in JPHYSICS::JPDFTransformer< 5, JArgument_t >, JPHYSICS::JPDFTransformer< 4, JArgument_t >, JPHYSICS::JPDFTransformer< 3, JArgument_t >, JPHYSICS::JPDFTransformer< 2, JArgument_t >, JPHYSICS::JPDGTransformer_t< JArgument_t >, JPHYSICS::JPD0Transformer_t< JArgument_t >, JTOOLS::JMultiMapTransformer< N, JArgument_t >::JMultiMapDefaultTransformer, JPHYSICS::JPDFTransformer_t< JArgument_t >, JLANG::JClonable< JMatch< hit_type > >, JLANG::JClonable< JMatch< hit_type >, JMatch3D >, JLANG::JClonable< JMatch< JTRIGGER::JHitR1 > >, and JLANG::JClonable< JMatch< JTRIGGER::JHitR1 >, JMatch3G< JTRIGGER::JHitR1 > >.

Definition at line 69 of file JClonable.hh.

    {
      return new JDerived_t(static_cast<const JDerived_t&>(*this));
    }

Member Data Documentation

const JSoundVelocity JACOUSTICS::JMatch3D::V

Definition at line 123 of file JAcousticsTriggerProcessor.cc.

const double JACOUSTICS::JMatch3D::Tmax_s

Definition at line 124 of file JAcousticsTriggerProcessor.cc.

---

The documentation for this class was generated from the following file:

• JAcousticsTriggerProcessor.cc
