JAANET::JDiffuseFlux Struct Reference

Low-level interface for diffuse fluxes. More...

#include <JDiffuseFlux.hh>

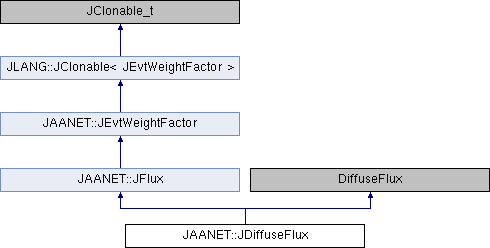

Inheritance diagram for JAANET::JDiffuseFlux:
JAANET::JFlux JAANET::JEvtWeightFactor JLANG::JClonable< JClonable_t, JDerived_t >

Public Types

typedef JClonable< JClonable_t >
::clone_type 		clone_type


Public Member Functions

virtual ~JDiffuseFlux ()
 Virtual destructor. More...

double getFactor (const Evt &evt) const override
 Get event-weight factor for given event. More...

double getFactor (const int type, const double log10E, const double costh) const
 Get event-weight factor for given particle PDG-identifier, energy and zenith-angle. More...

double getFlux (const int type, const double log10E, const double costh) const
 Get event-weight factor for given particle PDG-identifier, energy and zenith-angle. More...

virtual void Print () override
 Print flux information. More...

virtual double getFlux (const Evt &evt) const
 Get flux of given event. More...

virtual clone_type clone () const override
 Get clone of this object. More...


Detailed Description

Low-level interface for diffuse fluxes.

Definition at line 24 of file JDiffuseFlux.hh.

Member Typedef Documentation

template<class JClonable_t, class JDerived_t = JNullType>
typedef JClonable<JClonable_t>::clone_type JLANG::JClonable< JClonable_t, JDerived_t >::clone_type
inherited

Definition at line 61 of file JClonable.hh.

Constructor & Destructor Documentation

virtual JAANET::JDiffuseFlux::~JDiffuseFlux ( )
inlinevirtual

Virtual destructor.

Definition at line 31 of file JDiffuseFlux.hh.

32  {}

Member Function Documentation

double JAANET::JDiffuseFlux::getFactor ( const Evt &  evt) const
inlineoverridevirtual

Get event-weight factor for given event.

Parameters
evtevent
Returns
event-weight factor [GeV^-1 * m^-2 * sr^-1 * s^-1]

Implements JAANET::JEvtWeightFactor.

Definition at line 41 of file JDiffuseFlux.hh.

42  {
43  const Trk& neutrino = get_neutrino(evt);
44  const double log10E = log10(neutrino.E);
45  const double costh = neutrino.dir.z / neutrino.dir.len();
46
47  return dNdEdOmega(neutrino.type, log10E, costh);
48  }
Vec::z
double z
Definition: Vec.hh:14
Trk::dir
Vec dir
track direction
Definition: Trk.hh:18
Trk::E
double E
Energy [GeV] (either MC truth or reconstructed)
Definition: Trk.hh:20
Vec::len
double len() const
Get length.
Definition: Vec.hh:145
log10
set_variable E_E log10(E_{fit}/E_{#mu})"
Trk::type
int type
MC: particle type in PDG encoding.
Definition: Trk.hh:24
JAANET::get_neutrino
const Trk & get_neutrino(const Evt &evt)
Get incoming neutrino.
Definition: JAAnetToolkit.hh:438
Trk
The Trk class represents a Monte Carlo (MC) particle as well as a reconstructed track/shower.
Definition: Trk.hh:14
double JAANET::JDiffuseFlux::getFactor ( const int  type,
const double  log10E,
const double  costh
) const
inline

Get event-weight factor for given particle PDG-identifier, energy and zenith-angle.

Parameters
typePDG particle type
log10Elogarithmic energy
costhcosine zenith angle
Returns
diffuse flux [GeV^-1 * m^-2 * sr^-1 * s^-1]

Definition at line 59 of file JDiffuseFlux.hh.

62  {
63  return dNdEdOmega(type, log10E, costh);
64  }
double JAANET::JDiffuseFlux::getFlux ( const int  type,
const double  log10E,
const double  costh
) const
inline

Get event-weight factor for given particle PDG-identifier, energy and zenith-angle.

Parameters
typePDG particle type
log10Elogarithmic energy
costhcosine zenith angle
Returns
diffuse flux [GeV^-1 * m^-2 * sr^-1 * s^-1]

Definition at line 75 of file JDiffuseFlux.hh.

78  {
79  return dNdEdOmega(type, log10E, costh);
80  }
virtual void JAANET::JDiffuseFlux::Print ( )
inlineoverridevirtual

Print flux information.

Definition at line 86 of file JDiffuseFlux.hh.

87  {
88  prnt(std::cout);
89  }
virtual double JAANET::JFlux::getFlux ( const Evt &  evt) const
inlinevirtualinherited

Get flux of given event.

Parameters
evtevent
Returns
flux [GeV^-1 * m^-2 * sr^-1 * s^-1]

Definition at line 34 of file JFlux.hh.

35  {
36  return getFactor(evt);
37  }
JAANET::JEvtWeightFactor::getFactor
virtual double getFactor(const Evt &evt) const =0
Get multiplication factor of given event.
template<class JClonable_t, class JDerived_t = JNullType>
virtual clone_type JLANG::JClonable< JClonable_t, JDerived_t >::clone ( ) const
inlineoverridevirtualinherited

Get clone of this object.

Returns
pointer to newly created object

Reimplemented in JPHYSICS::JPDFTransformer< 5, JArgument_t >, JPHYSICS::JPDFTransformer< 4, JArgument_t >, JPHYSICS::JPDFTransformer< 3, JArgument_t >, JPHYSICS::JPDFTransformer< 2, JArgument_t >, JPHYSICS::JPDGTransformer_t< JArgument_t >, JPHYSICS::JPD0Transformer_t< JArgument_t >, JTOOLS::JMultiMapTransformer< N, JArgument_t >::JMultiMapDefaultTransformer, JPHYSICS::JPDFTransformer_t< JArgument_t >, JLANG::JClonable< JMatch< hit_type > >, JLANG::JClonable< JMatch< hit_type >, JMatch3D >, JLANG::JClonable< JMatch< JTRIGGER::JHitR1 > >, and JLANG::JClonable< JMatch< JTRIGGER::JHitR1 >, JMatch3G< JTRIGGER::JHitR1 > >.

Definition at line 69 of file JClonable.hh.

70  {
71  return new JDerived_t(static_cast<const JDerived_t&>(*this));
72  }
The documentation for this struct was generated from the following file:
