JDAQStateMachine Class Reference

#include <JDAQCHSM.hh>

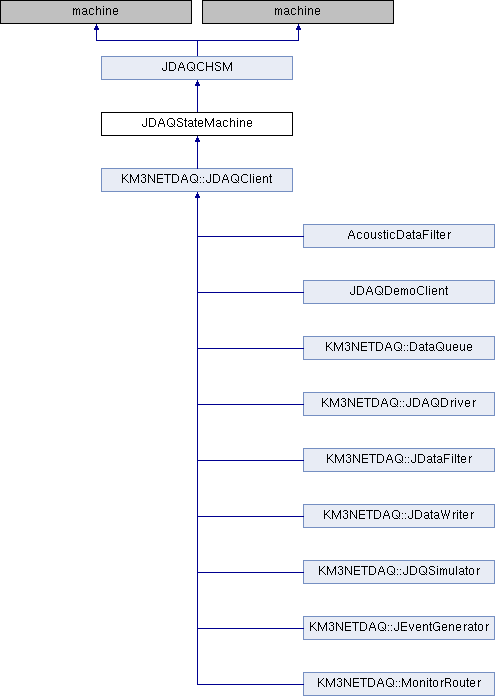

Inheritance diagram for JDAQStateMachine:

Classes
class	ev_check_event
class	ev_configure_event
class	ev_continue_event
class	ev_daq_event
class	ev_error_event
class	ev_init_event
class	ev_input_event
class	ev_off_event
class	ev_pause_event
class	ev_quit_event
class	ev_recover_event
class	ev_reset_event
class	ev_start_event
class	ev_stop_event
class	state_Main
class	state_root

Public Member Functions
	JDAQStateMachine (const std::string)
	~JDAQStateMachine ()
void	A1 (CHSM_ns_alias::event const &)
void	A2 (CHSM_ns_alias::event const &)
void	A3 (CHSM_ns_alias::event const &)
void	A4 (CHSM_ns_alias::event const &)
void	A5 (CHSM_ns_alias::event const &)
void	A6 (CHSM_ns_alias::event const &)
void	A7 (CHSM_ns_alias::event const &)
void	A8 (CHSM_ns_alias::event const &)
void	A9 (CHSM_ns_alias::event const &)
void	A10 (CHSM_ns_alias::event const &)
void	A11 (CHSM_ns_alias::event const &)
void	A12 (CHSM_ns_alias::event const &)
void	A13 (CHSM_ns_alias::event const &)
void	A14 (CHSM_ns_alias::event const &)
void	EAM4root (CHSM_ns_alias::state const &, CHSM_ns_alias::event const &)
void	XAM4root (CHSM_ns_alias::state const &, CHSM_ns_alias::event const &)
const std::string &	getName () const
	Get name of state machine. More...
const std::string &	getName () const
	Get name of state machine. More...
int	getDetectorID () const
	Get detector identifier. More...
int	getDetectorID () const
	Get detector identifier. More...
int	getRunNumber () const
	Get run number. More...
int	getRunNumber () const
	Get run number. More...
virtual void	actionEnter ()
	Interface methods for actions corresponding to state transitions. More...
virtual void	actionEnter ()
	Interface methods for actions corresponding to state transitions. More...
virtual void	actionExit ()
virtual void	actionExit ()
virtual void	actionInit (int, const char *)
virtual void	actionInit (int, const char *)
virtual void	actionConfigure (int, const char *)
virtual void	actionConfigure (int, const char *)
virtual void	actionStart (int, const char *)
virtual void	actionStart (int, const char *)
virtual void	actionPause (int, const char *)
virtual void	actionPause (int, const char *)
virtual void	actionContinue (int, const char *)
virtual void	actionContinue (int, const char *)
virtual void	actionStop (int, const char *)
virtual void	actionStop (int, const char *)
virtual void	actionReset (int, const char *)
virtual void	actionReset (int, const char *)
virtual void	actionQuit (int, const char *)
virtual void	actionQuit (int, const char *)
virtual void	actionCheck (int, const char *)
virtual void	actionCheck (int, const char *)
virtual void	actionInput (int, const char *)
virtual void	actionInput (int, const char *)
virtual void	actionError ()
virtual void	actionError ()
virtual void	actionRecover (int, const char *)
virtual void	actionRecover (int, const char *)

Public Attributes
JDAQStateMachine::state_root	root
JDAQStateMachine::state_Main	Main
JDAQStateMachine::ev_daq_event	ev_daq
char	ev_daq_param_block [sizeof(ev_daq_event::param_block)]
JDAQStateMachine::ev_init_event	ev_init
char	ev_init_param_block [sizeof(ev_init_event::param_block)]
JDAQStateMachine::ev_configure_event	ev_configure
char	ev_configure_param_block [sizeof(ev_configure_event::param_block)]
JDAQStateMachine::ev_start_event	ev_start
char	ev_start_param_block [sizeof(ev_start_event::param_block)]
JDAQStateMachine::ev_pause_event	ev_pause
char	ev_pause_param_block [sizeof(ev_pause_event::param_block)]
JDAQStateMachine::ev_continue_event	ev_continue
char	ev_continue_param_block [sizeof(ev_continue_event::param_block)]
JDAQStateMachine::ev_stop_event	ev_stop
char	ev_stop_param_block [sizeof(ev_stop_event::param_block)]
JDAQStateMachine::ev_reset_event	ev_reset
char	ev_reset_param_block [sizeof(ev_reset_event::param_block)]
JDAQStateMachine::ev_quit_event	ev_quit
char	ev_quit_param_block [sizeof(ev_quit_event::param_block)]
JDAQStateMachine::ev_off_event	ev_off
char	ev_off_param_block [sizeof(ev_off_event::param_block)]
JDAQStateMachine::ev_check_event	ev_check
char	ev_check_param_block [sizeof(ev_check_event::param_block)]
JDAQStateMachine::ev_input_event	ev_input
char	ev_input_param_block [sizeof(ev_input_event::param_block)]
JDAQStateMachine::ev_recover_event	ev_recover
char	ev_recover_param_block [sizeof(ev_recover_event::param_block)]
JDAQStateMachine::ev_error_event	ev_error
char	ev_error_param_block [sizeof(ev_error_event::param_block)]

Protected Types
typedef void(JDAQCHSM::*	action )(int, const char *)
	Type definition of action method. More...
typedef void(JDAQCHSM::*	action )(int, const char *)
	Type definition of action method. More...

Protected Member Functions
virtual void	enterState (const CHSM::state &state, const CHSM::event &event)=0
	Action when entering state. More...
virtual void	enterState (const CHSM::state &state, const CHSM::event &event)=0
	Action when entering state. More...
virtual void	execute (action __action, const CHSM::event &__event)=0
	The method to execute the action. More...
virtual void	execute (action __action, const CHSM::event &__event)=0
	The method to execute the action. More...

Protected Attributes
std::string	name
int	detector_id
int	run_number

Private Attributes
CHSM_ns_alias::state *	state_ [11]
CHSM_ns_alias::event const *	taken_ [14]
CHSM_ns_alias::state *	target_ [14]

Static Private Attributes
static int const	ev_daq_transitions []
static int const	ev_init_transitions []
static int const	ev_configure_transitions []
static int const	ev_start_transitions []
static int const	ev_pause_transitions []
static int const	ev_continue_transitions []
static int const	ev_stop_transitions []
static int const	ev_reset_transitions []
static int const	ev_quit_transitions []
static int const	ev_off_transitions []
static int const	ev_check_transitions []
static int const	ev_input_transitions []
static int const	ev_recover_transitions []
static int const	ev_error_transitions []
static CHSM_ns_alias::transition const	transition_ []

Detailed Description

Definition at line 173 of file JDAQCHSM.hh.

Member Typedef Documentation

typedef void(JDAQCHSM::* JDAQCHSM::action)(int, const char *)

protectedinherited

Type definition of action method.

Definition at line 141 of file JDAQCHSM.chsm.

typedef void(JDAQCHSM::* JDAQCHSM::action)(int, const char *)

protectedinherited

Type definition of action method.

Definition at line 152 of file JDAQCHSM.hh.

Constructor & Destructor Documentation

JDAQStateMachine::JDAQStateMachine

(

const std::string

P__name

)

Definition at line 300 of file JDAQCHSM.cc.

                                                             :
        JDAQCHSM ( state_, root, transition_, taken_, target_, 14, P__name ),
        root( *this, "root", 0, (CHSM_ns_alias::state::action)&JDAQStateMachine::EAM4root, (CHSM_ns_alias::state::action)&JDAQStateMachine::XAM4root, 0, 0, false ),
        Main( *this, "Main", &root, 0, 0, 0, 0 ),
        ev_daq( this, ev_daq_transitions, "ev_daq", 0 ),
        ev_init( this, ev_init_transitions, "ev_init", &ev_daq ),
        ev_configure( this, ev_configure_transitions, "ev_configure", &ev_daq ),
        ev_start( this, ev_start_transitions, "ev_start", &ev_daq ),
        ev_pause( this, ev_pause_transitions, "ev_pause", &ev_daq ),
        ev_continue( this, ev_continue_transitions, "ev_continue", &ev_daq ),
        ev_stop( this, ev_stop_transitions, "ev_stop", &ev_daq ),
        ev_reset( this, ev_reset_transitions, "ev_reset", &ev_daq ),
        ev_quit( this, ev_quit_transitions, "ev_quit", &ev_daq ),
        ev_off( this, ev_off_transitions, "ev_off", &ev_daq ),
        ev_check( this, ev_check_transitions, "ev_check", &ev_daq ),
        ev_input( this, ev_input_transitions, "ev_input", &ev_daq ),
        ev_recover( this, ev_recover_transitions, "ev_recover", &ev_daq ),
        ev_error( this, ev_error_transitions, "ev_error", 0 )
{
        state_[ 0 ] = &Main;
        state_[ 1 ] = &Main.RunControl;
        state_[ 2 ] = &Main.RunControl.Operational;
        state_[ 3 ] = &Main.RunControl.Operational.Idle;
        state_[ 4 ] = &Main.RunControl.Operational.Standby;
        state_[ 5 ] = &Main.RunControl.Operational.Ready;
        state_[ 6 ] = &Main.RunControl.Operational.Paused;
        state_[ 7 ] = &Main.RunControl.Operational.Running;
        state_[ 8 ] = &Main.RunControl.Error;
        state_[ 9 ] = &Main.Responder;
        state_[ 10 ] = 0;
}

JDAQStateMachine::~JDAQStateMachine

(

)

Definition at line 331 of file JDAQCHSM.cc.

                                    {
}

Member Function Documentation

void JDAQStateMachine::A1

(

CHSM_ns_alias::event const &

event

)

Definition at line 344 of file JDAQCHSM.cc.

{ actionError(); }

void JDAQStateMachine::A2

(

CHSM_ns_alias::event const &

event

)

Definition at line 346 of file JDAQCHSM.cc.

{ execute(&JDAQCHSM::actionInit,      event); }

void JDAQStateMachine::A3

(

CHSM_ns_alias::event const &

event

)

Definition at line 348 of file JDAQCHSM.cc.

{ JDAQCHSM::exit(); }

void JDAQStateMachine::A4

(

CHSM_ns_alias::event const &

event

)

Definition at line 350 of file JDAQCHSM.cc.

{ execute(&JDAQCHSM::actionConfigure, event); }

void JDAQStateMachine::A5

(

CHSM_ns_alias::event const &

event

)

Definition at line 352 of file JDAQCHSM.cc.

{ execute(&JDAQCHSM::actionReset,     event); }

void JDAQStateMachine::A6

(

CHSM_ns_alias::event const &

event

)

Definition at line 354 of file JDAQCHSM.cc.

                                                           {

            std::istringstream is(std::string(ev_start->buffer, ev_start->length));

            is >> run_number >> detector_id;

            execute(&JDAQCHSM::actionStart, event);

            }

void JDAQStateMachine::A7

(

CHSM_ns_alias::event const &

event

)

Definition at line 364 of file JDAQCHSM.cc.

{ execute(&JDAQCHSM::actionQuit,      event); }

void JDAQStateMachine::A8

(

CHSM_ns_alias::event const &

event

)

Definition at line 366 of file JDAQCHSM.cc.

{ execute(&JDAQCHSM::actionContinue,  event); }

void JDAQStateMachine::A9

(

CHSM_ns_alias::event const &

event

)

Definition at line 368 of file JDAQCHSM.cc.

{ execute(&JDAQCHSM::actionStop,      event); }

void JDAQStateMachine::A10

(

CHSM_ns_alias::event const &

event

)

Definition at line 370 of file JDAQCHSM.cc.

{ execute(&JDAQCHSM::actionPause,     event); }

void JDAQStateMachine::A11

(

CHSM_ns_alias::event const &

event

)

Definition at line 372 of file JDAQCHSM.cc.

{ execute(&JDAQCHSM::actionRecover,   event); }

void JDAQStateMachine::A12

(

CHSM_ns_alias::event const &

event

)

Definition at line 374 of file JDAQCHSM.cc.

{ JDAQCHSM::exit(); }

void JDAQStateMachine::A13

(

CHSM_ns_alias::event const &

event

)

Definition at line 376 of file JDAQCHSM.cc.

{ execute(&JDAQCHSM::actionCheck,     event); }

void JDAQStateMachine::A14

(

CHSM_ns_alias::event const &

event

)

Definition at line 378 of file JDAQCHSM.cc.

{ execute(&JDAQCHSM::actionInput,     event); }

void JDAQStateMachine::EAM4root	(	CHSM_ns_alias::state const &	chsm_state_,
		CHSM_ns_alias::event const &	event
	)

Definition at line 337 of file JDAQCHSM.cc.

                                                                                                        {
#line 164 "JDAQCHSM.chsm"
        CHSM_ns_alias::cluster const &state = (CHSM_ns_alias::cluster const&)chsm_state_; actionEnter(); }

void JDAQStateMachine::XAM4root	(	CHSM_ns_alias::state const &	chsm_state_,
		CHSM_ns_alias::event const &	event
	)

Definition at line 340 of file JDAQCHSM.cc.

                                                                                                        {
#line 165 "JDAQCHSM.chsm"
        CHSM_ns_alias::cluster const &state = (CHSM_ns_alias::cluster const&)chsm_state_; actionExit();  }

const std::string& JDAQCHSM::getName ( ) const

inlineinherited

Get name of state machine.

Returns

name

Definition at line 78 of file JDAQCHSM.chsm.

  {
    return name;
  }

const std::string& JDAQCHSM::getName ( ) const

inlineinherited

Get name of state machine.

Returns

name

Definition at line 89 of file JDAQCHSM.hh.

  {
    return name;
  }

int JDAQCHSM::getDetectorID ( ) const

inlineinherited

Get detector identifier.

Returns

detector identifier.

Definition at line 89 of file JDAQCHSM.chsm.

  {
    return detector_id;
  }

int JDAQCHSM::getDetectorID ( ) const

inlineinherited

Get detector identifier.

Returns

detector identifier.

Definition at line 100 of file JDAQCHSM.hh.

  {
    return detector_id;
  }

int JDAQCHSM::getRunNumber ( ) const

inlineinherited

Get run number.

Returns

run number

Definition at line 100 of file JDAQCHSM.chsm.

  {
    return run_number;
  }

int JDAQCHSM::getRunNumber ( ) const

inlineinherited

Get run number.

Returns

run number

Definition at line 111 of file JDAQCHSM.hh.

  {
    return run_number;
  }

virtual void JDAQCHSM::actionEnter ( )

inlinevirtualinherited

Interface methods for actions corresponding to state transitions.

Reimplemented in KM3NETDAQ::JDataFilter, KM3NETDAQ::DataQueue, JDAQDemoClient, AcousticDataFilter, and KM3NETDAQ::MonitorRouter.

Definition at line 109 of file JDAQCHSM.chsm.

{}

virtual void JDAQCHSM::actionEnter ( )

inlinevirtualinherited

Interface methods for actions corresponding to state transitions.

Reimplemented in KM3NETDAQ::JDataFilter, KM3NETDAQ::DataQueue, JDAQDemoClient, AcousticDataFilter, and KM3NETDAQ::MonitorRouter.

Definition at line 120 of file JDAQCHSM.hh.

{}

virtual void JDAQCHSM::actionExit ( )

inlinevirtualinherited

Reimplemented in KM3NETDAQ::JDataFilter, KM3NETDAQ::JDAQDriver, KM3NETDAQ::DataQueue, JDAQDemoClient, AcousticDataFilter, and KM3NETDAQ::MonitorRouter.

Definition at line 110 of file JDAQCHSM.chsm.

{}

virtual void JDAQCHSM::actionExit ( )

inlinevirtualinherited

Reimplemented in KM3NETDAQ::JDataFilter, KM3NETDAQ::JDAQDriver, KM3NETDAQ::DataQueue, JDAQDemoClient, AcousticDataFilter, and KM3NETDAQ::MonitorRouter.

Definition at line 121 of file JDAQCHSM.hh.

{}

virtual void JDAQCHSM::actionInit ( int  , const char *    )

inlinevirtualinherited

Reimplemented in KM3NETDAQ::JDataFilter, KM3NETDAQ::JDataWriter, KM3NETDAQ::DataQueue, JDAQDemoClient, AcousticDataFilter, and KM3NETDAQ::MonitorRouter.

Definition at line 112 of file JDAQCHSM.chsm.

{}

virtual void JDAQCHSM::actionInit ( int  , const char *    )

inlinevirtualinherited

Reimplemented in KM3NETDAQ::JDataFilter, KM3NETDAQ::JDataWriter, KM3NETDAQ::DataQueue, JDAQDemoClient, AcousticDataFilter, and KM3NETDAQ::MonitorRouter.

Definition at line 123 of file JDAQCHSM.hh.

{}

virtual void JDAQCHSM::actionConfigure ( int  , const char *    )

inlinevirtualinherited

Reimplemented in KM3NETDAQ::JDataFilter, KM3NETDAQ::JDQSimulator, KM3NETDAQ::JDataWriter, JDAQDemoClient, KM3NETDAQ::DataQueue, AcousticDataFilter, KM3NETDAQ::MonitorRouter, and KM3NETDAQ::JEventGenerator.

Definition at line 113 of file JDAQCHSM.chsm.

{}

virtual void JDAQCHSM::actionConfigure ( int  , const char *    )

inlinevirtualinherited

Reimplemented in KM3NETDAQ::JDataFilter, KM3NETDAQ::JDQSimulator, KM3NETDAQ::JDataWriter, JDAQDemoClient, KM3NETDAQ::DataQueue, AcousticDataFilter, KM3NETDAQ::MonitorRouter, and KM3NETDAQ::JEventGenerator.

Definition at line 124 of file JDAQCHSM.hh.

{}

virtual void JDAQCHSM::actionStart ( int  , const char *    )

inlinevirtualinherited

Reimplemented in KM3NETDAQ::JDataFilter, KM3NETDAQ::JDQSimulator, KM3NETDAQ::JDAQDriver, KM3NETDAQ::DataQueue, KM3NETDAQ::JDataWriter, JDAQDemoClient, KM3NETDAQ::JEventGenerator, KM3NETDAQ::MonitorRouter, and AcousticDataFilter.

Definition at line 114 of file JDAQCHSM.chsm.

{}

virtual void JDAQCHSM::actionStart ( int  , const char *    )

inlinevirtualinherited

Reimplemented in KM3NETDAQ::JDataFilter, KM3NETDAQ::JDQSimulator, KM3NETDAQ::JDAQDriver, KM3NETDAQ::DataQueue, KM3NETDAQ::JDataWriter, JDAQDemoClient, KM3NETDAQ::JEventGenerator, KM3NETDAQ::MonitorRouter, and AcousticDataFilter.

Definition at line 125 of file JDAQCHSM.hh.

{}

virtual void JDAQCHSM::actionPause ( int  , const char *    )

inlinevirtualinherited

Reimplemented in KM3NETDAQ::JDataFilter, KM3NETDAQ::DataQueue, JDAQDemoClient, KM3NETDAQ::MonitorRouter, and AcousticDataFilter.

Definition at line 115 of file JDAQCHSM.chsm.

{}

virtual void JDAQCHSM::actionPause ( int  , const char *    )

inlinevirtualinherited

Reimplemented in KM3NETDAQ::JDataFilter, KM3NETDAQ::DataQueue, JDAQDemoClient, KM3NETDAQ::MonitorRouter, and AcousticDataFilter.

Definition at line 126 of file JDAQCHSM.hh.

{}

virtual void JDAQCHSM::actionContinue ( int  , const char *    )

inlinevirtualinherited

Reimplemented in KM3NETDAQ::JDataFilter, KM3NETDAQ::DataQueue, JDAQDemoClient, KM3NETDAQ::MonitorRouter, and AcousticDataFilter.

Definition at line 116 of file JDAQCHSM.chsm.

{}

virtual void JDAQCHSM::actionContinue ( int  , const char *    )

inlinevirtualinherited

Reimplemented in KM3NETDAQ::JDataFilter, KM3NETDAQ::DataQueue, JDAQDemoClient, KM3NETDAQ::MonitorRouter, and AcousticDataFilter.

Definition at line 127 of file JDAQCHSM.hh.

{}

virtual void JDAQCHSM::actionStop ( int  , const char *    )

inlinevirtualinherited

Reimplemented in KM3NETDAQ::JDataFilter, KM3NETDAQ::JDQSimulator, KM3NETDAQ::JDAQDriver, KM3NETDAQ::JDataWriter, KM3NETDAQ::DataQueue, JDAQDemoClient, KM3NETDAQ::JEventGenerator, KM3NETDAQ::MonitorRouter, and AcousticDataFilter.

Definition at line 117 of file JDAQCHSM.chsm.

{}

virtual void JDAQCHSM::actionStop ( int  , const char *    )

inlinevirtualinherited

Reimplemented in KM3NETDAQ::JDataFilter, KM3NETDAQ::JDQSimulator, KM3NETDAQ::JDAQDriver, KM3NETDAQ::JDataWriter, KM3NETDAQ::DataQueue, JDAQDemoClient, KM3NETDAQ::JEventGenerator, KM3NETDAQ::MonitorRouter, and AcousticDataFilter.

Definition at line 128 of file JDAQCHSM.hh.

{}

virtual void JDAQCHSM::actionReset ( int  , const char *    )

inlinevirtualinherited

Reimplemented in KM3NETDAQ::JDataFilter, KM3NETDAQ::JDQSimulator, KM3NETDAQ::JDataWriter, JDAQDemoClient, KM3NETDAQ::JEventGenerator, KM3NETDAQ::DataQueue, AcousticDataFilter, and KM3NETDAQ::MonitorRouter.

Definition at line 118 of file JDAQCHSM.chsm.

{}

virtual void JDAQCHSM::actionReset ( int  , const char *    )

inlinevirtualinherited

Reimplemented in KM3NETDAQ::JDataFilter, KM3NETDAQ::JDQSimulator, KM3NETDAQ::JDataWriter, JDAQDemoClient, KM3NETDAQ::JEventGenerator, KM3NETDAQ::DataQueue, AcousticDataFilter, and KM3NETDAQ::MonitorRouter.

Definition at line 129 of file JDAQCHSM.hh.

{}

virtual void JDAQCHSM::actionQuit ( int  , const char *    )

inlinevirtualinherited

Reimplemented in KM3NETDAQ::JDataFilter, KM3NETDAQ::JDQSimulator, KM3NETDAQ::DataQueue, KM3NETDAQ::JDataWriter, JDAQDemoClient, KM3NETDAQ::JEventGenerator, KM3NETDAQ::MonitorRouter, and AcousticDataFilter.

Definition at line 119 of file JDAQCHSM.chsm.

{}

virtual void JDAQCHSM::actionQuit ( int  , const char *    )

inlinevirtualinherited

Reimplemented in KM3NETDAQ::JDataFilter, KM3NETDAQ::JDQSimulator, KM3NETDAQ::DataQueue, KM3NETDAQ::JDataWriter, JDAQDemoClient, KM3NETDAQ::JEventGenerator, KM3NETDAQ::MonitorRouter, and AcousticDataFilter.

Definition at line 130 of file JDAQCHSM.hh.

{}

virtual void JDAQCHSM::actionCheck ( int  , const char *    )

inlinevirtualinherited

Reimplemented in KM3NETDAQ::JDAQClient.

Definition at line 121 of file JDAQCHSM.chsm.

{}

virtual void JDAQCHSM::actionCheck ( int  , const char *    )

inlinevirtualinherited

Reimplemented in KM3NETDAQ::JDAQClient.

Definition at line 132 of file JDAQCHSM.hh.

{}

virtual void JDAQCHSM::actionInput ( int  , const char *    )

inlinevirtualinherited

Reimplemented in KM3NETDAQ::JDAQClient, KM3NETDAQ::DataQueue, and AcousticDataFilter.

Definition at line 122 of file JDAQCHSM.chsm.

{}

virtual void JDAQCHSM::actionInput ( int  , const char *    )

inlinevirtualinherited

Reimplemented in KM3NETDAQ::JDAQClient, KM3NETDAQ::DataQueue, and AcousticDataFilter.

Definition at line 133 of file JDAQCHSM.hh.

{}

virtual void JDAQCHSM::actionError ( )

inlinevirtualinherited

Definition at line 124 of file JDAQCHSM.chsm.

{}

virtual void JDAQCHSM::actionError ( )

inlinevirtualinherited

Definition at line 135 of file JDAQCHSM.hh.

{}

virtual void JDAQCHSM::actionRecover ( int  , const char *    )

inlinevirtualinherited

Definition at line 125 of file JDAQCHSM.chsm.

{}

virtual void JDAQCHSM::actionRecover ( int  , const char *    )

inlinevirtualinherited

Definition at line 136 of file JDAQCHSM.hh.

{}

virtual void JDAQCHSM::enterState ( const CHSM::state &  state, const CHSM::event &  event  )

protectedpure virtualinherited

Action when entering state.

Parameters

state	entered state
event	event that triggered transition

Implemented in KM3NETDAQ::JDAQClient, and KM3NETDAQ::JDAQDriver.

virtual void JDAQCHSM::enterState ( const CHSM::state &  state, const CHSM::event &  event  )

protectedpure virtualinherited

Action when entering state.

Parameters

state	entered state
event	event that triggered transition

Implemented in KM3NETDAQ::JDAQClient, and KM3NETDAQ::JDAQDriver.

virtual void JDAQCHSM::execute ( action  __action, const CHSM::event &  __event  )

protectedpure virtualinherited

The method to execute the action.

This method shall be implemented in the derived class.

Parameters

__action	pointer to action method
__event	event that triggered the action

Implemented in KM3NETDAQ::JDAQClient.

virtual void JDAQCHSM::execute ( action  __action, const CHSM::event &  __event  )

protectedpure virtualinherited

The method to execute the action.

This method shall be implemented in the derived class.

Parameters

__action	pointer to action method
__event	event that triggered the action

Implemented in KM3NETDAQ::JDAQClient.

Member Data Documentation

JDAQStateMachine::state_root JDAQStateMachine::root

JDAQStateMachine::state_Main JDAQStateMachine::Main

int const JDAQStateMachine::ev_daq_transitions

staticprivate

Initial value:

= {
        -1
}

Definition at line 216 of file JDAQCHSM.hh.

JDAQStateMachine::ev_daq_event JDAQStateMachine::ev_daq

char JDAQStateMachine::ev_daq_param_block[sizeof(ev_daq_event::param_block)]

Definition at line 238 of file JDAQCHSM.hh.

int const JDAQStateMachine::ev_init_transitions

staticprivate

Initial value:

= {
        1, -1
}

Definition at line 240 of file JDAQCHSM.hh.

JDAQStateMachine::ev_init_event JDAQStateMachine::ev_init

char JDAQStateMachine::ev_init_param_block[sizeof(ev_init_event::param_block)]

Definition at line 258 of file JDAQCHSM.hh.

int const JDAQStateMachine::ev_configure_transitions

staticprivate

Initial value:

= {
        3, -1
}

Definition at line 260 of file JDAQCHSM.hh.

JDAQStateMachine::ev_configure_event JDAQStateMachine::ev_configure

char JDAQStateMachine::ev_configure_param_block[sizeof(ev_configure_event::param_block)]

Definition at line 278 of file JDAQCHSM.hh.

int const JDAQStateMachine::ev_start_transitions

staticprivate

Initial value:

= {
        5, -1
}

Definition at line 280 of file JDAQCHSM.hh.

JDAQStateMachine::ev_start_event JDAQStateMachine::ev_start

char JDAQStateMachine::ev_start_param_block[sizeof(ev_start_event::param_block)]

Definition at line 298 of file JDAQCHSM.hh.

int const JDAQStateMachine::ev_pause_transitions

staticprivate

Initial value:

= {
        9, -1
}

Definition at line 300 of file JDAQCHSM.hh.

JDAQStateMachine::ev_pause_event JDAQStateMachine::ev_pause

char JDAQStateMachine::ev_pause_param_block[sizeof(ev_pause_event::param_block)]

Definition at line 318 of file JDAQCHSM.hh.

int const JDAQStateMachine::ev_continue_transitions

staticprivate

Initial value:

= {
        7, -1
}

Definition at line 320 of file JDAQCHSM.hh.

JDAQStateMachine::ev_continue_event JDAQStateMachine::ev_continue

char JDAQStateMachine::ev_continue_param_block[sizeof(ev_continue_event::param_block)]

Definition at line 338 of file JDAQCHSM.hh.

int const JDAQStateMachine::ev_stop_transitions

staticprivate

Initial value:

= {
        8, -1
}

Definition at line 340 of file JDAQCHSM.hh.

JDAQStateMachine::ev_stop_event JDAQStateMachine::ev_stop

char JDAQStateMachine::ev_stop_param_block[sizeof(ev_stop_event::param_block)]

Definition at line 358 of file JDAQCHSM.hh.

int const JDAQStateMachine::ev_reset_transitions

staticprivate

Initial value:

= {
        4, -1
}

Definition at line 360 of file JDAQCHSM.hh.

JDAQStateMachine::ev_reset_event JDAQStateMachine::ev_reset

char JDAQStateMachine::ev_reset_param_block[sizeof(ev_reset_event::param_block)]

Definition at line 378 of file JDAQCHSM.hh.

int const JDAQStateMachine::ev_quit_transitions

staticprivate

Initial value:

= {
        6, -1
}

Definition at line 380 of file JDAQCHSM.hh.

JDAQStateMachine::ev_quit_event JDAQStateMachine::ev_quit

char JDAQStateMachine::ev_quit_param_block[sizeof(ev_quit_event::param_block)]

Definition at line 398 of file JDAQCHSM.hh.

int const JDAQStateMachine::ev_off_transitions

staticprivate

Initial value:

= {
        2, 11, -1
}

Definition at line 400 of file JDAQCHSM.hh.

JDAQStateMachine::ev_off_event JDAQStateMachine::ev_off

char JDAQStateMachine::ev_off_param_block[sizeof(ev_off_event::param_block)]

Definition at line 418 of file JDAQCHSM.hh.

int const JDAQStateMachine::ev_check_transitions

staticprivate

Initial value:

= {
        12, -1
}

Definition at line 420 of file JDAQCHSM.hh.

JDAQStateMachine::ev_check_event JDAQStateMachine::ev_check

char JDAQStateMachine::ev_check_param_block[sizeof(ev_check_event::param_block)]

Definition at line 438 of file JDAQCHSM.hh.

int const JDAQStateMachine::ev_input_transitions

staticprivate

Initial value:

= {
        13, -1
}

Definition at line 440 of file JDAQCHSM.hh.

JDAQStateMachine::ev_input_event JDAQStateMachine::ev_input

char JDAQStateMachine::ev_input_param_block[sizeof(ev_input_event::param_block)]

Definition at line 458 of file JDAQCHSM.hh.

int const JDAQStateMachine::ev_recover_transitions

staticprivate

Initial value:

= {
        10, -1
}

Definition at line 460 of file JDAQCHSM.hh.

JDAQStateMachine::ev_recover_event JDAQStateMachine::ev_recover

char JDAQStateMachine::ev_recover_param_block[sizeof(ev_recover_event::param_block)]

Definition at line 478 of file JDAQCHSM.hh.

int const JDAQStateMachine::ev_error_transitions

staticprivate

Initial value:

= {
        0, -1
}

Definition at line 480 of file JDAQCHSM.hh.

JDAQStateMachine::ev_error_event JDAQStateMachine::ev_error

char JDAQStateMachine::ev_error_param_block[sizeof(ev_error_event::param_block)]

Definition at line 495 of file JDAQCHSM.hh.

CHSM_ns_alias::state* JDAQStateMachine::state_[11]

private

Definition at line 522 of file JDAQCHSM.hh.

CHSM_ns_alias::transition const JDAQStateMachine::transition_

staticprivate

Initial value:

= {
        { 0, 2, 8, 0, (CHSM_ns_alias::transition::action)&JDAQStateMachine::A1 },
        { 0, 3, 4, 0, (CHSM_ns_alias::transition::action)&JDAQStateMachine::A2 },
        { 0, 3, -1, 0, (CHSM_ns_alias::transition::action)&JDAQStateMachine::A3 },
        { 0, 4, 5, 0, (CHSM_ns_alias::transition::action)&JDAQStateMachine::A4 },
        { 0, 4, 3, 0, (CHSM_ns_alias::transition::action)&JDAQStateMachine::A5 },
        { 0, 5, 7, 0, (CHSM_ns_alias::transition::action)&JDAQStateMachine::A6 },
        { 0, 5, 4, 0, (CHSM_ns_alias::transition::action)&JDAQStateMachine::A7 },
        { 0, 6, 7, 0, (CHSM_ns_alias::transition::action)&JDAQStateMachine::A8 },
        { 0, 6, 4, 0, (CHSM_ns_alias::transition::action)&JDAQStateMachine::A9 },
        { 0, 7, 6, 0, (CHSM_ns_alias::transition::action)&JDAQStateMachine::A10 },
        { 0, 8, 2, 0, (CHSM_ns_alias::transition::action)&JDAQStateMachine::A11 },
        { 0, 8, -1, 0, (CHSM_ns_alias::transition::action)&JDAQStateMachine::A12 },
        { 0, 9, -1, 0, (CHSM_ns_alias::transition::action)&JDAQStateMachine::A13 },
        { 0, 9, -1, 0, (CHSM_ns_alias::transition::action)&JDAQStateMachine::A14 },
        0
}

Definition at line 523 of file JDAQCHSM.hh.

CHSM_ns_alias::event const* JDAQStateMachine::taken_[14]

private

Definition at line 524 of file JDAQCHSM.hh.

CHSM_ns_alias::state* JDAQStateMachine::target_[14]

private

Definition at line 525 of file JDAQCHSM.hh.

std::string JDAQCHSM::name

protectedinherited

Definition at line 154 of file JDAQCHSM.chsm.

int JDAQCHSM::detector_id

protectedinherited

Definition at line 155 of file JDAQCHSM.chsm.

int JDAQCHSM::run_number

protectedinherited

Definition at line 156 of file JDAQCHSM.chsm.

---

The documentation for this class was generated from the following files:

• JDAQCHSM.hh
• JDAQCHSM.cc
