Summary_TimeSlice Class Reference

Summary time slices. More...

#include <TimeSlice.hh>

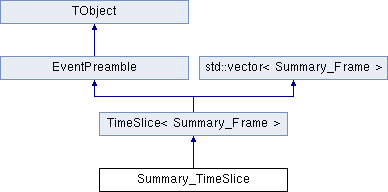

Inheritance diagram for Summary_TimeSlice:

Public Types
typedef Summary_Frame	frame_type
	item type definition More...
typedef frame_type::item_type	item_type
	item sub-type definition More...

Public Member Functions
	Summary_TimeSlice ()
	Default constructor. More...
template<class T >
	Summary_TimeSlice (const TimeSlice< T > &object)
	Constructor. More...
template<class T >
Summary_TimeSlice &	operator+= (const TimeSlice< T > &object)
	operator += More...
	ClassDef (Summary_TimeSlice, 2)
	ROOT class definition. More...
TimeSlice< Summary_Frame > &	operator+= (const TimeSlice< Summary_Frame > &object)
	operator += More...
	ClassDef (TimeSlice, 2)
	ROOT class definition. More...
	ClassDef (EventPreamble, 2)

Public Attributes
unsigned short	frameTarget
	Unique code representing the shore station for this frame. More...
unsigned int	frameTime1
	Frame 'time stamp' in units of 50ns (MSW) More...
unsigned int	frameTime2
	Frame 'time stamp' in units of 50ns (LSW) More...
unsigned int	frameIndex
	Number of frames since start of the run. More...
unsigned int	runNumber
	Run-number as given by the RunControl. More...

Detailed Description

Summary time slices.

Definition at line 587 of file TimeSlice.hh.

Member Typedef Documentation

typedef Summary_Frame TimeSlice< Summary_Frame >::frame_type

inherited

item type definition

Definition at line 401 of file TimeSlice.hh.

typedef frame_type::item_type TimeSlice< Summary_Frame >::item_type

inherited

item sub-type definition

Definition at line 402 of file TimeSlice.hh.

Constructor & Destructor Documentation

Summary_TimeSlice::Summary_TimeSlice ( )

inline

Default constructor.

Definition at line 594 of file TimeSlice.hh.

: TimeSlice<Summary_Frame>() {}

template<class T >

Summary_TimeSlice::Summary_TimeSlice ( const TimeSlice< T > &  object )

inline

Constructor.

param object time slice

Definition at line 602 of file TimeSlice.hh.

                                                :
    TimeSlice<Summary_Frame>((const EventPreamble&) object)
  {
    for (typename TimeSlice<T>::const_iterator i = object.begin(); i != object.end(); ++i) {
      this->push_back(Summary_Frame(i->LCM_ID,
                                    i->ARS_ID,
                                    i->dataType,
                                    i->nbItems));
    }
  }

Member Function Documentation

template<class T >

Summary_TimeSlice& Summary_TimeSlice::operator+= ( const TimeSlice< T > &  object )

inline

operator +=

Parameters

object

time slice

Returns

this summary time slice

Definition at line 620 of file TimeSlice.hh.

  {
    if ((EventPreamble&) *this == (EventPreamble&) object) {
      for (typename TimeSlice<T>::const_iterator i = object.begin(); i != object.end(); ++i) {
        this->push_back(Summary_Frame(i->LCM_ID,
                                      i->ARS_ID,
                                      i->dataType,
                                      i->nbItems));
      }
    }

    return *this;
  }

Summary_TimeSlice::ClassDef	(	Summary_TimeSlice	,
		2
	)

ROOT class definition.

TimeSlice<Summary_Frame >& TimeSlice< Summary_Frame >::operator+= ( const TimeSlice< Summary_Frame > &  object )

inlineinherited

operator +=

Parameters

object

time slice

Returns

this time slice

Definition at line 446 of file TimeSlice.hh.

  {
    if ((EventPreamble&) *this == (EventPreamble&) object) {

      typename TimeSlice<T>::const_iterator from;
      typename TimeSlice<T>::iterator       to;

      for (from = object.begin(); from != object.end(); ++from) {

        for (to = std::vector<T>::begin(); to != std::vector<T>::end(); ++to) {
          if (*to == *from) {
            *to += *from;
            break;
          }
        }

        if (to == std::vector<T>::end()) {
          this->push_back(*from);
        }
      }
    }

    return *this;
  }

TimeSlice< Summary_Frame >::ClassDef ( TimeSlice< Summary_Frame >  , 2    )

inherited

ROOT class definition.

EventPreamble::ClassDef ( EventPreamble  , 2    )

inherited

Member Data Documentation

unsigned short EventPreamble::frameTarget

inherited

Unique code representing the shore station for this frame.

Definition at line 26 of file EventPreamble.hh.

unsigned int EventPreamble::frameTime1

inherited

Frame 'time stamp' in units of 50ns (MSW)

Definition at line 29 of file EventPreamble.hh.

unsigned int EventPreamble::frameTime2

inherited

Frame 'time stamp' in units of 50ns (LSW)

Definition at line 31 of file EventPreamble.hh.

unsigned int EventPreamble::frameIndex

inherited

Number of frames since start of the run.

Definition at line 34 of file EventPreamble.hh.

unsigned int EventPreamble::runNumber

inherited

Run-number as given by the RunControl.

Definition at line 37 of file EventPreamble.hh.

---

The documentation for this class was generated from the following file:

• TimeSlice.hh
