Auxiliary class to uniquely identify PMT readout channel. More...

#include <JPMTChannel.hh>

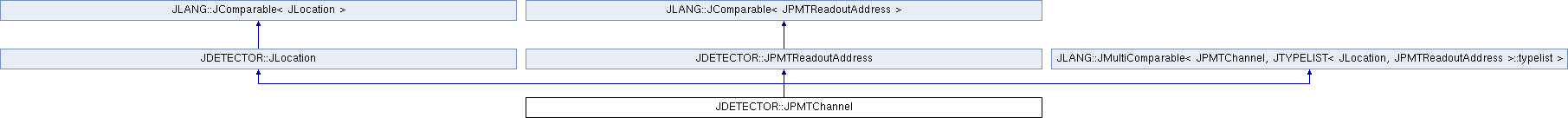

Inheritance diagram for JDETECTOR::JPMTChannel:

Public Member Functions
	JPMTChannel ()
	Default constructor. More...

	JPMTChannel (const JLocation &location, const JPMTReadoutAddress &tdc)
	Constructor. More...

const JLocation &	getLocation () const
	Get location. More...

JLocation &	getLocation ()
	Get location. More...

void	setLocation (const JLocation &location)
	Set location. More...

std::string	toString () const
	Convert module location to string. More...

std::string	toString (const std::string &fmt, const std::string target="%") const
	Convert module loation to string. More...

int	getString () const
	Get string number. More...

int	getFloor () const
	Get floor number. More...

bool	less (const JLocation &location) const
	Less than method. More...

bool	less (const JPMTReadoutAddress &address) const
	Less than method. More...

int	getTDC () const
	Get TDC. More...

Public Attributes
int	tdc
	TDC channel. More...

Static Protected Member Functions
template<class JHead_t , class JTail_t >
static bool	lt (const JClass_t &first, const JClass_t &second, const JType< JTypeList< JHead_t, JTail_t > > &type)
	Less than method for composite data types. More...

template<class JHead_t >
static bool	lt (const JClass_t &first, const JClass_t &second, const JType< JTypeList< JHead_t, JNullType > > &type)
	Less than method for composite data types. More...

Protected Attributes
int	string

int	floor

Friends
std::istream &	operator>> (std::istream &in, JPMTChannel &object)
	Read PMT channel. More...

std::ostream &	operator<< (std::ostream &out, const JPMTChannel &object)
	Write PMT channel. More...

Detailed Description

Auxiliary class to uniquely identify PMT readout channel.

Definition at line 31 of file JPMTChannel.hh.

Constructor & Destructor Documentation

◆ JPMTChannel() [1/2]

JDETECTOR::JPMTChannel::JPMTChannel ( )

inline

Default constructor.

Definition at line 40 of file JPMTChannel.hh.

                   :
       JLocation(),
       JPMTReadoutAddress()
     {}

◆ JPMTChannel() [2/2]

JDETECTOR::JPMTChannel::JPMTChannel	(	const JLocation &	location,
		const JPMTReadoutAddress &	tdc
	)

inline

Constructor.

Parameters

location	module location
tdc	PMT readout address

Definition at line 52 of file JPMTChannel.hh.

                                                :
       JLocation         (location),
       JPMTReadoutAddress(tdc)
     {}

Member Function Documentation

◆ getLocation() [1/2]

const JLocation& JDETECTOR::JLocation::getLocation ( ) const

inlineinherited

Get location.

Returns: location

Definition at line 69 of file JLocation.hh.

     {
       return static_cast<const JLocation&>(*this);
     }

◆ getLocation() [2/2]

JLocation& JDETECTOR::JLocation::getLocation ( )

inlineinherited

Get location.

Returns: location

Definition at line 80 of file JLocation.hh.

     {
       return static_cast<JLocation&>(*this);
     }

◆ setLocation()

void JDETECTOR::JLocation::setLocation ( const JLocation & location )

inlineinherited

Set location.

Parameters

location location

Definition at line 91 of file JLocation.hh.

     {
       static_cast<JLocation&>(*this) = location;
     }

◆ toString() [1/2]

std::string JDETECTOR::JLocation::toString ( ) const

inlineinherited

Convert module location to string.

Returns: string

Definition at line 102 of file JLocation.hh.

     {
       return toString("% %");
     }

◆ toString() [2/2]

std::string JDETECTOR::JLocation::toString	(	const std::string &	fmt,
		const std::string	target = `"%"`
	)		const

inlineinherited

Convert module loation to string.

The targets target in the format string fmt are consecutively replaced by floor and string.

Parameters

fmt	format
target	target

Returns: string

Definition at line 118 of file JLocation.hh.

     {
       JLANG::JString buffer(fmt);

       buffer.replace(target, string, 1);
       buffer.replace(target, floor,  1);

       return buffer;
     }

◆ getString()

int JDETECTOR::JLocation::getString ( ) const

inlineinherited

Get string number.

Returns: string number

Definition at line 134 of file JLocation.hh.

     {
       return string;
     }

◆ getFloor()

int JDETECTOR::JLocation::getFloor ( ) const

inlineinherited

Get floor number.

Returns: floor number

Definition at line 145 of file JLocation.hh.

     {
       return floor;
     }

◆ less() [1/2]

bool JDETECTOR::JLocation::less ( const JLocation & location ) const

inlineinherited

Less than method.

Parameters

location module location

Returns: true if first location before second location; else false

Definition at line 157 of file JLocation.hh.

     {
       if (this->getString() == location.getString())
         return this->getFloor()  < location.getFloor();
       else
         return this->getString() < location.getString();
     }

◆ less() [2/2]

bool JDETECTOR::JPMTReadoutAddress::less ( const JPMTReadoutAddress & address ) const

inlineinherited

Less than method.

Parameters

address PMT readout address

Returns: true if this address before given address; else false

Definition at line 58 of file JPMTReadoutAddress.hh.

     {
       return this->tdc < address.tdc;
     }

◆ getTDC()

int JDETECTOR::JPMTReadoutAddress::getTDC ( ) const

inlineinherited

Get TDC.

Returns: TDC

Definition at line 69 of file JPMTReadoutAddress.hh.

     {
       return tdc;
     }

◆ lt() [1/2]

template<class JClass_t , class JTypelist_t >

template<class JHead_t , class JTail_t >

static bool JLANG::JMultiComparable< JClass_t, JTypelist_t >::lt	(	const JClass_t &	first,
		const JClass_t &	second,
		const JType< JTypeList< JHead_t, JTail_t > > &	type
	)

inlinestaticprotectedinherited

Less than method for composite data types.

Parameters

first	first object
second	second object
type	type

Returns: true if first object is less than second object; else false

Definition at line 43 of file JMultiComparable.hh.

     {
       if      (static_cast<const JHead_t&>(first)  <
                static_cast<const JHead_t&>(second))
         return true;
       else if (static_cast<const JHead_t&>(second)  <
                static_cast<const JHead_t&>(first))
         return false;
       else
         return lt(first, second, JType<JTail_t>());
     }

◆ lt() [2/2]

template<class JClass_t , class JTypelist_t >

template<class JHead_t >

static bool JLANG::JMultiComparable< JClass_t, JTypelist_t >::lt	(	const JClass_t &	first,
		const JClass_t &	second,
		const JType< JTypeList< JHead_t, JNullType > > &	type
	)

inlinestaticprotectedinherited

Less than method for composite data types.

Parameters

first	first object
second	second object
type	type

Returns: true if first object is less than second object; else false

Definition at line 67 of file JMultiComparable.hh.

     {
       return (static_cast<const JHead_t&>(first) <
               static_cast<const JHead_t&>(second));
     }

Friends And Related Function Documentation

◆ operator>>

std::istream& operator>>	(	std::istream &	in,
		JPMTChannel &	object
	)

friend

Read PMT channel.

Parameters

in	input stream
object	PMT channel

Returns: input stream

Definition at line 66 of file JPMTChannel.hh.

     {
       in >> static_cast<JLocation&>         (object);
       in >> static_cast<JPMTReadoutAddress&>(object);

       return in;
     }

◆ operator<<

std::ostream& operator<<	(	std::ostream &	out,
		const JPMTChannel &	object
	)

friend

Write PMT channel.

Parameters

out	output stream
object	PMT channel

Returns: output stream

Definition at line 82 of file JPMTChannel.hh.

     {
       out << static_cast<const JLocation&>         (object) << ' ';
       out << static_cast<const JPMTReadoutAddress&>(object);

       return out;
     }

Member Data Documentation

◆ string

int JDETECTOR::JLocation::string

protectedinherited

Definition at line 234 of file JLocation.hh.

◆ floor

int JDETECTOR::JLocation::floor

protectedinherited

Definition at line 235 of file JLocation.hh.

◆ tdc

int JDETECTOR::JPMTReadoutAddress::tdc

inherited

TDC channel.

Definition at line 127 of file JPMTReadoutAddress.hh.

The documentation for this class was generated from the following file:

JPMTChannel.hh
