JDETECTOR::JPMTAddressTranslator Struct Reference

Data structure to translate PMT physical to readout address. More...

#include <JModuleAddressMap.hh>

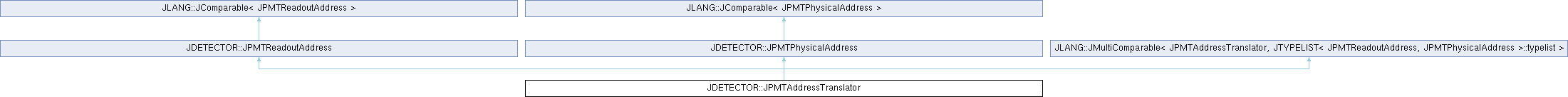

Inheritance diagram for JDETECTOR::JPMTAddressTranslator:

Public Member Functions
	JPMTAddressTranslator (const JPMTReadoutAddress &readout, const JPMTPhysicalAddress &address)
	Constructor.
std::string	toString () const
	Convert PMT address translator to string.
std::string	toString (const std::string &fmt, const std::string target="%") const
	Convert PMT address translator to string.
bool	less (const JPMTReadoutAddress &address) const
	Less than method.
int	getTDC () const
	Get TDC.
bool	less (const JPMTPhysicalAddress &address) const
	Less than method.

Public Attributes
int	tdc
	TDC channel.
char	ring
	ring number ['A','F']
int	position
	position within ring [1,6]

Static Protected Member Functions
template<class JHead_t , class JTail_t >
static bool	lt (const JClass_t &first, const JClass_t &second, const JType< JTypeList< JHead_t, JTail_t > > &type)
	Less than method for composite data types.
template<class JHead_t >
static bool	lt (const JClass_t &first, const JClass_t &second, const JType< JTypeList< JHead_t, JNullType > > &type)
	Less than method for composite data types.

Detailed Description

Data structure to translate PMT physical to readout address.

Definition at line 31 of file JModuleAddressMap.hh.

Constructor & Destructor Documentation

JPMTAddressTranslator()

JDETECTOR::JPMTAddressTranslator::JPMTAddressTranslator ( const JPMTReadoutAddress & readout, const JPMTPhysicalAddress & address )

inline

Constructor.

Parameters

readout	readout address
address	physical address

Definition at line 42 of file JModuleAddressMap.hh.

                                                              :
      JPMTReadoutAddress (readout),
      JPMTPhysicalAddress(address)
    {}

Member Function Documentation

toString() [1/2]

std::string JDETECTOR::JPMTAddressTranslator::toString ( ) const

inline

Convert PMT address translator to string.

Returns

string

Definition at line 54 of file JModuleAddressMap.hh.

    {
      return toString("% % %");
    }

toString() [2/2]

std::string JDETECTOR::JPMTAddressTranslator::toString ( const std::string & fmt, const std::string target = "%" ) const

inline

Convert PMT address translator to string.

The targets target in the format string fmt are consecutively replaced by tdc, ring and position.

Parameters

fmt	format
target	target

Returns

string

Definition at line 70 of file JModuleAddressMap.hh.

    {
      JLANG::JString buffer(fmt);

      buffer.replace(target, tdc,      1);
      buffer.replace(target, ring,     1);
      buffer.replace(target, position, 1);

      return buffer;
    }

less() [1/2]

bool JDETECTOR::JPMTReadoutAddress::less ( const JPMTReadoutAddress & address ) const

inlineinherited

Less than method.

Parameters

address

PMT readout address

Returns

true if this address before given address; else false

Definition at line 58 of file JPMTReadoutAddress.hh.

    {
      return this->tdc < address.tdc;
    }

getTDC()

int JDETECTOR::JPMTReadoutAddress::getTDC ( ) const

inlineinherited

Get TDC.

Returns

TDC

Definition at line 69 of file JPMTReadoutAddress.hh.

    {
      return tdc;
    }

less() [2/2]

bool JDETECTOR::JPMTPhysicalAddress::less ( const JPMTPhysicalAddress & address ) const

inlineinherited

Less than method.

Parameters

address

PMT physical address

Returns

true if this address before given address; else false

Definition at line 63 of file JPMTPhysicalAddress.hh.

    {
      if (this->ring == address.ring)
        return this->position < address.position;
      else
        return this->ring     < address.ring;
    }

lt() [1/2]

template<class JClass_t , class JTypelist_t >

template<class JHead_t , class JTail_t >

static bool JLANG::JMultiComparable< JClass_t, JTypelist_t >::lt ( const JClass_t & first, const JClass_t & second, const JType< JTypeList< JHead_t, JTail_t > > & type )

inlinestaticprotectedinherited

Less than method for composite data types.

Parameters

first	first object
second	second object
type	type

Returns

true if first object is less than second object; else false

Definition at line 43 of file JMultiComparable.hh.

    {
      if      (static_cast<const JHead_t&>(first)  <
               static_cast<const JHead_t&>(second))
        return true;
      else if (static_cast<const JHead_t&>(second)  <
               static_cast<const JHead_t&>(first))
        return false;
      else
        return lt(first, second, JType<JTail_t>());
    }

lt() [2/2]

template<class JClass_t , class JTypelist_t >

template<class JHead_t >

static bool JLANG::JMultiComparable< JClass_t, JTypelist_t >::lt ( const JClass_t & first, const JClass_t & second, const JType< JTypeList< JHead_t, JNullType > > & type )

inlinestaticprotectedinherited

Less than method for composite data types.

Parameters

first	first object
second	second object
type	type

Returns

true if first object is less than second object; else false

Definition at line 67 of file JMultiComparable.hh.

    {
      return (static_cast<const JHead_t&>(first) <
              static_cast<const JHead_t&>(second));
    }

Member Data Documentation

tdc

int JDETECTOR::JPMTReadoutAddress::tdc

inherited

TDC channel.

Definition at line 127 of file JPMTReadoutAddress.hh.

ring

char JDETECTOR::JPMTPhysicalAddress::ring

inherited

ring number ['A','F']

Definition at line 151 of file JPMTPhysicalAddress.hh.

position

int JDETECTOR::JPMTPhysicalAddress::position

inherited

position within ring [1,6]

Definition at line 152 of file JPMTPhysicalAddress.hh.

---

The documentation for this struct was generated from the following file:

• JModuleAddressMap.hh
