Implementation of binary source morphology. More...

#include <JMorphology.hh>

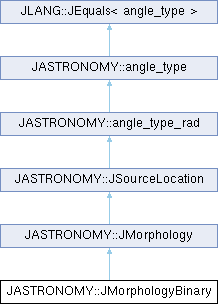

Inheritance diagram for JASTRONOMY::JMorphologyBinary:

Public Member Functions
virtual std::istream &	read (std::istream &in) override
	Read source morphology from input stream.

virtual std::ostream &	write (std::ostream &out) const override
	Write source morphology to output stream.

virtual JSourceLocation	get () const override
	Get location on sky.

const JSourceLocation &	getSourceLocation () const
	Get source location.

	operator JAngle3D () const
	Type conversion operator.

double	getDeclination () const
	Get declination.

double	getRightAscension () const
	Get right ascension.

double	getDot (const JSourceLocation &location) const
	Dot product.

void	set (const angle_type_deg &angle)
	Convert angle.

bool	equals (const angle_type &angle, const double precision=std::numeric_limits< double >::min()) const
	Check equality.

Static Public Member Functions
static std::istream &	read (std::istream &in, JSourceLocation &source)
	Read source location in degrees from input stream.

static std::ostream &	write (std::ostream &out, const JSourceLocation &source)
	Write source location in degrees to output stream.

Public Attributes
double	x1_deg

double	y1_deg

double	w1

double	s1_deg

double	x2_deg

double	y2_deg

double	w2

double	s2_deg

Protected Attributes
double	_theta_

double	_phi_

Detailed Description

Implementation of binary source morphology.

Note that all input angles are in degrees.

Definition at line 310 of file JMorphology.hh.

Member Function Documentation

◆ read() [1/2]

virtual std::istream & JASTRONOMY::JMorphologyBinary::read ( std::istream & in )

inlineoverridevirtual

Read source morphology from input stream.

Parameters

in	input stream

Returns: input stream

Implements JASTRONOMY::JMorphology.

Definition at line 319 of file JMorphology.hh.

    {
      return JMorphology::read(in, *this)
        >> this->x1_deg >> this->y1_deg >> this->w1 >> this->s1_deg
        >> this->x2_deg >> this->y2_deg >> this->w2 >> this->s2_deg;
    }

◆ write() [1/2]

virtual std::ostream & JASTRONOMY::JMorphologyBinary::write ( std::ostream & out ) const

inlineoverridevirtual

Write source morphology to output stream.

Parameters

out	output stream

Returns: output stream

Implements JASTRONOMY::JMorphology.

Definition at line 333 of file JMorphology.hh.

    {
      return JMorphology::write(out, *this)
        << ' ' << this->x1_deg << ' ' << this->y1_deg << ' ' << this->w1 << ' ' << this->s1_deg
        << ' ' << this->x2_deg << ' ' << this->y2_deg << ' ' << this->w2 << ' ' << this->s2_deg;
    }

◆ get()

virtual JSourceLocation JASTRONOMY::JMorphologyBinary::get ( ) const

inlineoverridevirtual

Get location on sky.

Returns: location on sky

Implements JASTRONOMY::JMorphology.

Definition at line 346 of file JMorphology.hh.

    {
      using namespace JPP;

      const double w = gRandom->Uniform(0.0, w1 + w2);

      const double x = sin(getRadians(w < w1 ? x1_deg : x2_deg));
      const double y = sin(getRadians(w < w1 ? y1_deg : y2_deg));
      const double s =     getRadians(w < w1 ? s1_deg : s2_deg);

      JDirection3D v(x, y, sqrt(1.0 - x*x - y*y));

      JDirection3D u(0.0, 0.0, 1.0);

      if (s > 0.0) {

        const double theta = gRandom->Gaus(0.0, s);
        const double phi   = gRandom->Uniform(-PI, +PI);

        const JRotation3D R(JAngle3D(theta, phi));

        u.rotate_back(R);
      }
      {
        const JRotation3D R(v);

        u.rotate_back(R);
      }

      const JRotation3D Rs(this->getSourceLocation());

      u.rotate_back(Rs);

      return JSourceLocation(u);
    }

◆ getSourceLocation()

const JSourceLocation & JASTRONOMY::JMorphology::getSourceLocation ( ) const

inlineinherited

Get source location.

Returns: source location

Definition at line 58 of file JMorphology.hh.

    {
      return static_cast<const JSourceLocation&>(*this);
    }

◆ read() [2/2]

static std::istream & JASTRONOMY::JMorphology::read	(	std::istream &	in,
		JSourceLocation &	source )

inlinestaticinherited

Read source location in degrees from input stream.

Parameters

in	input stream
source	source

Returns: input stream

Definition at line 71 of file JMorphology.hh.

    {
      angle_type_deg angle;

      in >> angle;

      source.set(angle);

      return in;
    }

◆ write() [2/2]

static std::ostream & JASTRONOMY::JMorphology::write	(	std::ostream &	out,
		const JSourceLocation &	source )

inlinestaticinherited

Write source location in degrees to output stream.

Parameters

out	output stream
source	source

Returns: output stream

Definition at line 90 of file JMorphology.hh.

    {
      return out << angle_type_deg(source);
    }

◆ operator JAngle3D()

JASTRONOMY::JSourceLocation::operator JAngle3D ( ) const

inlineinherited

Type conversion operator.

Returns: polar angles [rad]

Definition at line 496 of file JAstronomy.hh.

    {
      return JAngle3D(PI/2 - _theta_, _phi_);
    }

◆ getDeclination()

double JASTRONOMY::JSourceLocation::getDeclination ( ) const

inlineinherited

Get declination.

Definition at line 502 of file JAstronomy.hh.

◆ getRightAscension()

double JASTRONOMY::JSourceLocation::getRightAscension ( ) const

inlineinherited

Get right ascension.

Definition at line 503 of file JAstronomy.hh.

◆ getDot()

double JASTRONOMY::JSourceLocation::getDot ( const JSourceLocation & location ) const

inlineinherited

Dot product.

Parameters

location source location

Returns: dot product

Definition at line 512 of file JAstronomy.hh.

    {
      return
        cos(this->_theta_) * cos(location._theta_) * cos(this->_phi_ - location._phi_) +
        sin(this->_theta_) * sin(location._theta_);
    }

◆ set()

void JASTRONOMY::angle_type_rad::set ( const angle_type_deg & angle )

inlineinherited

Convert angle.

Parameters

angle angle [rad]

Definition at line 293 of file JAstronomy.hh.

    {
      static_cast<angle_type_rad&>(*this) = angle_type_rad(angle);
    }

◆ equals()

bool JASTRONOMY::angle_type::equals	(	const angle_type &	angle,
		const double	precision = std::numeric_limits<double>::min() ) const

inlineinherited

Check equality.

Parameters

angle	pair of angles
precision	precision

Returns: true if angles are equal; else false

Definition at line 194 of file JAstronomy.hh.

    {
      return (fabs(this->_theta_ - angle._theta_) <= precision &&
              fabs(this->_phi_   - angle._phi_)   <= precision);
    }

Member Data Documentation

◆ x1_deg

double JASTRONOMY::JMorphologyBinary::x1_deg

Definition at line 383 of file JMorphology.hh.

◆ y1_deg

double JASTRONOMY::JMorphologyBinary::y1_deg

Definition at line 383 of file JMorphology.hh.

◆ w1

double JASTRONOMY::JMorphologyBinary::w1

Definition at line 383 of file JMorphology.hh.

◆ s1_deg

double JASTRONOMY::JMorphologyBinary::s1_deg

Definition at line 383 of file JMorphology.hh.

◆ x2_deg

double JASTRONOMY::JMorphologyBinary::x2_deg

Definition at line 384 of file JMorphology.hh.

◆ y2_deg

double JASTRONOMY::JMorphologyBinary::y2_deg

Definition at line 384 of file JMorphology.hh.

◆ w2

double JASTRONOMY::JMorphologyBinary::w2

Definition at line 384 of file JMorphology.hh.

◆ s2_deg

double JASTRONOMY::JMorphologyBinary::s2_deg

Definition at line 384 of file JMorphology.hh.

◆ _theta_

double JASTRONOMY::angle_type::_theta_

protectedinherited

Definition at line 250 of file JAstronomy.hh.

◆ _phi_

double JASTRONOMY::angle_type::_phi_

protectedinherited

Definition at line 251 of file JAstronomy.hh.

The documentation for this struct was generated from the following file:

JMorphology.hh
