JASTRONOMY::JRealExperiment Struct Reference

Real experiment using PDF of signal and background. More...

#include <JRealExperiment.hh>

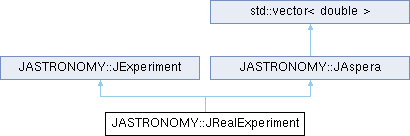

Inheritance diagram for JASTRONOMY::JRealExperiment:
JASTRONOMY::JExperiment JASTRONOMY::JAspera std::vector< double >

Public Member Functions

 JRealExperiment ()
 Default constructor.

template<class H_t >
 JRealExperiment (const H_t &hd, const H_t &hs, const H_t &hb)
 Constructor.

void add (const TObject *pd, const TObject *ps, const TObject *pb)
 Add objects with data and PDFs of signal and background.

void add (const TH1 &hd, const TH1 &hs, const TH1 &hb)
 Add histograms with data and PDFs of signal and background.

void add (const TH2 &hd, const TH2 &hs, const TH2 &hb)
 Add histograms with data and PDFs of signal and background.

void add (const TH3 &hd, const TH3 &hs, const TH3 &hb)
 Add histograms with data and PDFs of signal and background.

void add (const size_t n, const double s, const double b)
 Add data, signal and background.

void put (const double s, const double b)
 Put signal and background to list of pre-computed N/S values.

void put (const size_t n, const double s, const double b)
 Put signal and background to list of pre-computed N/S values.

double getLikelihood (const double p) const
 Get likelihood for given signal strength.

double getDerivative (const double p) const
 Get derivative of likelihood for given signal strength.

fit_type operator() (const bool ns=false) const
 Fit signal strength.

double getTestStatisticForUpperLimit (const double ps) const
 Get test statistic for given signal strength.

double getSignal () const
 Get total signal strength.

void setSignal (const double wS)
 Set signal strength.

void addSignal (const double wS)
 Add signal strength.


Static Public Member Functions

static double getSNR ()
 Get minimal signa-to-noise ratio.

static void setSNR (const double value)
 Set minimal signa-to-noise ratio.

static bool check (const double s, const double b)
 Check validity of signal and background.

static bool check (const TAxis *ha, const TAxis *hb)
 Check histogram bins.

static bool check (const TH1 &ha, const TH1 &hb)
 Check histogram bins.

static bool check (const TH2 &ha, const TH2 &hb)
 Check histogram bins.

static bool check (const TH3 &ha, const TH3 &hb)
 Check histogram bins.


Static Public Attributes

static constexpr double EPSILON = 1.0e-3
 precision determination of signal strength


Protected Member Functions

template<class H_t >
bool add (const TObject *pd, const TObject *ps, const TObject *pb)
 Add objects with data and PDFs of signal and background.


Protected Attributes

double ws = 0.0
 total signal strength


Static Private Member Functions

static double & get_snr ()
 Get minimal signa-to-noise ratio.


Detailed Description

Real experiment using PDF of signal and background.

Definition at line 29 of file JRealExperiment.hh.

Constructor & Destructor Documentation

◆ JRealExperiment() [1/2]

JASTRONOMY::JRealExperiment::JRealExperiment ( )
inline

Default constructor.

Definition at line 36 of file JRealExperiment.hh.

37 {}

◆ JRealExperiment() [2/2]

template<class H_t >
JASTRONOMY::JRealExperiment::JRealExperiment ( const H_t & hd,
const H_t & hs,
const H_t & hb )
inline

Constructor.

Parameters
hdhistogram with data
hshistogram with PDF of signal
hbhistogram with PDF of background

Definition at line 48 of file JRealExperiment.hh.

51 {
52 add(hd, hs, hb);
53 }
JASTRONOMY::JRealExperiment::add
void add(const TObject *pd, const TObject *ps, const TObject *pb)
Add objects with data and PDFs of signal and background.
Definition JRealExperiment.hh:63

Member Function Documentation

◆ add() [1/6]

void JASTRONOMY::JRealExperiment::add ( const TObject * pd,
const TObject * ps,
const TObject * pb )
inline

Add objects with data and PDFs of signal and background.

Parameters
pdpointer to object with data
pspointer to object with PDF of signal
pbpointer to object with PDF of background

Definition at line 63 of file JRealExperiment.hh.

66 {
67 if (add<TH3>(pd, ps, pb)) { return; }
68 if (add<TH2>(pd, ps, pb)) { return; }
69 if (add<TH1>(pd, ps, pb)) { return; }
70 }

◆ add() [2/6]

void JASTRONOMY::JRealExperiment::add ( const TH1 & hd,
const TH1 & hs,
const TH1 & hb )
inline

Add histograms with data and PDFs of signal and background.

Parameters
hdhistogram with data
hshistogram with PDF of signal
hbhistogram with PDF of background

Definition at line 80 of file JRealExperiment.hh.

83 {
84 for (Int_t ix = 1; ix <= hs.GetXaxis()->GetNbins(); ++ix) {
85 add(hd.GetBinContent(ix),
86 hs.GetBinContent(ix),
87 hb.GetBinContent(ix));
88 }
89 }

◆ add() [3/6]

void JASTRONOMY::JRealExperiment::add ( const TH2 & hd,
const TH2 & hs,
const TH2 & hb )
inline

Add histograms with data and PDFs of signal and background.

Parameters
hdhistogram with data
hshistogram with PDF of signal
hbhistogram with PDF of background

Definition at line 99 of file JRealExperiment.hh.

102 {
103 for (Int_t ix = 1; ix <= hs.GetXaxis()->GetNbins(); ++ix) {
104 for (Int_t iy = 1; iy <= hs.GetYaxis()->GetNbins(); ++iy) {
105 add(hd.GetBinContent(ix, iy),
106 hs.GetBinContent(ix, iy),
107 hb.GetBinContent(ix, iy));
108 }
109 }
110 }

◆ add() [4/6]

void JASTRONOMY::JRealExperiment::add ( const TH3 & hd,
const TH3 & hs,
const TH3 & hb )
inline

Add histograms with data and PDFs of signal and background.

Parameters
hdhistogram with data
hshistogram with PDF of signal
hbhistogram with PDF of background

Definition at line 120 of file JRealExperiment.hh.

123 {
124 for (Int_t ix = 1; ix <= hs.GetXaxis()->GetNbins(); ++ix) {
125 for (Int_t iy = 1; iy <= hs.GetYaxis()->GetNbins(); ++iy) {
126 for (Int_t iz = 1; iz <= hs.GetZaxis()->GetNbins(); ++iz) {
127 add(hd.GetBinContent(ix, iy, iz),
128 hs.GetBinContent(ix, iy, iz),
129 hb.GetBinContent(ix, iy, iz));
130 }
131 }
132 }
133 }

◆ add() [5/6]

void JASTRONOMY::JRealExperiment::add ( const size_t n,
const double s,
const double b )
inline

Add data, signal and background.

Parameters
ndata
ssignal
bbackground

Definition at line 143 of file JRealExperiment.hh.

146 {
147 if (check(s, b)) {
148 put(n, s, b);
149 }
150 }
JASTRONOMY::JAspera::put
void put(const double s, const double b)
Put signal and background to list of pre-computed N/S values.
Definition JAspera.hh:44
JASTRONOMY::JExperiment::check
static bool check(const double s, const double b)
Check validity of signal and background.
Definition JExperiment.hh:56

◆ add() [6/6]

template<class H_t >
bool JASTRONOMY::JRealExperiment::add ( const TObject * pd,
const TObject * ps,
const TObject * pb )
inlineprotected

Add objects with data and PDFs of signal and background.

Parameters
pdpointer to object with data
pspointer to object with PDF of signal
pbpointer to object with PDF of background
Returns
true if added; else false

Definition at line 162 of file JRealExperiment.hh.

165 {
166 if (dynamic_cast<const H_t*>(pd) != NULL &&
167 dynamic_cast<const H_t*>(ps) != NULL &&
168 dynamic_cast<const H_t*>(pb) != NULL) {
169
170 const H_t& hd = dynamic_cast<const H_t&>(*pd);
171 const H_t& hs = dynamic_cast<const H_t&>(*ps);
172 const H_t& hb = dynamic_cast<const H_t&>(*pb);
173
174 if (check(hd, hs) && check(hs, hb)) {
175
176 add(hd, hs, hb);
177
178 return true;
179 }
180 }
181
182 return false;
183 }

◆ getSNR()

static double JASTRONOMY::JExperiment::getSNR ( )
inlinestaticinherited

Get minimal signa-to-noise ratio.

Returns
signa-to-noise ratio.

Definition at line 32 of file JExperiment.hh.

33 {
34 return get_snr();
35 }
JASTRONOMY::JExperiment::get_snr
static double & get_snr()
Get minimal signa-to-noise ratio.
Definition JExperiment.hh:123

◆ setSNR()

static void JASTRONOMY::JExperiment::setSNR ( const double value)
inlinestaticinherited

Set minimal signa-to-noise ratio.

Parameters
valuesigna-to-noise ratio.

Definition at line 43 of file JExperiment.hh.

44 {
45 get_snr() = value;
46 }

◆ check() [1/5]

static bool JASTRONOMY::JExperiment::check ( const double s,
const double b )
inlinestaticinherited

Check validity of signal and background.

Parameters
ssignal
bbackground
Returns
true if signal and backgroud are valid; else false

Definition at line 56 of file JExperiment.hh.

57 {
58 return (s > 0.0 && b > 0.0 && s/b >= getSNR());
59 }
JASTRONOMY::JExperiment::getSNR
static double getSNR()
Get minimal signa-to-noise ratio.
Definition JExperiment.hh:32

◆ check() [2/5]

static bool JASTRONOMY::JExperiment::check ( const TAxis * ha,
const TAxis * hb )
inlinestaticinherited

Check histogram bins.

Parameters
hahistogram axis
hbhistogram axis
Returns
true if same binning; else false

Definition at line 69 of file JExperiment.hh.

70 {
71 return (ha->GetNbins() == hb->GetNbins() &&
72 ha->GetXmin() == hb->GetXmin() &&
73 ha->GetXmax() == hb->GetXmax());
74 }

◆ check() [3/5]

static bool JASTRONOMY::JExperiment::check ( const TH1 & ha,
const TH1 & hb )
inlinestaticinherited

Check histogram bins.

Parameters
hahistogram
hbhistogram
Returns
true if same binning; else false

Definition at line 83 of file JExperiment.hh.

84 {
85 return check(ha.GetXaxis(), hb.GetXaxis());
86 }

◆ check() [4/5]

static bool JASTRONOMY::JExperiment::check ( const TH2 & ha,
const TH2 & hb )
inlinestaticinherited

Check histogram bins.

Parameters
hahistogram
hbhistogram
Returns
true if same binning; else false

Definition at line 96 of file JExperiment.hh.

97 {
98 return (check(ha.GetXaxis(), hb.GetXaxis()) &&
99 check(ha.GetYaxis(), hb.GetYaxis()));
100 }

◆ check() [5/5]

static bool JASTRONOMY::JExperiment::check ( const TH3 & ha,
const TH3 & hb )
inlinestaticinherited

Check histogram bins.

Parameters
hahistogram
hbhistogram
Returns
true if same binning; else false

Definition at line 110 of file JExperiment.hh.

111 {
112 return (check(ha.GetXaxis(), hb.GetXaxis()) &&
113 check(ha.GetYaxis(), hb.GetYaxis()) &&
114 check(ha.GetZaxis(), hb.GetZaxis()));
115 }

◆ get_snr()

static double & JASTRONOMY::JExperiment::get_snr ( )
inlinestaticprivateinherited

Get minimal signa-to-noise ratio.

Returns
signa-to-noise ratio.

Definition at line 123 of file JExperiment.hh.

124 {
125 static double value = 0.0;
126
127 return value;
128 }

◆ put() [1/2]

void JASTRONOMY::JAspera::put ( const double s,
const double b )
inlineinherited

Put signal and background to list of pre-computed N/S values.

Parameters
ssignal
bbackground

Definition at line 44 of file JAspera.hh.

46 {
47 push_back(b/s);
48
49 ws += s;
50 }
JASTRONOMY::JAspera::ws
double ws
total signal strength
Definition JAspera.hh:265

◆ put() [2/2]

void JASTRONOMY::JAspera::put ( const size_t n,
const double s,
const double b )
inlineinherited

Put signal and background to list of pre-computed N/S values.

Parameters
ndata
ssignal
bbackground

Definition at line 60 of file JAspera.hh.

63 {
64 for (size_t i = 0; i != n; ++i) {
65 push_back(b/s);
66 }
67
68 ws += s;
69 }
JTOOLS::n
const int n
Definition JPolint.hh:791

◆ getLikelihood()

double JASTRONOMY::JAspera::getLikelihood ( const double p) const
inlineinherited

Get likelihood for given signal strength.

Parameters
psignal strength
Returns
likelihood

Definition at line 78 of file JAspera.hh.

79 {
80 double y = -p * ws;
81
82 for (const double i : static_cast<const std::vector<double>&>(*this)) {
83 y += log1p(p/i);
84 }
85
86 return y;
87 }

◆ getDerivative()

double JASTRONOMY::JAspera::getDerivative ( const double p) const
inlineinherited

Get derivative of likelihood for given signal strength.

Parameters
psignal strength
Returns
derivative of likelihood

Definition at line 96 of file JAspera.hh.

97 {
98 double y = -ws;
99
100 for (const double i : static_cast<const std::vector<double>&>(*this)) {
101 y += 1.0 / (p + i);
102 }
103
104 return y;
105 }

◆ operator()()

fit_type JASTRONOMY::JAspera::operator() ( const bool ns = false) const
inlineinherited

Fit signal strength.

Parameters
nsallow for negative signal
Returns
result

Definition at line 114 of file JAspera.hh.

115 {
116 using namespace std;
117
118 if (this->empty()) {
119
120 // nothing to be done
121
122 return { 0.0, 0.0 };
123 }
124
125 double x1 = 0.0;
126 double x2 = 0.0;
127
128 double f1 = getDerivative(0.0); // discriminator between positive and negative signal
129 double f2 = 0.0;
130
131 if (f1 == 0.0) {
132
133 return { 0.0, 0.0 };
134
135 } else if (f1 > 0.0) { // positive signal
136
137 x1 = 0.0; // lower limit corresponds to no signal
138 x2 = (double) this->size() / ws; // upper limit corresponds to no background (i.e. all N/S = 0)
139
140 f2 = getDerivative(x2);
141
142 } else if (ns) { // negative signal
143
144 x2 = 0.0; // upper limit corresponds to no signal
145 x1 = -(*this)[0]; // lower limit corresponds to largest negated N/S ratio
146
147 for (const double i : static_cast<const std::vector<double>&>(*this)) {
148 if (-i > x1) {
149 x1 = -i;
150 }
151 }
152
153 x1 += EPSILON; // offset
154
155 f2 = f1;
156 f1 = getDerivative(x1);
157
158 } else {
159
160 return { 0.0, 0.0 };
161 }
162
163 // Ridder's method
164
165 while (x2 - x1 > EPSILON) {
166
167 const double xm = 0.5 * (x1 + x2);
168 const double fm = getDerivative(xm);
169
170 const double s = sqrt(fm*fm - f1*f2);
171
172 if (s == 0.0) {
173 break;
174 }
175
176 const double xn = xm + (xm - x1) * fm/s;
177 const double fn = getDerivative(xn);
178
179 if (fn == 0.0) {
180 return { getLikelihood(xn), xn };
181 }
182
183 if (signbit(fn) != signbit(fm)) {
184
185 x1 = xm;
186 f1 = fm;
187 x2 = xn;
188 f2 = fn;
189
190 } else {
191
192 if (signbit(fn)) {
193
194 x2 = xn;
195 f2 = fn;
196
197 } else {
198
199 x1 = xn;
200 f1 = fn;
201 }
202 }
203 }
204
205 const double x = 0.5 * (x1 + x2);
206
207 return { getLikelihood(x), x };
208 }
JASTRONOMY::JAspera::getLikelihood
double getLikelihood(const double p) const
Get likelihood for given signal strength.
Definition JAspera.hh:78
JASTRONOMY::JAspera::EPSILON
static constexpr double EPSILON
precision determination of signal strength
Definition JAspera.hh:26
JASTRONOMY::JAspera::getDerivative
double getDerivative(const double p) const
Get derivative of likelihood for given signal strength.
Definition JAspera.hh:96

◆ getTestStatisticForUpperLimit()

double JASTRONOMY::JAspera::getTestStatisticForUpperLimit ( const double ps) const
inlineinherited

Get test statistic for given signal strength.

See formula 16 in this reference.

Parameters
pssignal strength
Returns
test statistic

Definition at line 218 of file JAspera.hh.

219 {
220 const fit_type result = (*this)(true);
221
222 if (result.signal <= 0.0)
223 return 0.0 - this->getLikelihood(ps);
224 else if (result.signal <= ps)
225 return result.likelihood - this->getLikelihood(ps);
226 else
227 return 0.0;
228 }

◆ getSignal()

double JASTRONOMY::JAspera::getSignal ( ) const
inlineinherited

Get total signal strength.

Returns
signal strength

Definition at line 236 of file JAspera.hh.

237 {
238 return ws;
239 }

◆ setSignal()

void JASTRONOMY::JAspera::setSignal ( const double wS)
inlineinherited

Set signal strength.

Parameters
wSsignal strength

Definition at line 247 of file JAspera.hh.

248 {
249 ws = wS;
250 }

◆ addSignal()

void JASTRONOMY::JAspera::addSignal ( const double wS)
inlineinherited

Add signal strength.

Parameters
wSsignal strength

Definition at line 258 of file JAspera.hh.

259 {
260 ws += wS;
261 }

Member Data Documentation

◆ EPSILON

double JASTRONOMY::JAspera::EPSILON = 1.0e-3
staticconstexprinherited

precision determination of signal strength

Definition at line 26 of file JAspera.hh.

◆ ws

double JASTRONOMY::JAspera::ws = 0.0
protectedinherited

total signal strength

Definition at line 265 of file JAspera.hh.

The documentation for this struct was generated from the following file:
Generated by doxygen 1.12.0
