JASTRONOMY::JMorphologyBinary Struct Reference

Implementation of binary source morphology. More...

#include <JMorphology.hh>

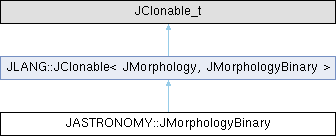

Inheritance diagram for JASTRONOMY::JMorphologyBinary:

Public Types
typedef JClonable< JClonable_t >::clone_type	clone_type

Public Member Functions
virtual std::istream &	read (std::istream &in) override
	Read source morphology from input stream.
virtual std::ostream &	write (std::ostream &out) const override
	Write source morphology to output stream.
virtual JSourceLocation	get () const override
	Get location on sky.
virtual clone_type	clone () const override
	Get clone of this object.

Public Attributes
double	x1_deg
double	y1_deg
double	w1
double	s1_deg
double	x2_deg
double	y2_deg
double	w2
double	s2_deg

Detailed Description

Implementation of binary source morphology.

Note that all input angles are in degrees.

Definition at line 305 of file JMorphology.hh.

Member Typedef Documentation

clone_type

template<class JClonable_t , class JDerived_t >

JClonable<JClonable_t>::clone_type JLANG::JClonable< JClonable_t, JDerived_t >::clone_type

inherited

Definition at line 61 of file JClonable.hh.

Member Function Documentation

read()

virtual std::istream & JASTRONOMY::JMorphologyBinary::read ( std::istream & in )

inlineoverridevirtual

Read source morphology from input stream.

Parameters

in	input stream

Returns

input stream

Definition at line 314 of file JMorphology.hh.

    {
      return JMorphology::read(in, *this)
        >> this->x1_deg >> this->y1_deg >> this->w1 >> this->s1_deg
        >> this->x2_deg >> this->y2_deg >> this->w2 >> this->s2_deg;
    }

write()

virtual std::ostream & JASTRONOMY::JMorphologyBinary::write ( std::ostream & out ) const

inlineoverridevirtual

Write source morphology to output stream.

Parameters

out	output stream

Returns

output stream

Definition at line 328 of file JMorphology.hh.

    {
      return JMorphology::write(out, *this)
        << ' ' << this->x1_deg << ' ' << this->y1_deg << ' ' << this->w1 << ' ' << this->s1_deg
        << ' ' << this->x2_deg << ' ' << this->y2_deg << ' ' << this->w2 << ' ' << this->s2_deg;
    }

get()

virtual JSourceLocation JASTRONOMY::JMorphologyBinary::get ( ) const

inlineoverridevirtual

Get location on sky.

Returns

location on sky

Definition at line 341 of file JMorphology.hh.

    {
      using namespace JPP;

      const double w = gRandom->Uniform(0.0, w1 + w2);

      const double x = sin(getRadians(w < w1 ? x1_deg : x2_deg));
      const double y = sin(getRadians(w < w1 ? y1_deg : y2_deg));
      const double s =     getRadians(w < w1 ? s1_deg : s2_deg);

      JDirection3D v(x, y, sqrt(1.0 - x*x - y*y));

      JDirection3D u(0.0, 0.0, 1.0);

      if (s > 0.0) {

        const double theta = gRandom->Gaus(0.0, s);
        const double phi   = gRandom->Uniform(-PI, +PI);

        const JRotation3D R(JAngle3D(theta, phi));

        u.rotate_back(R);
      }
      {
        const JRotation3D R(v);

        u.rotate_back(R);
      }

      const JRotation3D Rs(this->getSourceLocation());

      u.rotate_back(Rs);

      return JSourceLocation(u);
    }

clone()

template<class JClonable_t , class JDerived_t >

virtual clone_type JLANG::JClonable< JClonable_t, JDerived_t >::clone ( ) const

inlineoverridevirtualinherited

Get clone of this object.

Returns

pointer to newly created object

Reimplemented in JPHYSICS::JPD0Transformer_t< JArgument_t >, JPHYSICS::JPDFTransformer< 2, JArgument_t >, JPHYSICS::JPDFTransformer< 3, JArgument_t >, JPHYSICS::JPDFTransformer< 4, JArgument_t >, JPHYSICS::JPDFTransformer< 5, JArgument_t >, JPHYSICS::JPDFTransformer_t< JArgument_t >, JPHYSICS::JPDGTransformer_t< JArgument_t >, and JTOOLS::JMultiMapTransformer< N, JArgument_t >::JMultiMapDefaultTransformer.

Definition at line 69 of file JClonable.hh.

    {
      return new JDerived_t(static_cast<const JDerived_t&>(*this));
    }

Member Data Documentation

x1_deg

double JASTRONOMY::JMorphologyBinary::x1_deg

Definition at line 378 of file JMorphology.hh.

y1_deg

double JASTRONOMY::JMorphologyBinary::y1_deg

Definition at line 378 of file JMorphology.hh.

w1

double JASTRONOMY::JMorphologyBinary::w1

Definition at line 378 of file JMorphology.hh.

s1_deg

double JASTRONOMY::JMorphologyBinary::s1_deg

Definition at line 378 of file JMorphology.hh.

x2_deg

double JASTRONOMY::JMorphologyBinary::x2_deg

Definition at line 379 of file JMorphology.hh.

y2_deg

double JASTRONOMY::JMorphologyBinary::y2_deg

Definition at line 379 of file JMorphology.hh.

w2

double JASTRONOMY::JMorphologyBinary::w2

Definition at line 379 of file JMorphology.hh.

s2_deg

double JASTRONOMY::JMorphologyBinary::s2_deg

Definition at line 379 of file JMorphology.hh.

---

The documentation for this struct was generated from the following file:

• JMorphology.hh
