JPHYSICS::JDISSource Class Reference

Implementation for calculation of inverse interaction length and shower energy due to deep-inelastic muon-nucleon scattering. More...

#include <JRadiationSource.hh>

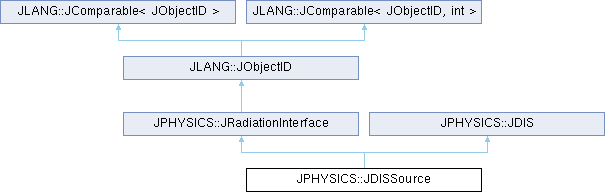

Inheritance diagram for JPHYSICS::JDISSource:

Public Member Functions
	JDISSource (const int id, const double density)
	Constructor.
virtual double	getInverseInteractionLength (const double E) const override
	Get inverse interaction length.
virtual double	getEnergyOfShower (const double E) const override
	Get energy of shower.
virtual double	getThetaRMS (const double E, const double Es) const override
	Get RMS of scattering angle.
int	getID () const
	Get identifier.
int &	getID ()
	Get identifier.
void	setID (const int id)
	Set identifier.
bool	less (const JObjectID &object) const
	Less than method.
bool	less (const int id) const
	Less than method.
bool	more (const int id) const
	More than method.
double	getCrossSection (const double E) const
	Get cross section.
double	getP (const double E, const double v) const
	Get probability of given energy fraction.
double	getE (const double E) const
	Get shower energy.
double	getV (const double E) const
	Get breakpoint.

Protected Attributes
const double	rho
int	__id

Detailed Description

Implementation for calculation of inverse interaction length and shower energy due to deep-inelastic muon-nucleon scattering.

This class implements the JRadiationInterface interface.

Definition at line 156 of file JRadiationSource.hh.

Constructor & Destructor Documentation

JDISSource()

JPHYSICS::JDISSource::JDISSource ( const int id, const double density )

inline

Constructor.

Parameters

id	radiation identifier
density	mass density of radiation material [gr/cm³]

Definition at line 167 of file JRadiationSource.hh.

                                     :
      JRadiationInterface(id),
      rho(density)
    {}

Member Function Documentation

getInverseInteractionLength()

virtual double JPHYSICS::JDISSource::getInverseInteractionLength ( const double E ) const

inlineoverridevirtual

Get inverse interaction length.

Parameters

E	muon energy [GeV]

Returns

inverse interaction length [m^-1]

Implements JPHYSICS::JRadiationInterface.

Definition at line 180 of file JRadiationSource.hh.

    {
      return this->getCrossSection(E) * (rho / NUCLEON_MOLAR_MASS) * AVOGADRO * 1.0e2;
    }

getEnergyOfShower()

virtual double JPHYSICS::JDISSource::getEnergyOfShower ( const double E ) const

inlineoverridevirtual

Get energy of shower.

Parameters

E	muon energy [GeV]

Returns

shower energy [GeV]

Implements JPHYSICS::JRadiationInterface.

Definition at line 192 of file JRadiationSource.hh.

    {
      return this->getE(E);
    }

getThetaRMS()

virtual double JPHYSICS::JDISSource::getThetaRMS ( const double E, const double Es ) const

inlineoverridevirtual

Get RMS of scattering angle.

Parameters

E	muon energy [GeV]
Es	shower energy [GeV]

Returns

RMS scattering angle [rad]

Implements JPHYSICS::JRadiationInterface.

Definition at line 205 of file JRadiationSource.hh.

    {
      return static_cast<const JDIS*>(this)->getThetaRMS(E, Es/E);
    }

getID() [1/2]

int JLANG::JObjectID::getID ( ) const

inlineinherited

Get identifier.

Returns

identifier

Definition at line 50 of file JObjectID.hh.

    {
      return __id;
    }

getID() [2/2]

int & JLANG::JObjectID::getID ( )

inlineinherited

Get identifier.

Returns

identifier

Definition at line 61 of file JObjectID.hh.

    {
      return __id;
    }

setID()

void JLANG::JObjectID::setID ( const int id )

inlineinherited

Set identifier.

Parameters

id	identifier

Definition at line 72 of file JObjectID.hh.

    {
      this->__id = id;
    }

less() [1/2]

bool JLANG::JObjectID::less ( const JObjectID & object ) const

inlineinherited

Less than method.

Parameters

object

object identifier

Returns

true if this identifier less than given identifier; else false

Definition at line 84 of file JObjectID.hh.

    {
      return this->getID() < object.getID();
    }

less() [2/2]

bool JLANG::JObjectID::less ( const int id ) const

inlineinherited

Less than method.

Parameters

id	identifier

Returns

true if this identifier less than given identifier; else false

Definition at line 96 of file JObjectID.hh.

    {
      return this->getID() < id;
    }

more()

bool JLANG::JObjectID::more ( const int id ) const

inlineinherited

More than method.

Parameters

id	identifier

Returns

true if this identifier greater than given identifier; else false

Definition at line 108 of file JObjectID.hh.

    {
      return this->getID() > id;
    }

getCrossSection()

double JPHYSICS::JDIS::getCrossSection ( const double E ) const

inlineinherited

Get cross section.

Parameters

E	muon energy [GeV]

Returns

cross section [cm^2]

Definition at line 46 of file JDIS.hh.

    {
      const double x = log10(E*1.0e+1);

      if (E > JDIS_t::E0)
        return 0.35e-30 * pow(1.0 - JDIS_t::E0/E, 2.0) * exp(-2.10/x) * pow(10.0, 0.125*x);
      else
        return 0.0;
    }

getP()

double JPHYSICS::JDIS::getP ( const double E, const double v ) const

inlineinherited

Get probability of given energy fraction.

Parameters

E	muon energy [GeV]
v	energy fraction

Returns

probability

Definition at line 64 of file JDIS.hh.

    {
      const JDIS_t dis(E);

      return dis.getP(v);
    }

getE()

double JPHYSICS::JDIS::getE ( const double E ) const

inlineinherited

Get shower energy.

Parameters

E	muon energy [GeV]

Returns

shower energy [GeV]

Definition at line 78 of file JDIS.hh.

    {
      const JDIS_t dis(E);

      return dis.getE();
    }

getV()

double JPHYSICS::JDIS::getV ( const double E ) const

inlineinherited

Get breakpoint.

Parameters

E	muon energy [GeV]

Returns

energy fraction

Definition at line 110 of file JDIS.hh.

    {
      return JDIS_t::E1/E;
    }

Member Data Documentation

rho

const double JPHYSICS::JDISSource::rho

protected

Definition at line 211 of file JRadiationSource.hh.

__id

int JLANG::JObjectID::__id

protectedinherited

Definition at line 140 of file JObjectID.hh.

---

The documentation for this class was generated from the following file:

• JRadiationSource.hh
