JFIT::JRegressor< JShower3EZ, JSimplex > Struct Reference

Regressor function object for JShower3EZ fit using JSimplex minimiser. More...

#include <JShower3EZRegressor.hh>

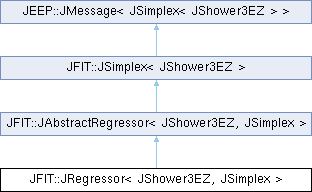

Inheritance diagram for JFIT::JRegressor< JShower3EZ, JSimplex >:

Public Types
typedef JTOOLS::JSplineFunction1S_t	JFunction1D_t
typedef JTOOLS::JMapList< JTOOLS::JPolint0FunctionalMap, JTOOLS::JMapList< JTOOLS::JPolint0FunctionalMap, JTOOLS::JMapList< JTOOLS::JPolint0FunctionalGridMap, JTOOLS::JMapList< JTOOLS::JPolint0FunctionalGridMap > > > >	JPDFMaplist_t
typedef JPHYSICS::JPDFTable< JFunction1D_t, JPDFMaplist_t >	JPDF_t
typedef JTOOLS::JMapList< JTOOLS::JPolint0FunctionalMap, JTOOLS::JMapList< JTOOLS::JPolint0FunctionalMap, JTOOLS::JMapList< JTOOLS::JPolint0FunctionalGridMap, JTOOLS::JMapList< JTOOLS::JPolint0FunctionalGridMap > > > >	JNPEMaplist_t
typedef JPHYSICS::JNPETable< double, double, JNPEMaplist_t >	JNPE_t
typedef JSimplex< JShower3EZ >	minimiser_type
typedef JRegressor< JShower3EZ, JSimplex >	regressor_type
typedef minimiser_type::result_type	result_type

Public Member Functions
	JRegressor (const std::string &fileDescriptor)
	Parameterized constructor.
double	operator() (const JShower3EZ &shower, const JPMTW0 &pmt) const
	Fit function.
JNPE_t::result_type	getH0 (const double R_Hz) const
	Get background hypothesis value for time integrated PDF.
JNPE_t::result_type	getH1 (const double D, const double cd, const double theta, const double phi, const double E) const
	Get signal hypothesis value for time integrated PDF.
result_type	operator() (const JShower3EZ &value, T __begin, T __end)
	Global fit.
double	operator() (const JFunction_t &fit, T __begin, T __end)
	Multi-dimensional fit.
double	operator() (const JFunction_t &fit, T __begin, T __end, const JShower3EZ &step)
	1D fit.

Public Attributes
JNPE_t	npe [NUMBER_OF_PDFS]
	PDF.
JLANG::JSharedPointer< JMEstimator >	estimator
	M-Estimator function.
JShower3EZ	value
std::vector< JShower3EZ >	step
int	numberOfIterations

Static Public Attributes
static JTimeRange	T_ns
	Time window with respect to Cherenkov hypothesis [ns].
static double	Vmax_npe = std::numeric_limits<double>::max()
	Maximal integral of PDF [npe].
static const int	NUMBER_OF_PDFS = 2
static const JPDFType_t	pdf_t [NUMBER_OF_PDFS]
static int	MAXIMUM_ITERATIONS
	maximal number of iterations
static double	EPSILON
	maximal distance to minimum
static int	debug = 0
	debug level (default is off).

Private Member Functions
double	evaluate (const JFunction_t &fit, T __begin, T __end) const
	Evaluate chi2 for given data set.

Private Attributes
JShower3EZ	p0
JShower3EZ	p1
JShower3EZ	wall

Detailed Description

Regressor function object for JShower3EZ fit using JSimplex minimiser.

Definition at line 92 of file JShower3EZRegressor.hh.

Member Typedef Documentation

JFunction1D_t

JTOOLS::JSplineFunction1S_t JFIT::JRegressor< JShower3EZ, JSimplex >::JFunction1D_t

Definition at line 97 of file JShower3EZRegressor.hh.

JPDFMaplist_t

JTOOLS::JMapList<JTOOLS::JPolint0FunctionalMap, JTOOLS::JMapList<JTOOLS::JPolint0FunctionalMap, JTOOLS::JMapList<JTOOLS::JPolint0FunctionalGridMap, JTOOLS::JMapList<JTOOLS::JPolint0FunctionalGridMap> > > > JFIT::JRegressor< JShower3EZ, JSimplex >::JPDFMaplist_t

Definition at line 101 of file JShower3EZRegressor.hh.

JPDF_t

JPHYSICS::JPDFTable<JFunction1D_t, JPDFMaplist_t> JFIT::JRegressor< JShower3EZ, JSimplex >::JPDF_t

Definition at line 102 of file JShower3EZRegressor.hh.

JNPEMaplist_t

JTOOLS::JMapList<JTOOLS::JPolint0FunctionalMap, JTOOLS::JMapList<JTOOLS::JPolint0FunctionalMap, JTOOLS::JMapList<JTOOLS::JPolint0FunctionalGridMap, JTOOLS::JMapList<JTOOLS::JPolint0FunctionalGridMap> > > > JFIT::JRegressor< JShower3EZ, JSimplex >::JNPEMaplist_t

Definition at line 107 of file JShower3EZRegressor.hh.

JNPE_t

JPHYSICS::JNPETable<double, double, JNPEMaplist_t> JFIT::JRegressor< JShower3EZ, JSimplex >::JNPE_t

Definition at line 108 of file JShower3EZRegressor.hh.

minimiser_type

JSimplex<JShower3EZ> JFIT::JAbstractRegressor< JShower3EZ, JSimplex >::minimiser_type

inherited

Definition at line 80 of file JRegressor.hh.

regressor_type

JRegressor<JShower3EZ, JSimplex> JFIT::JAbstractRegressor< JShower3EZ, JSimplex >::regressor_type

inherited

Definition at line 81 of file JRegressor.hh.

result_type

minimiser_type::result_type JFIT::JAbstractRegressor< JShower3EZ, JSimplex >::result_type

inherited

Definition at line 82 of file JRegressor.hh.

Constructor & Destructor Documentation

JRegressor()

JFIT::JRegressor< JShower3EZ, JSimplex >::JRegressor ( const std::string & fileDescriptor )

inline

Parameterized constructor.

The PDF file descriptor should contain the wild card character JPHYSICS::WILDCARD which will be replaced by the corresponding PDF types listed in JRegressor<JShower3Z, JGandalf>::pdf_t.

Parameters

fileDescriptor

PDF file descriptor

Definition at line 119 of file JShower3EZRegressor.hh.

                                               :
      estimator(new JMEstimatorNull())
    {
      using namespace std;
      using namespace JPP;

      const JPDF_t::JSupervisor supervisor(new JPDF_t::JDefaultResult(JMATH::zero));

      for (int i = 0; i != NUMBER_OF_PDFS; ++i) {

        try {

          JPDF_t pdf;

          const string file_name = getFilename(fileDescriptor, pdf_t[i]);

          NOTICE("loading PDF from file " << file_name << "... " << flush);

          pdf.load(file_name.c_str());

          NOTICE("OK" << endl);

          pdf.setExceptionHandler(supervisor);

          npe[ i ] = JNPE_t(pdf);
        }
        catch(const JException& error) {
          FATAL(error.what() << endl);
        }
      }

      // Add PDFs
      for (int i = 1; i < NUMBER_OF_PDFS; i += 2) {

        npe[ i ].add(npe[i-1]);

        JNPE_t buffer;

        npe[i-1].swap(buffer);
      }
    }

Member Function Documentation

operator()() [1/4]

double JFIT::JRegressor< JShower3EZ, JSimplex >::operator() ( const JShower3EZ & shower, const JPMTW0 & pmt ) const

inline

Fit function.

This method is used to determine the chi2 of given PMT with respect to shower hypothesis.

Parameters

shower	shower
pmt	pmt

Returns

chi2

Definition at line 169 of file JShower3EZRegressor.hh.

    {
      using namespace JPP;

      JPosition3D  D(pmt.getPosition());
      JDirection3D U(pmt.getDirection());

      D.sub(shower.getPosition());

      const double z  = D.getDot(shower.getDirection());
      const double x  = D.getX();
      const double y  = D.getY();
      const double cd = z/D.getLength();                   // cosine angle between shower direction and PMT position

      U.rotate(JRotation3Z(-atan2(y,x)));                  // rotate PMT axis to x-z plane

      const double theta = getPMTAngle(U.getTheta());
      const double phi   = getPMTAngle(U.getPhi());

      JNPE_t::result_type H0 = getH0(pmt.getR());  // background hypothesis value for time integrated PDF.
      JNPE_t::result_type H1 = getH1(D.getLength(), cd, theta, phi, shower.getE());  // signal hypothesis value for time integrated PDF.

      if (get_value(H1) >= Vmax_npe) {
        H1 *= Vmax_npe / get_value(H1);
      }

      H1 += H0; // now H1 is signal + background

      const bool hit = pmt.getN() != 0;
      const double u = getChi2(get_value(H1), hit) - getChi2(get_value(H0), hit); // - log likelihood ratio

      return estimator->getRho(u);
    }

getH0()

JNPE_t::result_type JFIT::JRegressor< JShower3EZ, JSimplex >::getH0 ( const double R_Hz ) const

inline

Get background hypothesis value for time integrated PDF.

Parameters

R_Hz

rate [Hz]

Returns

hypothesis value

Definition at line 209 of file JShower3EZRegressor.hh.

    {
      return JNPE_t::result_type(R_Hz * 1e-9 * T_ns.getLength());
    }

getH1()

JNPE_t::result_type JFIT::JRegressor< JShower3EZ, JSimplex >::getH1 ( const double D, const double cd, const double theta, const double phi, const double E ) const

inline

Get signal hypothesis value for time integrated PDF.

Parameters

D	PMT distance from shower [m]
cd	cosine angle between shower direction and PMT position
theta	PMT zenith angle [deg]
phi	PMT azimuth angle [deg]
E	shower energy [GeV]

Returns

hypothesis value

Definition at line 224 of file JShower3EZRegressor.hh.

    {
      JNPE_t::result_type h1 = JMATH::zero;

      for (int i = 0; i != NUMBER_OF_PDFS; ++i) {

        if (!npe[i].empty() && D <= npe[i].getXmax()) {

          try {

            JNPE_t::result_type y1 = E * npe[i](std::max(D, npe[i].getXmin()), cd, theta, phi);

            // safety measure

            if(y1 < 0){
              y1 = 0;
            }

            h1 += y1;

          }
          catch(JLANG::JException& error) {
            ERROR(error << std::endl);
          }
        }
      }

      return h1;
    }

operator()() [2/4]

result_type JFIT::JAbstractRegressor< JShower3EZ, JSimplex >::operator() ( const JShower3EZ & value, T __begin, T __end )

inlineinherited

Global fit.

Parameters

value	start value
__begin	begin of data set
__end	end of data set

Returns

chi2

Definition at line 94 of file JRegressor.hh.

    {
      static_cast<minimiser_type&>(*this).value = value;

      return static_cast<minimiser_type&>(*this)(static_cast<regressor_type&>(*this), __begin, __end);
    }

operator()() [3/4]

double JFIT::JSimplex< JShower3EZ >::operator() ( const JFunction_t & fit, T __begin, T __end )

inlineinherited

Multi-dimensional fit.

The given fit function should return the equivalent of chi2 for the current value of the given model and a given data point.

Parameters

fit	fit function
__begin	begin of data
__end	end of data

Returns

chi2

Definition at line 71 of file JSimplex.hh.

    {
      using namespace std;
      using namespace JPP;

      double chi2_old = evaluate(fit, __begin, __end);

      const int N = step.size();

      if (N != 0) {

        p0   = value;
        p1   = value;
        wall = value;

        double chi2[N];

        numberOfIterations = 0;

        while (numberOfIterations != MAXIMUM_ITERATIONS) {

          DEBUG("old: " << FIXED(12,5) << chi2_old << endl);

          p0 = value;

          for (int i = 0; i != N; ++i) {

            DEBUG("step: " << i << ' ' << setw(5) << numberOfIterations << endl);

            chi2[i] = (*this)(fit, __begin, __end, step[i]);
          }

          // overall step direction of last iteration

          wall  = value;
          wall -= p0;

          const double chi2_new = (*this)(fit, __begin, __end, wall);

          DEBUG("new: " << FIXED(12,5) << chi2_new << endl);


          if (fabs(chi2_old - chi2_new) < EPSILON*fabs(chi2_old)) {
            return chi2_new;
          }

          // double overall step

          wall   = value;
          wall  -= p0;
          value += wall;

          const double fe = evaluate(fit, __begin, __end);

          value -= wall;


          for (int i = N-1; i != 0; --i) {
            chi2[i] = chi2[i-1] - chi2[i];
          }

          chi2[0] = chi2_old - chi2[0];


          double df = 0.0;

          for (int i = 0; i != N; ++i) {
            if (chi2[i] > df) {
              df = chi2[i];
            }
          }

          const double fn = chi2_new;
          const double f0 = chi2_old;
          const double ff = f0 - fn - df;

          // shift step directions

          if (fe < f0 && 2.0*(f0 - 2.0*fn + fe)*ff*ff < (f0-fe)*(f0-fe)*df) {

            for (int i = 0; i != N - 1; ++i) {
              step[i] = step[i+1];
            }

            step[N-1] = wall;
          }

          chi2_old = chi2_new;
        }
      }

      return chi2_old;
    }

operator()() [4/4]

double JFIT::JSimplex< JShower3EZ >::operator() ( const JFunction_t & fit, T __begin, T __end, const JShower3EZ & step )

inlineinherited

1D fit.

The given fit function should return the equivalent of chi2 for the current value of the given model and a given data point.

Parameters

fit	fit function
__begin	begin of data
__end	end of data
step	step direction

Definition at line 178 of file JSimplex.hh.

    {
      using namespace std;
      using namespace JPP;

      double lambda = 0.5;                                     // control parameter
      double factor = 1.0;                                     // multiplication factor

      double chi2_old = evaluate(fit, __begin, __end);

      for (int i = 0; numberOfIterations != MAXIMUM_ITERATIONS; ++numberOfIterations, ++i) {

        p1      = step;
        p1     *= lambda;
        value  += p1;

        const double chi2_new = evaluate(fit, __begin, __end);

        DEBUG("step: " << setw(3) << i << ' ' << FIXED(12,5) << chi2_old << ' ' << FIXED(12,5) << chi2_new << ' ' << FIXED(5,2) << lambda << endl);

        if (fabs(chi2_old - chi2_new) < EPSILON*fabs(chi2_old)) {

          if (chi2_new > chi2_old) {

            p1      = step;
            p1     *= lambda;
            value  -= p1;                                      // undo last step

            return chi2_old;

          } else {

            return chi2_new;
          }
        }

        if (chi2_new < chi2_old) {

          chi2_old = chi2_new;

        } else {

          p1      = step;
          p1     *= lambda;
          value  -=  p1;                                       // step back
          lambda  = -lambda;                                   // change direction

          if (i != 0) {
            factor = 0.5;                                      // reduce step size
          }
        }

        lambda = factor * lambda;
      }

      return chi2_old;
    }

evaluate()

double JFIT::JSimplex< JShower3EZ >::evaluate ( const JFunction_t & fit, T __begin, T __end ) const

inlineprivateinherited

Evaluate chi2 for given data set.

Parameters

fit	fit function
__begin	begin of data
__end	end of data

Definition at line 253 of file JSimplex.hh.

    {
      double chi2 = 0.0;

      for (T hit = __begin; hit != __end; ++hit) {
        chi2 += fit(value, *hit);
      }

      return chi2;
    }

Member Data Documentation

T_ns

JTimeRange JFIT::JRegressor< JShower3EZ, JSimplex >::T_ns

static

Time window with respect to Cherenkov hypothesis [ns].

Definition at line 259 of file JShower3EZRegressor.hh.

Vmax_npe

double JFIT::JRegressor< JShower3EZ, JSimplex >::Vmax_npe = std::numeric_limits<double>::max()

static

Maximal integral of PDF [npe].

Definition at line 260 of file JShower3EZRegressor.hh.

NUMBER_OF_PDFS

const int JFIT::JRegressor< JShower3EZ, JSimplex >::NUMBER_OF_PDFS = 2

static

Definition at line 262 of file JShower3EZRegressor.hh.

pdf_t

const JPDFType_t JFIT::JRegressor< JShower3EZ, JSimplex >::pdf_t[NUMBER_OF_PDFS]

static

Definition at line 264 of file JShower3EZRegressor.hh.

npe

JNPE_t JFIT::JRegressor< JShower3EZ, JSimplex >::npe[NUMBER_OF_PDFS]

PDF.

Definition at line 266 of file JShower3EZRegressor.hh.

estimator

JLANG::JSharedPointer<JMEstimator> JFIT::JRegressor< JShower3EZ, JSimplex >::estimator

M-Estimator function.

Definition at line 268 of file JShower3EZRegressor.hh.

MAXIMUM_ITERATIONS

int JFIT::JSimplex< JShower3EZ >::MAXIMUM_ITERATIONS

staticinherited

maximal number of iterations

maximal number of iterations.

Definition at line 237 of file JSimplex.hh.

EPSILON

double JFIT::JSimplex< JShower3EZ >::EPSILON

staticinherited

maximal distance to minimum

maximal distance to minimum.

Definition at line 238 of file JSimplex.hh.

value

JShower3EZ JFIT::JSimplex< JShower3EZ >::value

inherited

Definition at line 240 of file JSimplex.hh.

step

std::vector<JShower3EZ> JFIT::JSimplex< JShower3EZ >::step

inherited

Definition at line 241 of file JSimplex.hh.

numberOfIterations

int JFIT::JSimplex< JShower3EZ >::numberOfIterations

inherited

Definition at line 242 of file JSimplex.hh.

p0

JShower3EZ JFIT::JSimplex< JShower3EZ >::p0

mutableprivateinherited

Definition at line 264 of file JSimplex.hh.

p1

JShower3EZ JFIT::JSimplex< JShower3EZ >::p1

mutableprivateinherited

Definition at line 265 of file JSimplex.hh.

wall

JShower3EZ JFIT::JSimplex< JShower3EZ >::wall

mutableprivateinherited

Definition at line 266 of file JSimplex.hh.

debug

template<class T >

int JEEP::JMessage< T >::debug = 0

staticinherited

debug level (default is off).

Definition at line 45 of file JMessage.hh.

---

The documentation for this struct was generated from the following file:

• JShower3EZRegressor.hh
