JTRIGGER::JHitL0 Class Reference

Data structure for L0 hit. More...

#include <JHitL0.hh>

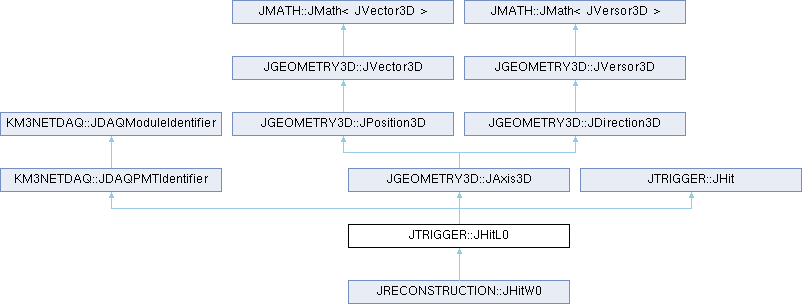

Inheritance diagram for JTRIGGER::JHitL0:

Classes
struct	compare
	Auxiliary data structure for sorting of hits. More...

Public Member Functions
	JHitL0 ()
	Default constructor.
	JHitL0 (const JDAQPMTIdentifier &pmt, const JAxis3D &axis, const JHit &hit)
	Constructor.
int	getN () const
	Get count.
double	getW () const
	Get weight.
const JDAQPMTIdentifier &	getPMTIdentifier () const
	Get PMT identifier.
void	setPMTIdentifier (const JDAQPMTIdentifier &pmt)
	Set PMT identifier.
int	getPMTAddress () const
	Get PMT identifier.
	ClassDefNV (JDAQPMTIdentifier, 1)
	ClassDefNV (JDAQModuleIdentifier, 1)
const JDAQModuleIdentifier &	getModuleIdentifier () const
	Get Module identifier.
void	setModuleIdentifier (const JDAQModuleIdentifier &module)
	Set Module identifier.
int	getModuleID () const
	Get module identifier.
const JAxis3D &	getAxis () const
	Get axis.
void	setAxis (const JAxis3D &axis)
	Set axis.
JAxis3D &	negate ()
	Negate axis.
void	move (const double step)
	Move vertex along this axis.
double	getIntersection (const JVector3D &pos) const
	Get longitudinal position along axis of position of closest approach with given position.
double	getIntersection (const JAxis3D &axis, const double precision=1.0e-8) const
	Get longitudinal position along axis of position of closest approach with given axis.
double	getDistanceSquared (const JVector3D &pos) const
	Get distance squared.
double	getDistance (const JVector3D &pos) const
	Get distance.
JAxis3D &	rotate (const JRotation3D &R)
	Rotate axis.
JAxis3D &	rotate (const JRotation3X &R)
	Rotate around X-axis.
JAxis3D &	rotate (const JRotation3Y &R)
	Rotate around Y-axis.
JAxis3D &	rotate (const JRotation3Z &R)
	Rotate around Z-axis.
JAxis3D &	rotate (const JQuaternion3D &Q)
	Rotate axis.
JAxis3D &	rotate_back (const JRotation3D &R)
	Rotate back axis.
JAxis3D &	rotate_back (const JRotation3X &R)
	Rotate back around X-axis.
JAxis3D &	rotate_back (const JRotation3Y &R)
	Rotate back around Y-axis.
JAxis3D &	rotate_back (const JRotation3Z &R)
	Rotate back around Z-axis.
JPosition3D &	rotate_back (const JQuaternion3D &Q)
	Rotate back.
JDirection3D &	rotate_back (const JQuaternion3D &Q)
	Rotate back.
void	transform (const JAxis3D &axis)
	Transform axis to reference frame of given axis.
void	transform (const JRotation3D &R, const JVector3D &pos)
	Transform axis.
void	transform (const JTransformation3D &T)
	Transform axis.
JVector3D &	transform (const JMatrix3D &T)
	Transform.
JDirection3D &	transform (const JMatrix3D &T)
	Transform.
void	transform_back (const JRotation3D &R, const JVector3D &pos)
	Transform back axis.
void	transform_back (const JTransformation3D &T)
	Transform back axis.
double	getDot (const JAngle3D &angle) const
	Get dot product.
double	getDot (const JVector3D &pos) const
	Get dot product.
double	getDot (const JVersor3Z &dir) const
	Get dot product.
double	getDot (const JVersor3D &dir) const
	Get dot product.
double	getDot (const JVersor3D &versor) const
	Get dot product.
const JPosition3D &	getPosition () const
	Get position.
JPosition3D &	getPosition ()
	Get position.
void	setPosition (const JVector3D &pos)
	Set position.
	operator JAngle3D () const
	Type conversion operator.
	operator JAngle3D () const
	Type conversion operator.
	operator JVersor3D () const
	Type conversion operator.
	operator JVector2D () const
	Type conversion operator.
double	getX () const
	Get x position.
double	getY () const
	Get y position.
double	getZ () const
	Get z position.
JVector3D &	add (const JVector3D &vector)
	Add vector.
JVector3D &	sub (const JVector3D &vector)
	Subtract vector.
JVector3D &	mul (const double factor)
	Scale vector.
JFirst_t &	mul (const JSecond_t &object)
	Multiply with object.
JFirst_t &	mul (const JSecond_t &object)
	Multiply with object.
JVector3D &	div (const double factor)
	Scale vector.
bool	equals (const JVector3D &vector, const double precision=std::numeric_limits< double >::min()) const
	Check equality.
bool	equals (const JVersor3D &versor, const double precision=std::numeric_limits< double >::min()) const
	Check equality.
double	getLengthSquared () const
	Get length squared.
double	getLength () const
	Get length.
JVector3D &	getCross (const JVector3D &first, const JVector3D &second)
	Get cross product.
JVersor3D &	getCross (const JVersor3D &first, const JVersor3D &second)
	Get cross product.
const JDirection3D &	getDirection () const
	Get direction.
JDirection3D &	getDirection ()
	Get direction.
void	setDirection (const JDirection3D &dir)
	Set direction.
	operator JVector3D () const
	Type conversion operator.
double	getDX () const
	Get x direction.
double	getDY () const
	Get y direction.
double	getDZ () const
	Get z direction.
double	getTheta () const
	Get theta angle.
double	getPhi () const
	Get phi angle.
JVersor3D &	normalise ()
	Normalise versor.
const JHit &	getHit () const
	Get hit.
	operator double () const
	Type conversion.
double	getT () const
	Get calibrated time of hit.
double	getToT () const
	Get calibrated time over threshold of hit.
double	getT1 () const
	Get leading edge of hit.
double	getT2 () const
	Get trailing edge of hit.
void	join (const JHit &hit)
	Join hit.

Static Public Member Functions
static bool	compare (const JDAQPMTIdentifier &first, const JDAQPMTIdentifier &second)
	Compare PMT identifiers.
static bool	getSlewing ()
	Get slewing option.
static void	setSlewing (const bool slewing)
	Set slewing option.

Static Public Attributes
static const struct JTRIGGER::JHitL0::compare	compare

Static Protected Member Functions
static bool &	get_slewing ()
	Get reference to slewing parameter.

Protected Attributes
int	address
int	id
double	__x
double	__y
double	__z
double	__dx
double	__dy
double	__dz
double	t
	time of leading edge [ns]
double	tot
	time-over-threshold [ns]

Detailed Description

Data structure for L0 hit.

Definition at line 27 of file JHitL0.hh.

Constructor & Destructor Documentation

JHitL0() [1/2]

JTRIGGER::JHitL0::JHitL0 ( )

inline

Default constructor.

Definition at line 36 of file JHitL0.hh.

             :
      JDAQPMTIdentifier(),
      JAxis3D          (),
      JHit             ()
    {}

JHitL0() [2/2]

JTRIGGER::JHitL0::JHitL0 ( const JDAQPMTIdentifier & pmt, const JAxis3D & axis, const JHit & hit )

inline

Constructor.

Parameters

pmt	PMT identifier
axis	PMT axis
hit	hit

Definition at line 50 of file JHitL0.hh.

                                         :
      JDAQPMTIdentifier(pmt),
      JAxis3D          (axis),
      JHit             (hit)
    {}

Member Function Documentation

getN()

int JTRIGGER::JHitL0::getN ( ) const

inline

Get count.

Returns

count

Definition at line 64 of file JHitL0.hh.

    {
      return 1;
    }

getW()

double JTRIGGER::JHitL0::getW ( ) const

inline

Get weight.

The returned weight is set to one.

Returns

1

Definition at line 76 of file JHitL0.hh.

    {
      return 1.0;
    }

getPMTIdentifier()

const JDAQPMTIdentifier & KM3NETDAQ::JDAQPMTIdentifier::getPMTIdentifier ( ) const

inlineinherited

Get PMT identifier.

Returns

PMT identifier

Definition at line 56 of file JDAQPMTIdentifier.hh.

    {
      return *this;
    }

setPMTIdentifier()

void KM3NETDAQ::JDAQPMTIdentifier::setPMTIdentifier ( const JDAQPMTIdentifier & pmt )

inlineinherited

Set PMT identifier.

Parameters

pmt	PMT identifier

Definition at line 67 of file JDAQPMTIdentifier.hh.

    {
      *this = pmt;
    }

getPMTAddress()

int KM3NETDAQ::JDAQPMTIdentifier::getPMTAddress ( ) const

inlineinherited

Get PMT identifier.

Returns

PMT identifier

Definition at line 78 of file JDAQPMTIdentifier.hh.

    {
      return address;
    }

compare()

static bool KM3NETDAQ::JDAQPMTIdentifier::compare ( const JDAQPMTIdentifier & first, const JDAQPMTIdentifier & second )

inlinestaticinherited

Compare PMT identifiers.

The comparison is applied to the module identifer and to the PMT address. If the module identifier or PMT address is -1, the corresponding comparison evaluates to true.

Parameters

first	PMT identifier
second	PMT identifier

Returns

true if first PMT equal second PMT; else false

Definition at line 126 of file JDAQPMTIdentifier.hh.

    {
      return ((first .getModuleIdentifier() == second.getModuleIdentifier() ||
               first .getModuleIdentifier() == -1                           ||
               second.getModuleIdentifier() == -1)                          &&
              (first .getPMTAddress()       == second.getPMTAddress()       ||
               first .getPMTAddress()       == -1                           ||
               second.getPMTAddress()       == -1));
    }

ClassDefNV() [1/2]

KM3NETDAQ::JDAQPMTIdentifier::ClassDefNV ( JDAQPMTIdentifier , 1  )

inherited

ClassDefNV() [2/2]

KM3NETDAQ::JDAQModuleIdentifier::ClassDefNV ( JDAQModuleIdentifier , 1  )

inherited

getModuleIdentifier()

const JDAQModuleIdentifier & KM3NETDAQ::JDAQModuleIdentifier::getModuleIdentifier ( ) const

inlineinherited

Get Module identifier.

Returns

Module identifier

Definition at line 50 of file JDAQModuleIdentifier.hh.

    {
      return *this;
    }

setModuleIdentifier()

void KM3NETDAQ::JDAQModuleIdentifier::setModuleIdentifier ( const JDAQModuleIdentifier & module )

inlineinherited

Set Module identifier.

Parameters

module

Module identifier

Definition at line 61 of file JDAQModuleIdentifier.hh.

    {
      *this = module;
    }

getModuleID()

int KM3NETDAQ::JDAQModuleIdentifier::getModuleID ( ) const

inlineinherited

Get module identifier.

Returns

module identifier

Definition at line 72 of file JDAQModuleIdentifier.hh.

    {
      return id;
    }

getAxis()

const JAxis3D & JGEOMETRY3D::JAxis3D::getAxis ( ) const

inlineinherited

Get axis.

Returns

axis

Definition at line 98 of file JAxis3D.hh.

    {
      return *this;
    }

setAxis()

void JGEOMETRY3D::JAxis3D::setAxis ( const JAxis3D & axis )

inlineinherited

Set axis.

Parameters

axis

axis

Definition at line 109 of file JAxis3D.hh.

    {
      *this = axis;
    }

negate()

JAxis3D & JGEOMETRY3D::JAxis3D::negate ( )

inlineinherited

Negate axis.

Returns

this axis

Definition at line 120 of file JAxis3D.hh.

    {
      static_cast<JPosition3D&> (*this).negate();
      static_cast<JDirection3D&>(*this).negate();

      return *this;
    }

move()

void JGEOMETRY3D::JAxis3D::move ( const double step )

inlineinherited

Move vertex along this axis.

Parameters

step

step

Definition at line 134 of file JAxis3D.hh.

    {
      getPosition() += step * JPosition3D(getDirection());
    }

getIntersection() [1/2]

double JGEOMETRY3D::JAxis3D::getIntersection ( const JVector3D & pos ) const

inlineinherited

Get longitudinal position along axis of position of closest approach with given position.

Parameters

pos

position

Returns

longitudinal position

Definition at line 146 of file JAxis3D.hh.

    {
      JPosition3D D(pos);

      D.sub(this->getPosition());

      return D.getDot(this->getDirection());
    }

getIntersection() [2/2]

double JGEOMETRY3D::JAxis3D::getIntersection ( const JAxis3D & axis, const double precision = 1.0e-8 ) const

inlineinherited

Get longitudinal position along axis of position of closest approach with given axis.

If the axes are paralel, this position corresponds to the vertex of the given axis.

Parameters

axis	axis
precision	precision

Returns

longitudinal position

Definition at line 164 of file JAxis3D.hh.

    {
      JPosition3D  pos(getPosition ());
      JDirection3D dir(getDirection());

      const JRotation3D R(axis.getDirection());

      // offset this position with position of given axis

      pos.sub(axis.getPosition());

      // rotate along given axis

      pos.rotate(R);
      dir.rotate(R);

      // longitudinal position at minimal distance of approach

      const double alpha = pos.getX()  * dir.getDX()  +  pos.getY()  * dir.getDY();
      const double beta  = dir.getDX() * dir.getDX()  +  dir.getDY() * dir.getDY();

      return (fabs(beta) > precision ? -alpha/beta : -pos.getZ());
    }

getDistanceSquared()

double JGEOMETRY3D::JAxis3D::getDistanceSquared ( const JVector3D & pos ) const

inlineinherited

Get distance squared.

Parameters

pos

position

Returns

square of distance

Definition at line 195 of file JAxis3D.hh.

    {
      JPosition3D D(pos);

      D.sub(this->getPosition());

      const double dz = D.getDot(this->getDirection());

      return D.getLengthSquared() - dz*dz;
    }

getDistance()

double JGEOMETRY3D::JAxis3D::getDistance ( const JVector3D & pos ) const

inlineinherited

Get distance.

Parameters

pos

osition

Returns

distance

Definition at line 213 of file JAxis3D.hh.

    {
      return sqrt(this->getDistanceSquared(pos));
    }

rotate() [1/5]

JAxis3D & JGEOMETRY3D::JAxis3D::rotate ( const JRotation3D & R )

inlineinherited

Rotate axis.

Parameters

R	rotation matrix

Returns

this axis

Definition at line 225 of file JAxis3D.hh.

    {
      static_cast<JPosition3D&> (*this).rotate(R);
      static_cast<JDirection3D&>(*this).rotate(R);

      return *this;
    }

rotate() [2/5]

JAxis3D & JGEOMETRY3D::JAxis3D::rotate ( const JRotation3X & R )

inlineinherited

Rotate around X-axis.

Parameters

R	rotation matrix

Returns

this axis

Definition at line 255 of file JAxis3D.hh.

    {
      static_cast<JPosition3D&> (*this).rotate(R);
      static_cast<JDirection3D&>(*this).rotate(R);

      return *this;
    }

rotate() [3/5]

JAxis3D & JGEOMETRY3D::JAxis3D::rotate ( const JRotation3Y & R )

inlineinherited

Rotate around Y-axis.

Parameters

R	rotation matrix

Returns

this axis

Definition at line 285 of file JAxis3D.hh.

    {
      static_cast<JPosition3D&> (*this).rotate(R);
      static_cast<JDirection3D&>(*this).rotate(R);

      return *this;
    }

rotate() [4/5]

JAxis3D & JGEOMETRY3D::JAxis3D::rotate ( const JRotation3Z & R )

inlineinherited

Rotate around Z-axis.

Parameters

R	rotation matrix

Returns

this axis

Definition at line 315 of file JAxis3D.hh.

    {
      static_cast<JPosition3D&> (*this).rotate(R);
      static_cast<JDirection3D&>(*this).rotate(R);

      return *this;
    }

rotate() [5/5]

JAxis3D & JGEOMETRY3D::JAxis3D::rotate ( const JQuaternion3D & Q )

inlineinherited

Rotate axis.

Parameters

Q	quaternion

Returns

this axis

Definition at line 345 of file JAxis3D.hh.

    {
      static_cast<JPosition3D&> (*this).rotate(Q);
      static_cast<JDirection3D&>(*this).rotate(Q);

      return *this;
    }

rotate_back() [1/6]

JAxis3D & JGEOMETRY3D::JAxis3D::rotate_back ( const JRotation3D & R )

inlineinherited

Rotate back axis.

Parameters

R	rotation matrix

Returns

this axis

Definition at line 240 of file JAxis3D.hh.

    {
      static_cast<JPosition3D&> (*this).rotate_back(R);
      static_cast<JDirection3D&>(*this).rotate_back(R);

      return *this;
    }

rotate_back() [2/6]

JAxis3D & JGEOMETRY3D::JAxis3D::rotate_back ( const JRotation3X & R )

inlineinherited

Rotate back around X-axis.

Parameters

R	rotation matrix

Returns

this axis

Definition at line 270 of file JAxis3D.hh.

    {
      static_cast<JPosition3D&> (*this).rotate_back(R);
      static_cast<JDirection3D&>(*this).rotate_back(R);

      return *this;
    }

rotate_back() [3/6]

JAxis3D & JGEOMETRY3D::JAxis3D::rotate_back ( const JRotation3Y & R )

inlineinherited

Rotate back around Y-axis.

Parameters

R	rotation matrix

Returns

this axis

Definition at line 300 of file JAxis3D.hh.

    {
      static_cast<JPosition3D&> (*this).rotate_back(R);
      static_cast<JDirection3D&>(*this).rotate_back(R);

      return *this;
    }

rotate_back() [4/6]

JAxis3D & JGEOMETRY3D::JAxis3D::rotate_back ( const JRotation3Z & R )

inlineinherited

Rotate back around Z-axis.

Parameters

R	rotation matrix

Returns

his axis

Definition at line 330 of file JAxis3D.hh.

    {
      static_cast<JPosition3D&> (*this).rotate_back(R);
      static_cast<JDirection3D&>(*this).rotate_back(R);

      return *this;
    }

rotate_back() [5/6]

JPosition3D & JGEOMETRY3D::JPosition3D::rotate_back ( const JQuaternion3D & Q )

inlineinherited

Rotate back.

Parameters

Q	quaternion

Returns

this position

Definition at line 312 of file JPosition3D.hh.

    {
      Q.rotate_back(__x, __y, __z);

      return *this;
    }

rotate_back() [6/6]

JDirection3D & JGEOMETRY3D::JDirection3D::rotate_back ( const JQuaternion3D & Q )

inlineinherited

Rotate back.

Parameters

Q	quaternion

Returns

this position

Definition at line 321 of file JDirection3D.hh.

    {
      Q.rotate_back(__dx, __dy, __dz);

      return *this;
    }

transform() [1/5]

void JGEOMETRY3D::JAxis3D::transform ( const JAxis3D & axis )

inlineinherited

Transform axis to reference frame of given axis.

Parameters

axis

axis

Definition at line 359 of file JAxis3D.hh.

    {
      JRotation3D R  (axis.getDirection());
      JPosition3D pos(axis.getPosition ());

      transform(R, pos.rotate(R));
    }

transform() [2/5]

void JGEOMETRY3D::JAxis3D::transform ( const JRotation3D & R, const JVector3D & pos )

inlineinherited

Transform axis.

The final position and direction are obtained as follows:

1. rotation of the position and the direction according rotation matrix (R);
2. offset position with position of origin in rotated system (pos);
3. rotation of position and direction around z-axis, such that final position is in x-z plane;

Parameters

R	rotation matrix
pos	position of origin

Definition at line 379 of file JAxis3D.hh.

    {
      JPosition3D&  u = getPosition ();
      JDirection3D& v = getDirection();

      // rotate axis to system such that direction is along z-axis

      u.rotate(R);
      v.rotate(R);

      // offset with respect to origin

      u.sub(pos);

      // rotate axis to x-z plane such that position is in x-z plane

      const double phi = atan2(u.getY(), u.getX());

      const JRotation3Z r(-phi);

      u.rotate(r);
      v.rotate(r);
    }

transform() [3/5]

void JGEOMETRY3D::JAxis3D::transform ( const JTransformation3D & T )

inlineinherited

Transform axis.

Parameters

T	transformation

Definition at line 437 of file JAxis3D.hh.

    {
      transform(T.getRotation(), T.getPosition());
    }

transform() [4/5]

JVector3D & JGEOMETRY3D::JVector3D::transform ( const JMatrix3D & T )

inlineinherited

Transform.

Parameters

T

matrix

Returns

this vector

Definition at line 206 of file JVector3D.hh.

    {
      T.transform(__x, __y, __z);

      return *this;
    }

transform() [5/5]

JDirection3D & JGEOMETRY3D::JDirection3D::transform ( const JMatrix3D & T )

inlineinherited

Transform.

Parameters

T

matrix

Returns

this direction

Definition at line 163 of file JDirection3D.hh.

    {
      T.transform(__dx, __dy, __dz);

      normalise();

      return *this;
    }

transform_back() [1/2]

void JGEOMETRY3D::JAxis3D::transform_back ( const JRotation3D & R, const JVector3D & pos )

inlineinherited

Transform back axis.

The final position and direction are obtained as follows:

1. offset position with position pos;
2. rotation of position and direction according matrix R;

Parameters

R	rotation matrix
pos	position of origin (before rotation)

Definition at line 415 of file JAxis3D.hh.

    {
      JPosition3D&  u = getPosition ();
      JDirection3D& v = getDirection();

      // offset with respect to origin

      u.add(pos);

      // rotate back axis to system with original particle direction

      u.rotate_back(R);
      v.rotate_back(R);
    }

transform_back() [2/2]

void JGEOMETRY3D::JAxis3D::transform_back ( const JTransformation3D & T )

inlineinherited

Transform back axis.

Parameters

T	transformation

Definition at line 448 of file JAxis3D.hh.

    {
      transform_back(T.getRotation(), T.getPosition());
    }

getDot() [1/5]

double JGEOMETRY3D::JDirection3D::getDot ( const JAngle3D & angle ) const

inlineinherited

Get dot product.

Parameters

angle

angle

Returns

dot product

Definition at line 335 of file JDirection3D.hh.

    {
      return
        getDX() * angle.getDX() +
        getDY() * angle.getDY() +
        getDZ() * angle.getDZ();
    }

getDot() [2/5]

double JGEOMETRY3D::JDirection3D::getDot ( const JVector3D & pos ) const

inlineinherited

Get dot product.

Parameters

pos

position

Returns

dot product

Definition at line 350 of file JDirection3D.hh.

    {
      return
        getDX() * pos.getX() +
        getDY() * pos.getY() +
        getDZ() * pos.getZ();
    }

getDot() [3/5]

double JGEOMETRY3D::JDirection3D::getDot ( const JVersor3Z & dir ) const

inlineinherited

Get dot product.

Parameters

dir

direction

Returns

dot product

Definition at line 365 of file JDirection3D.hh.

    {
      return
        getDX() * dir.getDX() +
        getDY() * dir.getDY() +
        getDZ() * dir.getDZ();
    }

getDot() [4/5]

double JGEOMETRY3D::JPosition3D::getDot ( const JVersor3D & dir ) const

inlineinherited

Get dot product.

Parameters

dir

direction

Returns

dot product

Definition at line 393 of file JPosition3D.hh.

    {
      return
        getX() * dir.getDX() +
        getY() * dir.getDY() +
        getZ() * dir.getDZ();
    }

getDot() [5/5]

double JGEOMETRY3D::JVersor3D::getDot ( const JVersor3D & versor ) const

inlineinherited

Get dot product.

Parameters

versor

versor

Returns

dot product

Definition at line 156 of file JVersor3D.hh.

    {
      return
        getDX() * versor.getDX() +
        getDY() * versor.getDY() +
        getDZ() * versor.getDZ();
    }

getPosition() [1/2]

const JPosition3D & JGEOMETRY3D::JPosition3D::getPosition ( ) const

inlineinherited

Get position.

Returns

position

Definition at line 130 of file JPosition3D.hh.

    {
      return static_cast<const JPosition3D&>(*this);
    }

getPosition() [2/2]

JPosition3D & JGEOMETRY3D::JPosition3D::getPosition ( )

inlineinherited

Get position.

Returns

position

Definition at line 141 of file JPosition3D.hh.

    {
      return static_cast<JPosition3D&>(*this);
    }

setPosition()

void JGEOMETRY3D::JPosition3D::setPosition ( const JVector3D & pos )

inlineinherited

Set position.

Parameters

pos

position

Definition at line 152 of file JPosition3D.hh.

    {
      static_cast<JVector3D&>(*this) = pos;
    }

operator JAngle3D() [1/2]

JGEOMETRY3D::JPosition3D::operator JAngle3D ( ) const

inlineinherited

Type conversion operator.

Returns

angle

Definition at line 163 of file JPosition3D.hh.

    {
      return JAngle3D(getX(), getY(), getZ());
    }

operator JAngle3D() [2/2]

JGEOMETRY3D::JDirection3D::operator JAngle3D ( ) const

inlineinherited

Type conversion operator.

Returns

angle

Definition at line 140 of file JDirection3D.hh.

    {
      return JAngle3D(getDX(), getDY(), getDZ());
    }

operator JVersor3D()

JGEOMETRY3D::JPosition3D::operator JVersor3D ( ) const

inlineinherited

Type conversion operator.

Returns

direction

Definition at line 174 of file JPosition3D.hh.

    {
      return JVersor3D(getX(), getY(), getZ());
    }

operator JVector2D()

JGEOMETRY3D::JVector3D::operator JVector2D ( ) const

inlineinherited

Type conversion operator.

Returns

JVector2D

Definition at line 83 of file JVector3D.hh.

    {
      return JVector2D(this->getX(), this->getY());
    }

getX()

double JGEOMETRY3D::JVector3D::getX ( ) const

inlineinherited

Get x position.

Returns

x position

Definition at line 94 of file JVector3D.hh.

    {
      return __x;
    }

getY()

double JGEOMETRY3D::JVector3D::getY ( ) const

inlineinherited

Get y position.

Returns

y position

Definition at line 104 of file JVector3D.hh.

    {
      return __y;
    }

getZ()

double JGEOMETRY3D::JVector3D::getZ ( ) const

inlineinherited

Get z position.

Returns

z position

Definition at line 115 of file JVector3D.hh.

    {
      return __z;
    }

add()

JVector3D & JGEOMETRY3D::JVector3D::add ( const JVector3D & vector )

inlineinherited

Add vector.

Parameters

vector

vector

Returns

this vector

Definition at line 142 of file JVector3D.hh.

    {
      __x += vector.getX();
      __y += vector.getY();
      __z += vector.getZ();

      return *this;
    }

sub()

JVector3D & JGEOMETRY3D::JVector3D::sub ( const JVector3D & vector )

inlineinherited

Subtract vector.

Parameters

vector

vector

Returns

this vector

Definition at line 158 of file JVector3D.hh.

    {
      __x -= vector.getX();
      __y -= vector.getY();
      __z -= vector.getZ();

      return *this;
    }

mul() [1/3]

JVector3D & JGEOMETRY3D::JVector3D::mul ( const double factor )

inlineinherited

Scale vector.

Parameters

factor

multiplication factor

Returns

this vector

Definition at line 174 of file JVector3D.hh.

    {
      __x *= factor;
      __y *= factor;
      __z *= factor;

      return *this;
    }

mul() [2/3]

template<class JFirst_t , class JSecond_t >

JFirst_t & JMATH::JMath< JFirst_t, JSecond_t >::mul ( const JSecond_t & object )

inlineinherited

Multiply with object.

Parameters

object

object

Returns

result object

Definition at line 354 of file JMath.hh.

    {
      return static_cast<JFirst_t&>(*this) = JFirst_t().mul(static_cast<const JFirst_t&>(*this), object);
    }

mul() [3/3]

template<class JFirst_t , class JSecond_t >

JFirst_t & JMATH::JMath< JFirst_t, JSecond_t >::mul ( const JSecond_t & object )

inlineinherited

Multiply with object.

Parameters

object

object

Returns

result object

Definition at line 354 of file JMath.hh.

    {
      return static_cast<JFirst_t&>(*this) = JFirst_t().mul(static_cast<const JFirst_t&>(*this), object);
    }

div()

JVector3D & JGEOMETRY3D::JVector3D::div ( const double factor )

inlineinherited

Scale vector.

Parameters

factor

division factor

Returns

this vector

Definition at line 190 of file JVector3D.hh.

    {
      __x /= factor;
      __y /= factor;
      __z /= factor;

      return *this;
    }

equals() [1/2]

bool JGEOMETRY3D::JVector3D::equals ( const JVector3D & vector, const double precision = std::numeric_limits<double>::min() ) const

inlineinherited

Check equality.

Parameters

vector	vector
precision	precision

Returns

true if vectors are equal; else false

Definition at line 221 of file JVector3D.hh.

    {
      return (fabs(getX() - vector.getX()) <= precision &&
              fabs(getY() - vector.getY()) <= precision &&
              fabs(getZ() - vector.getZ()) <= precision);
    }

equals() [2/2]

bool JGEOMETRY3D::JVersor3D::equals ( const JVersor3D & versor, const double precision = std::numeric_limits<double>::min() ) const

inlineinherited

Check equality.

Parameters

versor	versor
precision	precision

Returns

true if versors are equal; else false

Definition at line 81 of file JVersor3D.hh.

    {
      return (fabs(getDX() - versor.getDX()) <= precision &&
              fabs(getDY() - versor.getDY()) <= precision &&
              fabs(getDZ() - versor.getDZ()) <= precision);
    }

getLengthSquared()

double JGEOMETRY3D::JVector3D::getLengthSquared ( ) const

inlineinherited

Get length squared.

Returns

square of length

Definition at line 235 of file JVector3D.hh.

    {
      return getX()*getX() + getY()*getY() + getZ()*getZ();
    }

getLength()

double JGEOMETRY3D::JVector3D::getLength ( ) const

inlineinherited

Get length.

Returns

length

Definition at line 246 of file JVector3D.hh.

    {
      return sqrt(getLengthSquared());
    }

getCross() [1/2]

JVector3D & JGEOMETRY3D::JVector3D::getCross ( const JVector3D & first, const JVector3D & second )

inlineinherited

Get cross product.

Note that this vector should not overlap with the first or second vector,

Parameters

first	first vector
second	second vector

Returns

this vector

Definition at line 299 of file JVector3D.hh.

    {
      __x = first .getY() * second.getZ()  -  second.getY() * first .getZ();
      __y = second.getX() * first .getZ()  -  first .getX() * second.getZ();
      __z = first .getX() * second.getY()  -  second.getX() * first .getY();

      return *this;
    }

getCross() [2/2]

JVersor3D & JGEOMETRY3D::JVersor3D::getCross ( const JVersor3D & first, const JVersor3D & second )

inlineinherited

Get cross product.

Note that this versor should not overlap with the first or second versor,

Parameters

first	first versor
second	second versor

Returns

this versor

Definition at line 173 of file JVersor3D.hh.

    {
      __dx = first .getDY() * second.getDZ()  -  second.getDY() * first .getDZ();
      __dy = second.getDX() * first .getDZ()  -  first .getDX() * second.getDZ();
      __dz = first .getDX() * second.getDY()  -  second.getDX() * first .getDY();

      normalise();

      return *this;
    }

getDirection() [1/2]

const JDirection3D & JGEOMETRY3D::JDirection3D::getDirection ( ) const

inlineinherited

Get direction.

Returns

direction

Definition at line 107 of file JDirection3D.hh.

    {
      return static_cast<const JDirection3D&>(*this);
    }

getDirection() [2/2]

JDirection3D & JGEOMETRY3D::JDirection3D::getDirection ( )

inlineinherited

Get direction.

Returns

direction

Definition at line 118 of file JDirection3D.hh.

    {
      return static_cast<JDirection3D&>(*this);
    }

setDirection()

void JGEOMETRY3D::JDirection3D::setDirection ( const JDirection3D & dir )

inlineinherited

Set direction.

Parameters

dir

direction

Definition at line 129 of file JDirection3D.hh.

    {
      static_cast<JDirection3D&>(*this) = dir;
    }

operator JVector3D()

JGEOMETRY3D::JDirection3D::operator JVector3D ( ) const

inlineinherited

Type conversion operator.

Returns

position

Definition at line 151 of file JDirection3D.hh.

    {
      return JVector3D(getDX(), getDY(), getDZ());
    }

getDX()

double JGEOMETRY3D::JVersor3D::getDX ( ) const

inlineinherited

Get x direction.

Returns

x direction

Definition at line 95 of file JVersor3D.hh.

    {
      return __dx;
    }

getDY()

double JGEOMETRY3D::JVersor3D::getDY ( ) const

inlineinherited

Get y direction.

Returns

y direction

Definition at line 106 of file JVersor3D.hh.

    {
      return __dy;
    }

getDZ()

double JGEOMETRY3D::JVersor3D::getDZ ( ) const

inlineinherited

Get z direction.

Returns

z direction

Definition at line 117 of file JVersor3D.hh.

    {
      return __dz;
    }

getTheta()

double JGEOMETRY3D::JVersor3D::getTheta ( ) const

inlineinherited

Get theta angle.

Returns

theta angle [rad]

Definition at line 128 of file JVersor3D.hh.

    {
      if      (__dz > +1.0)
        return 0.0;
      else if (__dz < -1.0)
        return JMATH::PI;
      else
        return acos(__dz);
    }

getPhi()

double JGEOMETRY3D::JVersor3D::getPhi ( ) const

inlineinherited

Get phi angle.

Returns

phi angle [rad]

Definition at line 144 of file JVersor3D.hh.

    {
      return atan2(__dy, __dx);
    }

normalise()

JVersor3D & JGEOMETRY3D::JVersor3D::normalise ( )

inlineinherited

Normalise versor.

This operation may set the result to the unit z-vector.

Returns

this versor

Definition at line 192 of file JVersor3D.hh.

    {
      const double v = sqrt(getDX()*getDX() + getDY()*getDY() + getDZ()*getDZ());

      if (v != 0.0) {
        __dx /= v;
        __dy /= v;
        __dz /= v;
      }

      return *this;
    }

getHit()

const JHit & JTRIGGER::JHit::getHit ( ) const

inlineinherited

Get hit.

Returns

hit

Definition at line 99 of file JTrigger/JHit.hh.

    {
      return static_cast<const JHit&>(*this);
    }

getSlewing()

static bool JTRIGGER::JHit::getSlewing ( )

inlinestaticinherited

Get slewing option.

Returns

slewing option

Definition at line 110 of file JTrigger/JHit.hh.

    {
      return get_slewing();
    }

setSlewing()

static void JTRIGGER::JHit::setSlewing ( const bool slewing )

inlinestaticinherited

Set slewing option.

Parameters

slewing

slewing option

Definition at line 121 of file JTrigger/JHit.hh.

    {
      get_slewing() = slewing;
    }

operator double()

JTRIGGER::JHit::operator double ( ) const

inlineinherited

Type conversion.

Returns

time [ns]

Definition at line 132 of file JTrigger/JHit.hh.

    {
      return t;
    }

getT()

double JTRIGGER::JHit::getT ( ) const

inlineinherited

Get calibrated time of hit.

Returns

time [ns]

Definition at line 143 of file JTrigger/JHit.hh.

    {
      if (!getSlewing())
        return t;
      else
        return t - getRiseTime(tot);
    }

getToT()

double JTRIGGER::JHit::getToT ( ) const

inlineinherited

Get calibrated time over threshold of hit.

Returns

time over threshold [ns]

Definition at line 157 of file JTrigger/JHit.hh.

    {
      return tot;
    }

getT1()

double JTRIGGER::JHit::getT1 ( ) const

inlineinherited

Get leading edge of hit.

Note that no slewing correction is applied.

Returns

time [ns]

Definition at line 170 of file JTrigger/JHit.hh.

    {
      return t;
    }

getT2()

double JTRIGGER::JHit::getT2 ( ) const

inlineinherited

Get trailing edge of hit.

Note that no slewing correction is applied.

Returns

time [ns]

Definition at line 183 of file JTrigger/JHit.hh.

    {
      return t + tot;
    }

join()

void JTRIGGER::JHit::join ( const JHit & hit )

inlineinherited

Join hit.

Note that:

• leading edge of this hit is maintained;
• time over threshold of this hit is set to the difference between the trailing edge of given hit and leading edge of this hit;

Parameters

hit

hit

Definition at line 198 of file JTrigger/JHit.hh.

    {
      this->tot = hit.getT2() - this->getT1();
    }

get_slewing()

static bool & JTRIGGER::JHit::get_slewing ( )

inlinestaticprotectedinherited

Get reference to slewing parameter.

Returns

reference to slewing parameter

Definition at line 213 of file JTrigger/JHit.hh.

    {
      static bool slewing = true;

      return slewing;
    }

Member Data Documentation

compare

const struct JTRIGGER::JHitL0::compare JTRIGGER::JHitL0::compare

static

address

int KM3NETDAQ::JDAQPMTIdentifier::address

protectedinherited

Definition at line 141 of file JDAQPMTIdentifier.hh.

id

int KM3NETDAQ::JDAQModuleIdentifier::id

protectedinherited

Definition at line 112 of file JDAQModuleIdentifier.hh.

__x

double JGEOMETRY3D::JVector3D::__x

protectedinherited

Definition at line 310 of file JVector3D.hh.

__y

double JGEOMETRY3D::JVector3D::__y

protectedinherited

Definition at line 311 of file JVector3D.hh.

__z

double JGEOMETRY3D::JVector3D::__z

protectedinherited

Definition at line 312 of file JVector3D.hh.

__dx

double JGEOMETRY3D::JVersor3D::__dx

protectedinherited

Definition at line 206 of file JVersor3D.hh.

__dy

double JGEOMETRY3D::JVersor3D::__dy

protectedinherited

Definition at line 207 of file JVersor3D.hh.

__dz

double JGEOMETRY3D::JVersor3D::__dz

protectedinherited

Definition at line 208 of file JVersor3D.hh.

t

double JTRIGGER::JHit::t

protectedinherited

time of leading edge [ns]

Definition at line 204 of file JTrigger/JHit.hh.

tot

double JTRIGGER::JHit::tot

protectedinherited

time-over-threshold [ns]

Definition at line 205 of file JTrigger/JHit.hh.

---

The documentation for this class was generated from the following file:

• JHitL0.hh
