JTRIGGER::JHitL1 Class Reference

Data structure for L1 hit. More...

#include <JHitL1.hh>

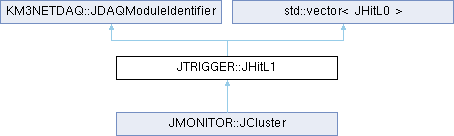

Inheritance diagram for JTRIGGER::JHitL1:

Classes
struct	compare
	Auxiliary data structure for sorting of hits. More...

Public Member Functions
	JHitL1 ()
	Default constructor.
	JHitL1 (const JDAQModuleIdentifier &id)
	Constructor.
	JHitL1 (const JHitL0 &hit)
	Constructor.
template<class T >
	JHitL1 (const JDAQModuleIdentifier &id, T __begin, T __end)
	Constructor.
const JHitL1 &	sort ()
	Sort L0 hits.
	operator const JPosition3D & () const
	Type conversion operator.
const JPosition3D &	getPosition () const
	Get position.
double	getX () const
	Get x position.
double	getY () const
	Get y position.
double	getZ () const
	Get z position.
double	getT (const unsigned int i) const
	Get time of hit i.
double	getT () const
	Get time.
double	getToT () const
	Get overall time over threshold.
int	getN () const
	Get count.
double	getW () const
	Get weight.
JHitL1 &	add (const JVector3D &pos)
	Add position.
JHitL1 &	sub (const JVector3D &pos)
	Subtract position.
JHitL1 &	rotate (const JRotation3D &R)
	Rotate hit.
JHitL1 &	rotate_back (const JRotation3D &R)
	Rotate back hit.
void	transform (const JRotation3D &R, const JVector3D &pos)
	Transform hit.
void	transform_back (const JRotation3D &R, const JVector3D &pos)
	Transform back hit.
const JDAQModuleIdentifier &	getModuleIdentifier () const
	Get Module identifier.
void	setModuleIdentifier (const JDAQModuleIdentifier &module)
	Set Module identifier.
int	getModuleID () const
	Get module identifier.
	ClassDefNV (JDAQModuleIdentifier, 1)

Static Public Attributes
static const struct JTRIGGER::JHitL1::compare	compare

Protected Attributes
int	id

Detailed Description

Data structure for L1 hit.

Definition at line 34 of file JHitL1.hh.

Constructor & Destructor Documentation

JHitL1() [1/4]

JTRIGGER::JHitL1::JHitL1 ( )

inline

Default constructor.

Definition at line 42 of file JHitL1.hh.

             :
      JDAQModuleIdentifier(),
      std::vector<JHitL0>()
    {}

JHitL1() [2/4]

JTRIGGER::JHitL1::JHitL1 ( const JDAQModuleIdentifier & id )

inline

Constructor.

Parameters

id	module identifier

Definition at line 53 of file JHitL1.hh.

                                           :
      JDAQModuleIdentifier(id),
      std::vector<JHitL0>()
    {}

JHitL1() [3/4]

JTRIGGER::JHitL1::JHitL1 ( const JHitL0 & hit )

inline

Constructor.

Parameters

hit

hit

Definition at line 64 of file JHitL1.hh.

                              :
      JDAQModuleIdentifier(hit.getModuleIdentifier()),
      std::vector<JHitL0>(1, hit)
    {}

JHitL1() [4/4]

template<class T >

JTRIGGER::JHitL1::JHitL1 ( const JDAQModuleIdentifier & id, T __begin, T __end )

inline

Constructor.

Parameters

id	module identifier
__begin	begin of L0 hits
__end	end of L0 hits

Definition at line 78 of file JHitL1.hh.

                    :
      JDAQModuleIdentifier(id)
    {
      for (T i = __begin; i != __end; ++i) {
        this->push_back(*i);
      }

      this->sort();
    }

Member Function Documentation

sort()

const JHitL1 & JTRIGGER::JHitL1::sort ( )

inline

Sort L0 hits.

Following the default sort operation, the time slewing implemented in method getT() is applicaple.

Returns

this hit

Definition at line 97 of file JHitL1.hh.

    {
      std::sort(this->begin(), this->end(), std::less<JHit>());

      return *this;
    }

operator const JPosition3D &()

JTRIGGER::JHitL1::operator const JPosition3D & ( ) const

inline

Type conversion operator.

Returns

position

Definition at line 110 of file JHitL1.hh.

    {
      return this->getPosition();
    }

getPosition()

const JPosition3D & JTRIGGER::JHitL1::getPosition ( ) const

inline

Get position.

Returns

position

Definition at line 121 of file JHitL1.hh.

    {
      return this->begin()->getPosition();
    }

getX()

double JTRIGGER::JHitL1::getX ( ) const

inline

Get x position.

The x position is taken from the first L0 hit.

Returns

x position [m]

Definition at line 133 of file JHitL1.hh.

    {
      return this->begin()->getX();
    }

getY()

double JTRIGGER::JHitL1::getY ( ) const

inline

Get y position.

The y position is taken from the first L0 hit.

Returns

y position [m]

Definition at line 145 of file JHitL1.hh.

    {
      return this->begin()->getY();
    }

getZ()

double JTRIGGER::JHitL1::getZ ( ) const

inline

Get z position.

The z position is taken from the first L0 hit.

Returns

z position [m]

Definition at line 157 of file JHitL1.hh.

    {
      return this->begin()->getZ();
    }

getT() [1/2]

double JTRIGGER::JHitL1::getT ( const unsigned int i ) const

inline

Get time of hit i.

Note that the time is corrected for the average time slewing.

Parameters

i

index

Returns

time [ns]

Definition at line 170 of file JHitL1.hh.

    {
      static const double t0 = 1.29;  // [ns]

      return at(i).getT() - t0;
    }

getT() [2/2]

double JTRIGGER::JHitL1::getT ( ) const

inline

Get time.

The time is taken from the first L0 hit corrected for time slewing.

Returns

time [ns]

Definition at line 184 of file JHitL1.hh.

    {
      static std::vector<double> t0;

      if (t0.empty()) {

        t0.push_back(+0.00);
        t0.push_back(+0.39);
        t0.push_back(+0.21);
        t0.push_back(-0.59);
        t0.push_back(-1.15);
        t0.push_back(-1.59);
        t0.push_back(-1.97);
        t0.push_back(-2.30);
        t0.push_back(-2.56);
        t0.push_back(-2.89);
        t0.push_back(-3.12);
        t0.push_back(-3.24);
        t0.push_back(-3.56);
        t0.push_back(-3.69);
        t0.push_back(-4.00);
        t0.push_back(-4.10);
        t0.push_back(-4.16);
        t0.push_back(-4.49);
        t0.push_back(-4.71);
        t0.push_back(-4.77);
        t0.push_back(-4.81);
        t0.push_back(-4.87);
        t0.push_back(-4.88);
        t0.push_back(-4.83);
        t0.push_back(-5.21);
        t0.push_back(-5.06);
        t0.push_back(-5.27);
        t0.push_back(-5.18);
        t0.push_back(-5.24);
        t0.push_back(-5.79);
        t0.push_back(-6.78);
        t0.push_back(-6.24);
      }

      if (this->size() >= t0.size())
        return this->begin()->getT() - t0.back();
      else
        return this->begin()->getT() - t0[this->size()];
    }

getToT()

double JTRIGGER::JHitL1::getToT ( ) const

inline

Get overall time over threshold.

Returns

time over threshold [ns]

Definition at line 236 of file JHitL1.hh.

    {
      return JHit(this->begin(), this->end()).getToT();
    }

getN()

int JTRIGGER::JHitL1::getN ( ) const

inline

Get count.

Returns

count

Definition at line 247 of file JHitL1.hh.

    {
      return this->size();
    }

getW()

double JTRIGGER::JHitL1::getW ( ) const

inline

Get weight.

The weight is equal to the number of L0 hits.

Returns

weight

Definition at line 259 of file JHitL1.hh.

    {
      return this->size();
    }

add()

JHitL1 & JTRIGGER::JHitL1::add ( const JVector3D & pos )

inline

Add position.

Parameters

pos

position

Returns

this hit

Definition at line 271 of file JHitL1.hh.

    {
      for (iterator i = this->begin(); i != this->end(); ++i) {
        i->add(pos);
      }

      return *this;
    }

sub()

JHitL1 & JTRIGGER::JHitL1::sub ( const JVector3D & pos )

inline

Subtract position.

Parameters

pos

position

Returns

this hit

Definition at line 287 of file JHitL1.hh.

    {
      for (iterator i = this->begin(); i != this->end(); ++i) {
        i->sub(pos);
      }

      return *this;
    }

rotate()

JHitL1 & JTRIGGER::JHitL1::rotate ( const JRotation3D & R )

inline

Rotate hit.

Parameters

R	rotation matrix

Returns

this hit

Definition at line 303 of file JHitL1.hh.

    {
      for (iterator i = this->begin(); i != this->end(); ++i) {
        i->rotate(R);
      }

      return *this;
    }

rotate_back()

JHitL1 & JTRIGGER::JHitL1::rotate_back ( const JRotation3D & R )

inline

Rotate back hit.

Parameters

R	rotation matrix

Returns

this hit

Definition at line 319 of file JHitL1.hh.

    {
      for (iterator i = this->begin(); i != this->end(); ++i) {
        i->rotate_back(R);
      }

      return *this;
    }

transform()

void JTRIGGER::JHitL1::transform ( const JRotation3D & R, const JVector3D & pos )

inline

Transform hit.

Parameters

R	rotation matrix
pos	position of origin (after rotation)

Definition at line 335 of file JHitL1.hh.

    {
      for (iterator i = this->begin(); i != this->end(); ++i) {
        i->transform(R, pos);
      }
    }

transform_back()

void JTRIGGER::JHitL1::transform_back ( const JRotation3D & R, const JVector3D & pos )

inline

Transform back hit.

Parameters

R	rotation matrix
pos	position of origin (before rotation)

Definition at line 350 of file JHitL1.hh.

    {
      for (iterator i = this->begin(); i != this->end(); ++i) {
        i->transform_back(R, pos);
      }
    }

getModuleIdentifier()

const JDAQModuleIdentifier & KM3NETDAQ::JDAQModuleIdentifier::getModuleIdentifier ( ) const

inlineinherited

Get Module identifier.

Returns

Module identifier

Definition at line 50 of file JDAQModuleIdentifier.hh.

    {
      return *this;
    }

setModuleIdentifier()

void KM3NETDAQ::JDAQModuleIdentifier::setModuleIdentifier ( const JDAQModuleIdentifier & module )

inlineinherited

Set Module identifier.

Parameters

module

Module identifier

Definition at line 61 of file JDAQModuleIdentifier.hh.

    {
      *this = module;
    }

getModuleID()

int KM3NETDAQ::JDAQModuleIdentifier::getModuleID ( ) const

inlineinherited

Get module identifier.

Returns

module identifier

Definition at line 72 of file JDAQModuleIdentifier.hh.

    {
      return id;
    }

ClassDefNV()

KM3NETDAQ::JDAQModuleIdentifier::ClassDefNV ( JDAQModuleIdentifier , 1  )

inherited

Member Data Documentation

compare

const struct JTRIGGER::JHitL1::compare JTRIGGER::JHitL1::compare

static

id

int KM3NETDAQ::JDAQModuleIdentifier::id

protectedinherited

Definition at line 112 of file JDAQModuleIdentifier.hh.

---

The documentation for this class was generated from the following file:

• JHitL1.hh
